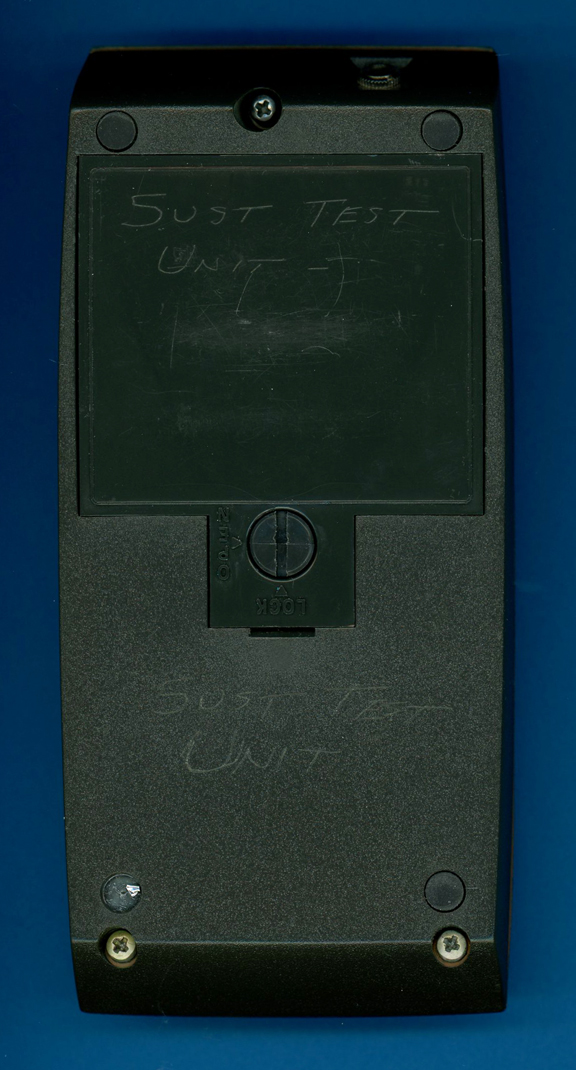

This Texas Instruments TI-150 Prototype was manufactured
in September 1974
|

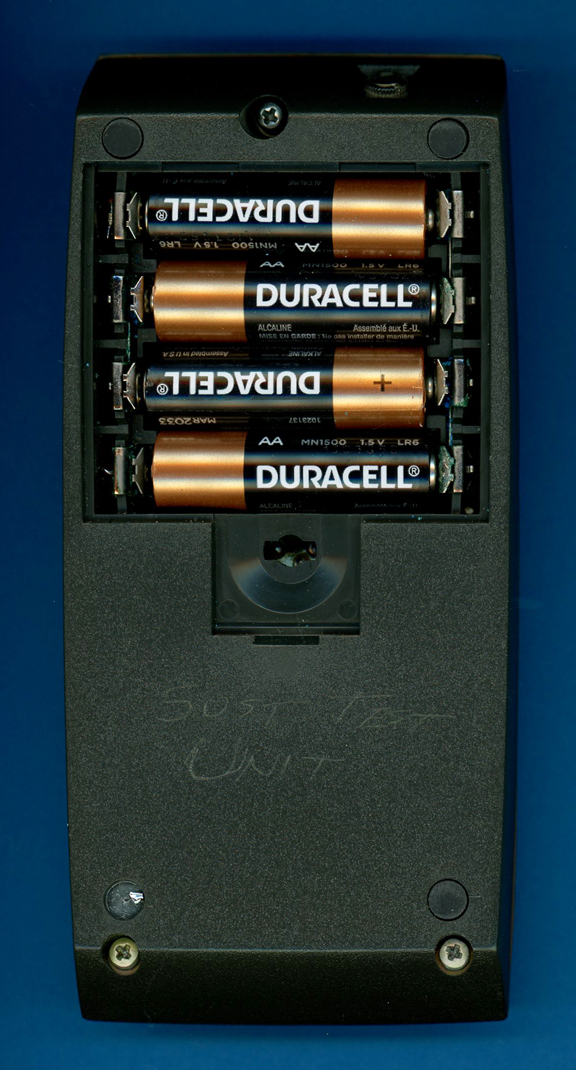

| The battery
compartment of the TI-150 with 4 AA sized batteries installed.
|

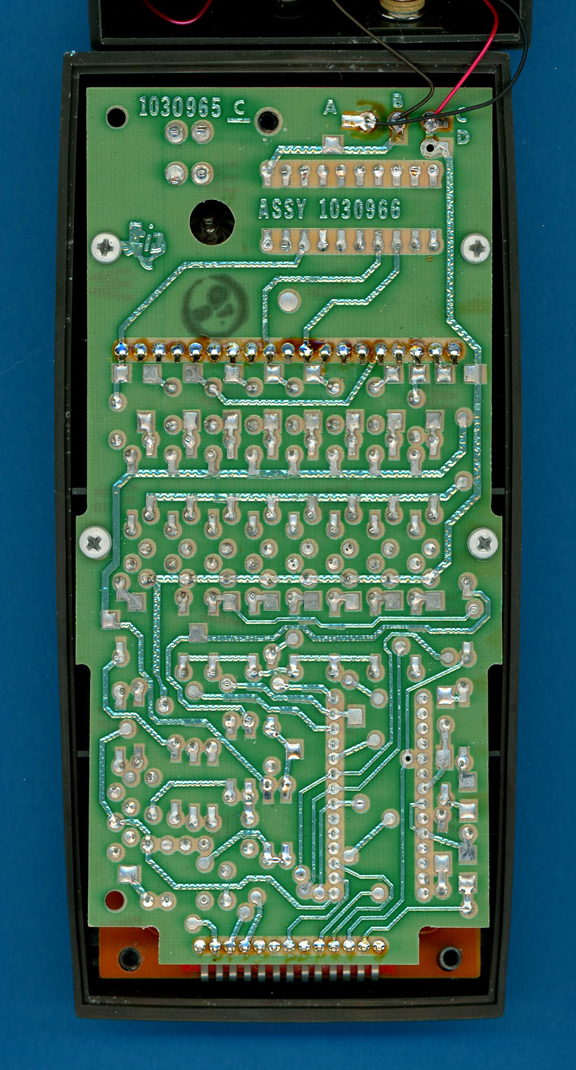

| The backside
of the main printed circuit board
(PCB) of the TI-150 Prototype.
|

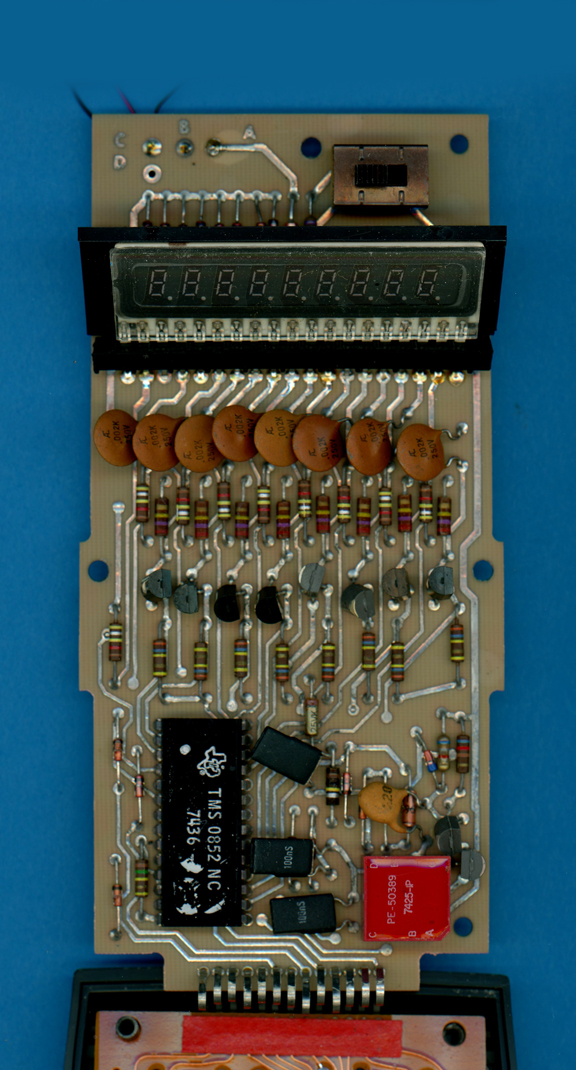

| The main printed circuit board
(PCB) of the TI-150 Prototype is centered around a TMS0852NC single-chip calculator circuit.
|

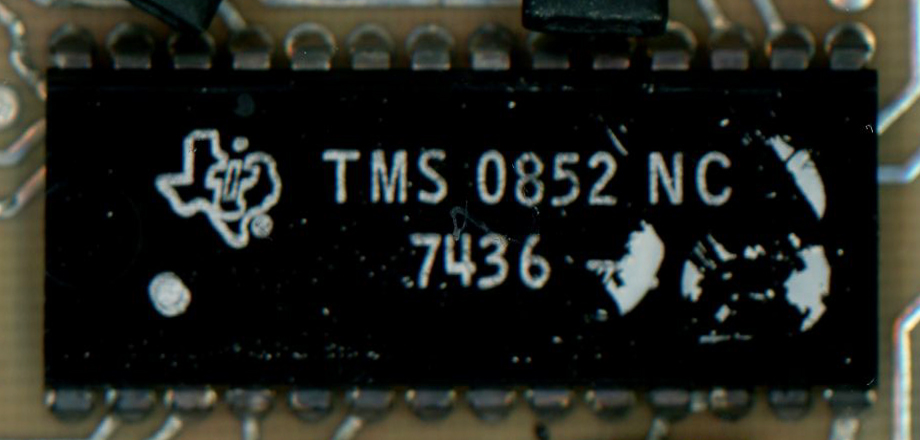

| Close-up view of the
TMS0852NC single-chip calculator circuit.
|
