Additional Pictures

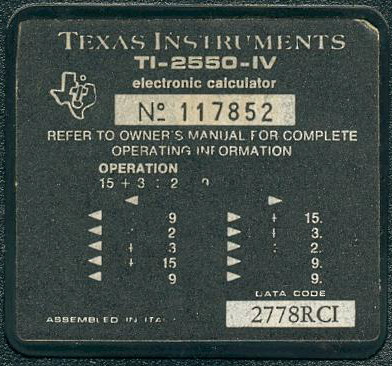

| This TI-2550-IV was manufactured
in February 1979 by Texas Instruments in Italy (week 08 year 1979).
|
| The printed circuit board (PCB) of the
TI-2550-IV shows just the VF-Display and keyboard.
|
| The backside
of the PCB sports a clean layout but hosts three different Integrated Circuits.
|
| The three Integrated Circuits (ICs): TMC1981, TMC0999 and BP51C.
|
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, June 3, 2009. No reprints without written permission.
