Additional Pictures

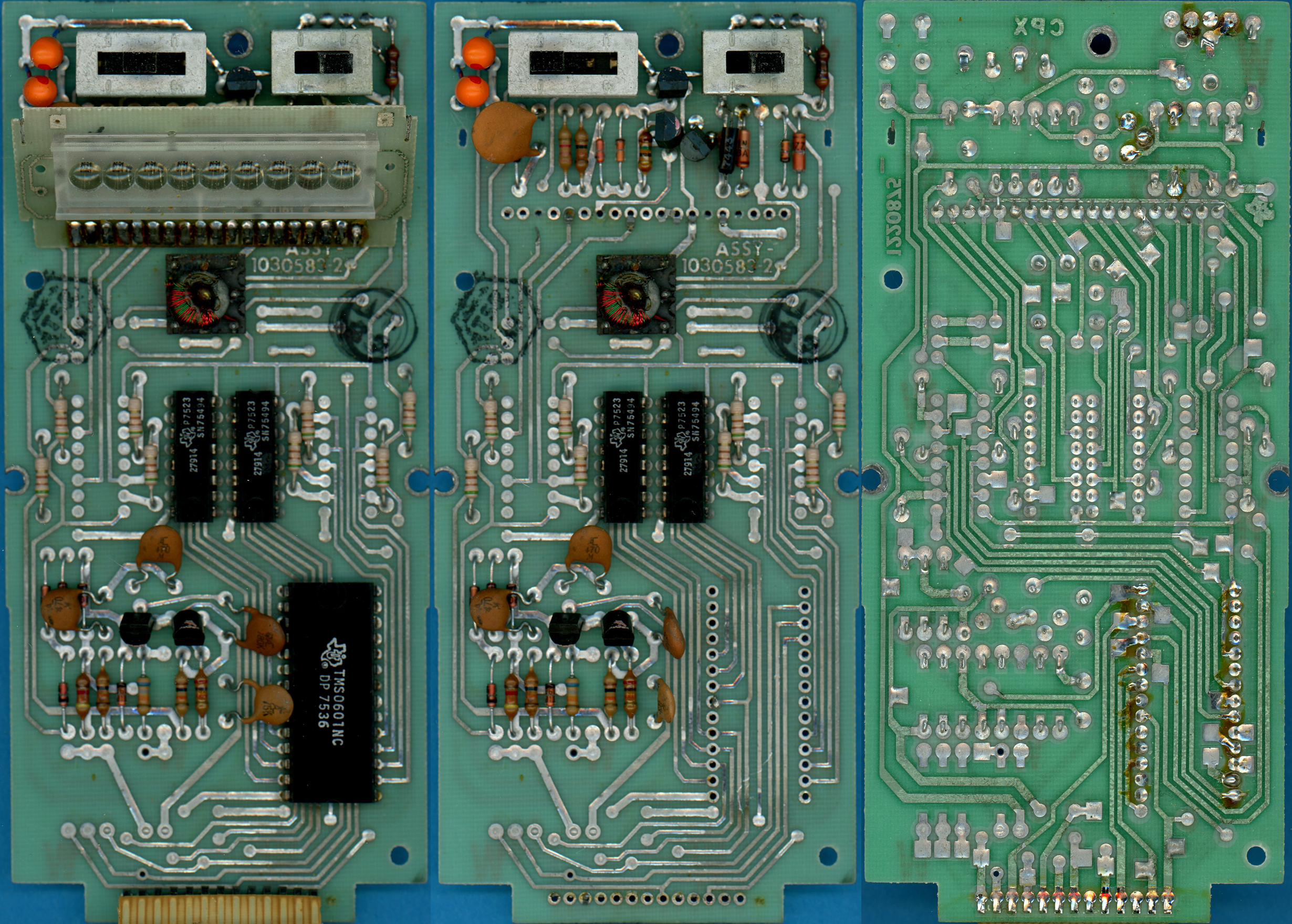

| The printed circuit board (PCB) of a
TI-2550 calculator manufactured in October 1975 with its
(mirrored) backside.
|

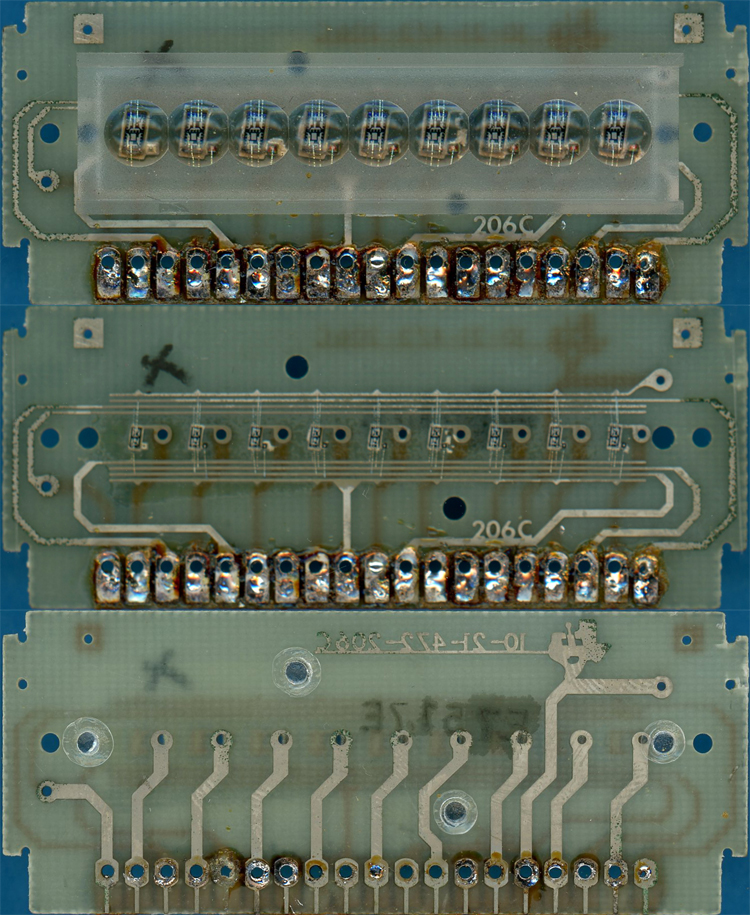

The
Display
PCB of a TI-2550 calculator manufactured in October 1975 with its
(mirrored) backside. |

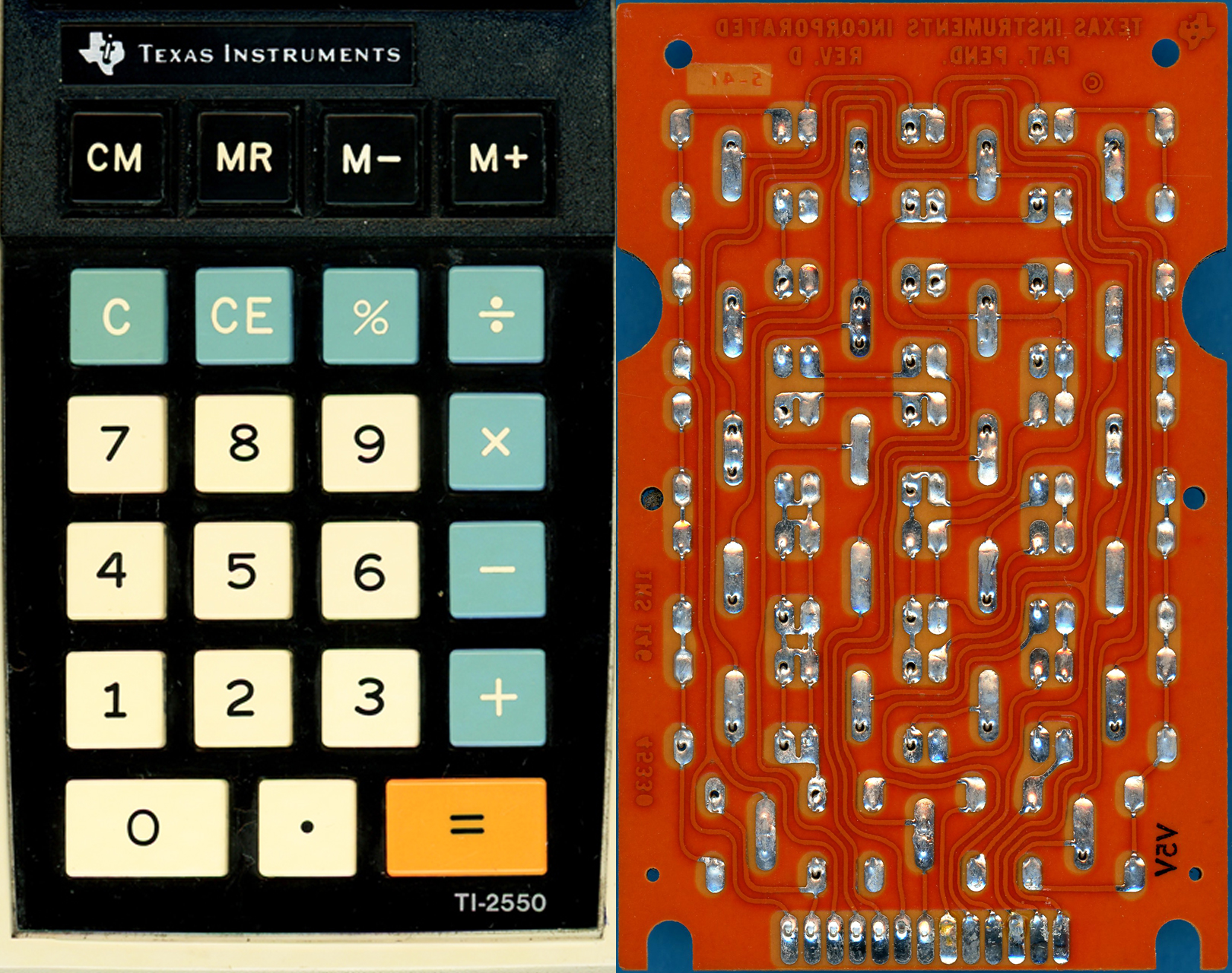

The Keyboard
PCB of a TI-2550 calculator manufactured in October 1975 with its
(mirrored) backside. |
