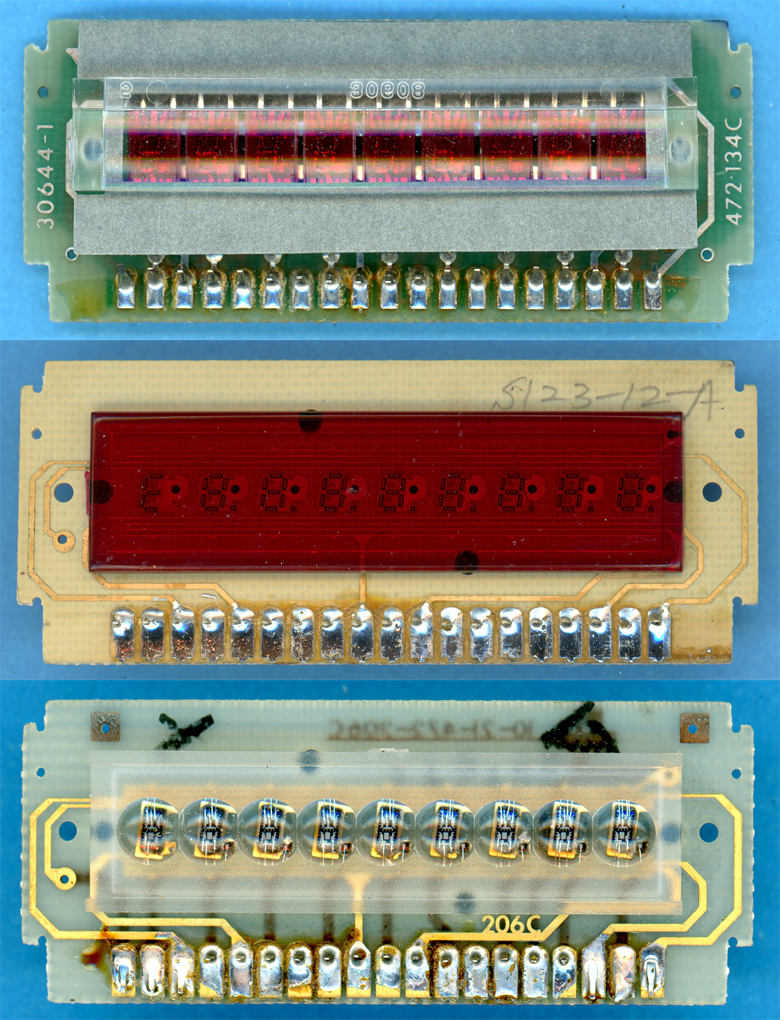

| The
three different Display assemblies used with the
TI-2550 and its siblings between February 1974 and October 1975. DIS134C (top), DIS206A (middle), DIS206C (bottom).  |
|

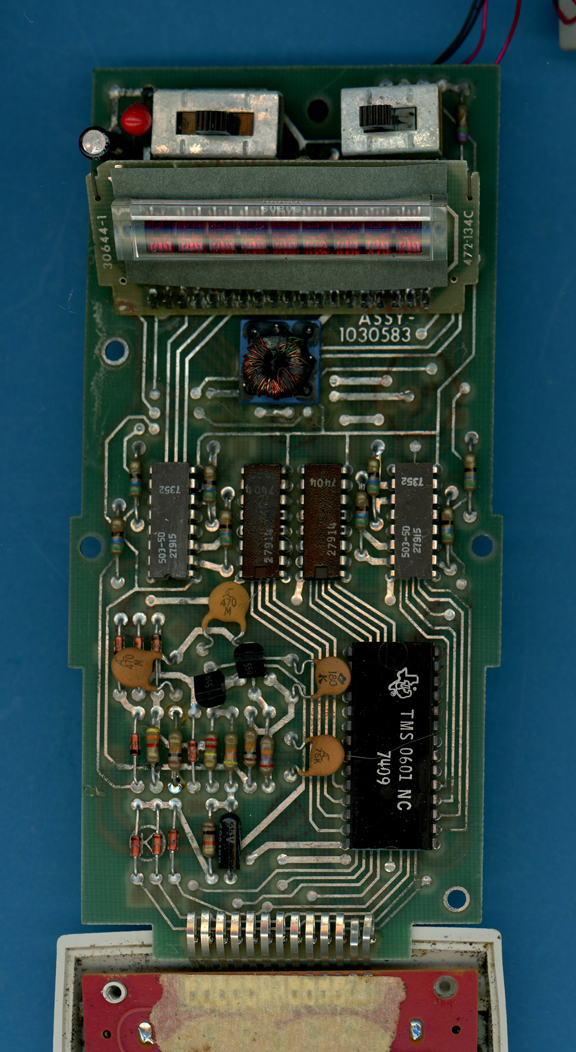

| The printed circuit board of a
TI-2550 Version 1 (Display 1) with Display assembly DIS134C and 9 LED-modules.
|

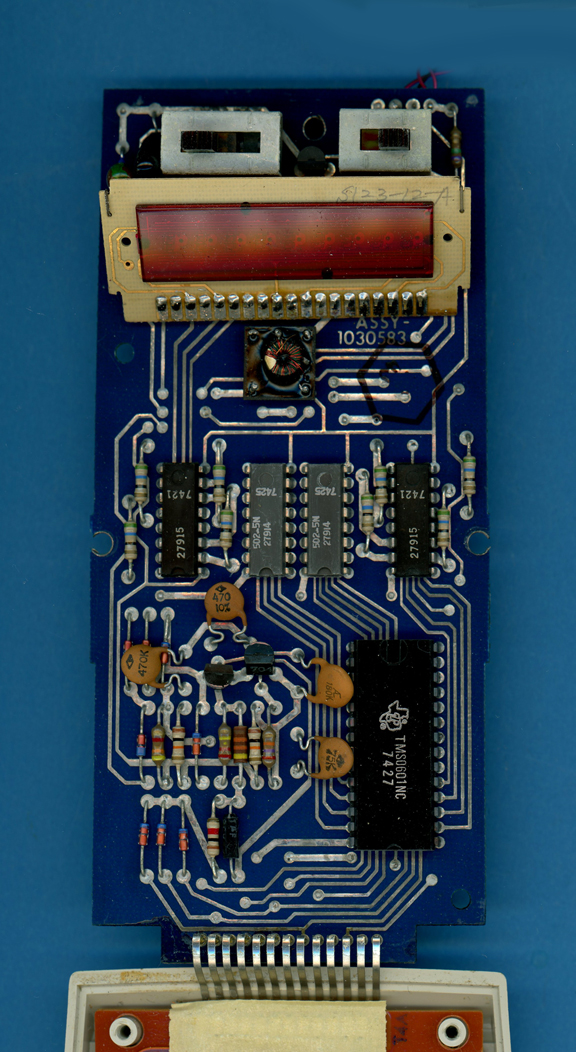

The printed circuit board of a
TI-2550 Version 1 (Display 2) with Display DIS206A, a Bowmar Optostic Display.
|

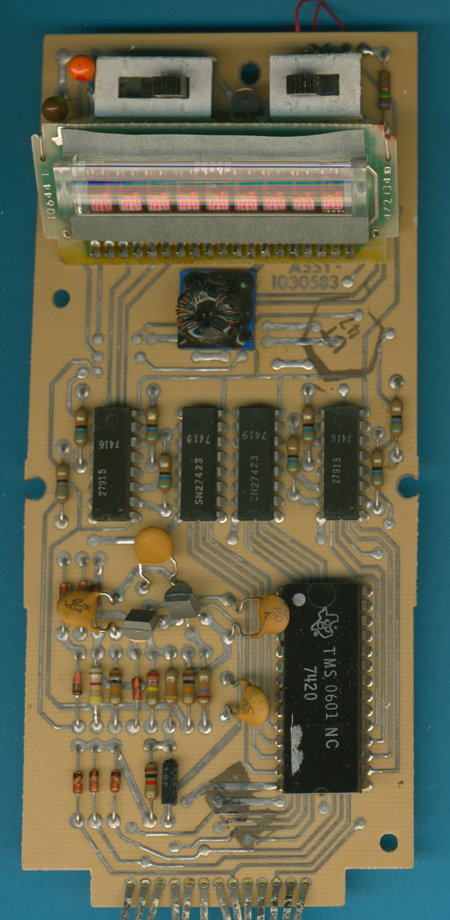

| The printed circuit board of a
TI-2550 Version 1 (Display 3) with Display DIS206C using Chip-on-Board technology.
|

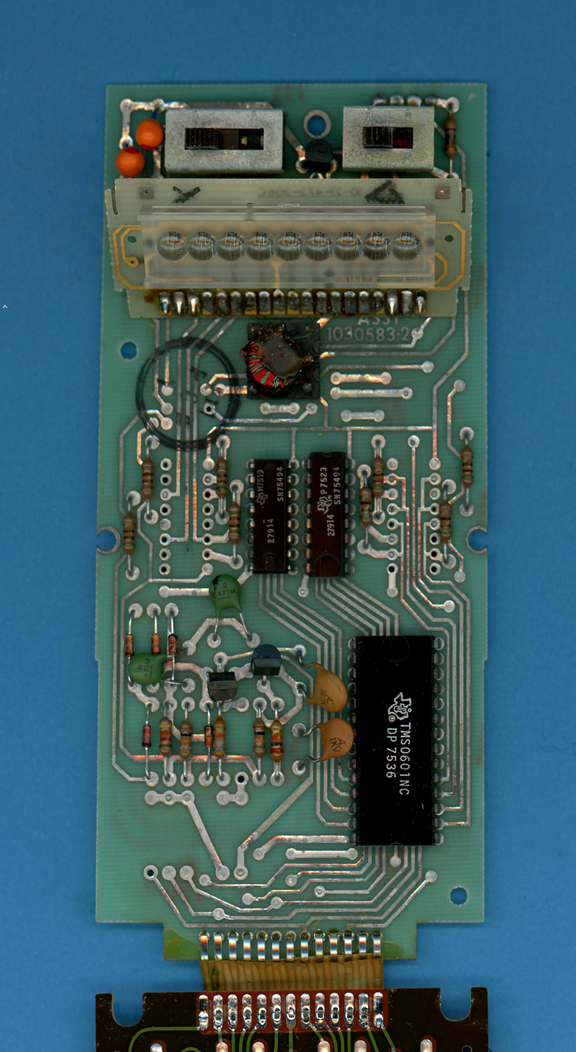

The printed circuit board of a
TI-2550 Version 2 (Display 3) with Display DIS206C using Chip-on-Board technology.
|
