Additional Pictures



This Exactra 23 was manufactured in November 1974 by Texas Instruments
(Date code 484 wk 48  yr 1974).

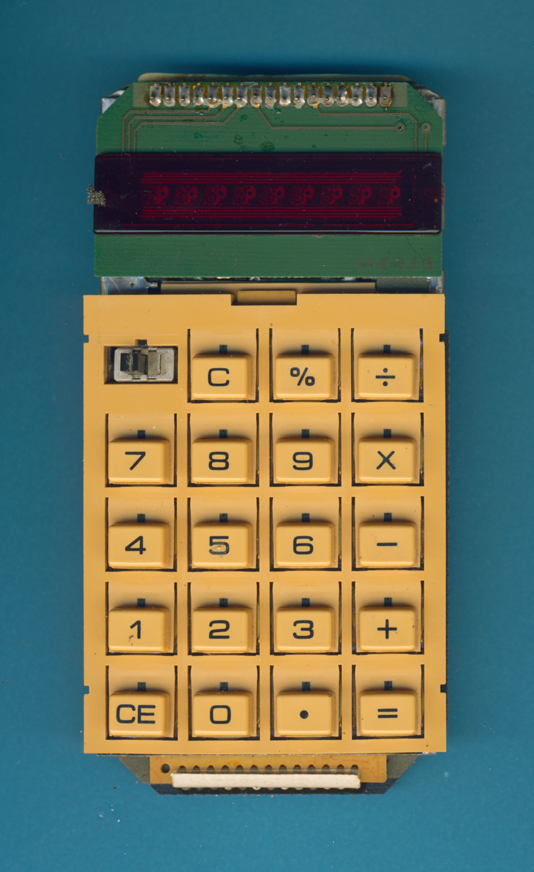

The Exactra 23 with its 8-digit Bowmar Opto-Stick display and costly keyboard.

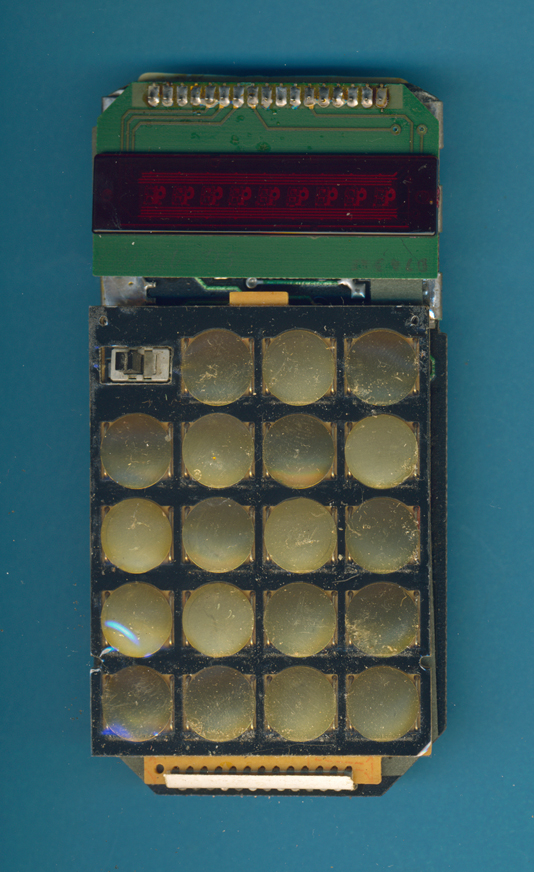

The membrane switches of the keyboard.

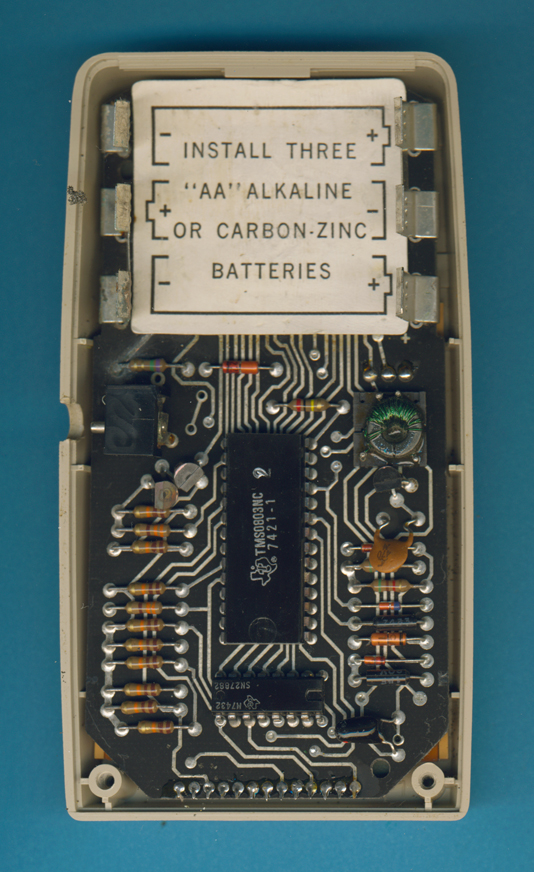

The double-sided printed circuit board (PCB) of the Exactra 23.

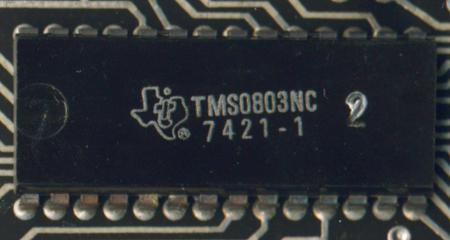

Close-up of the TMS0803 single-chip calculator circuit.
