Additional Pictures



The sales box of a TI-1606 calculator sold in 1985 in Germany.

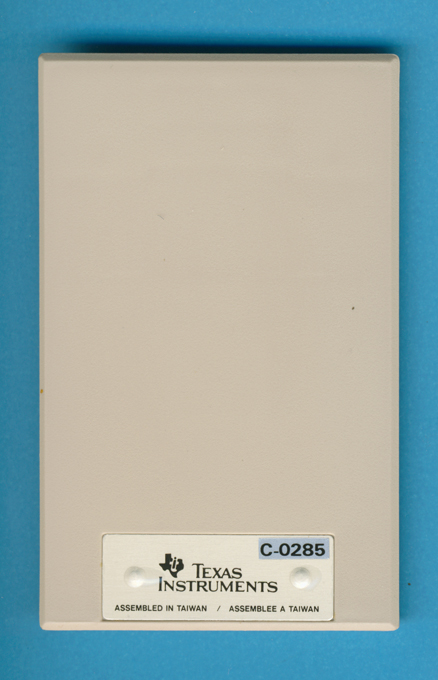

This TI-1606 calculator was manufactured in February 1985 by
Cal-Comp Electronics in Taiwan (Date code C-0285 mth 02 yr 1985).

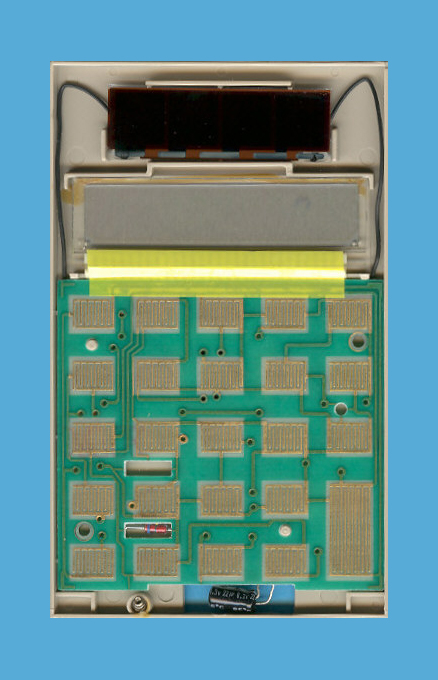

The TI-1606 partially dismantled

The printed circuit board (PCB) of the TI-1606 is centered around
an unknown single-chip calculator circuit.

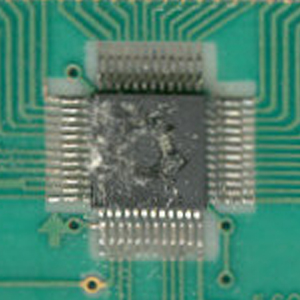

Close-up view of the unknown single-chip calculator circuit.

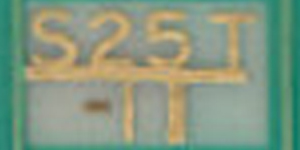

Close-up view of the PCB-Mark of the TI-1606.




horizontal rule

If you have additions to the above article please email: joerg@datamath.org.

Joerg Woerner, December 19, 2006. No reprints without written permission.
