Additional Pictures

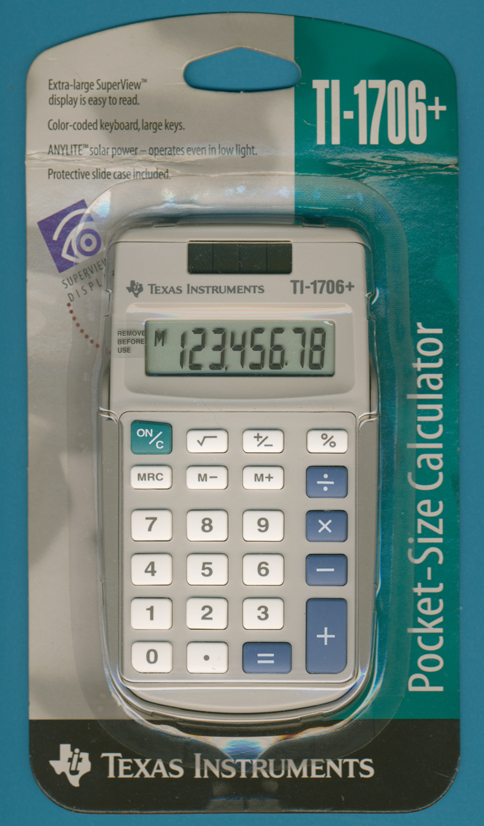

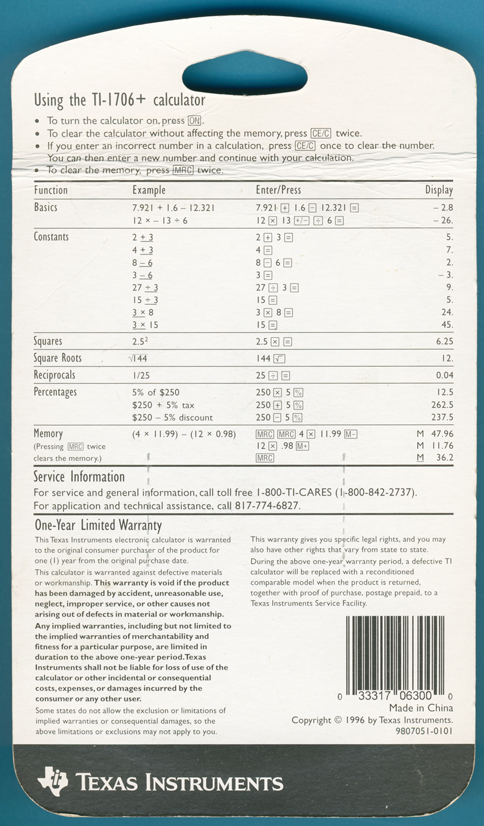

The
sales box of the TI-1706+ sold
around 1996 in the US.
|

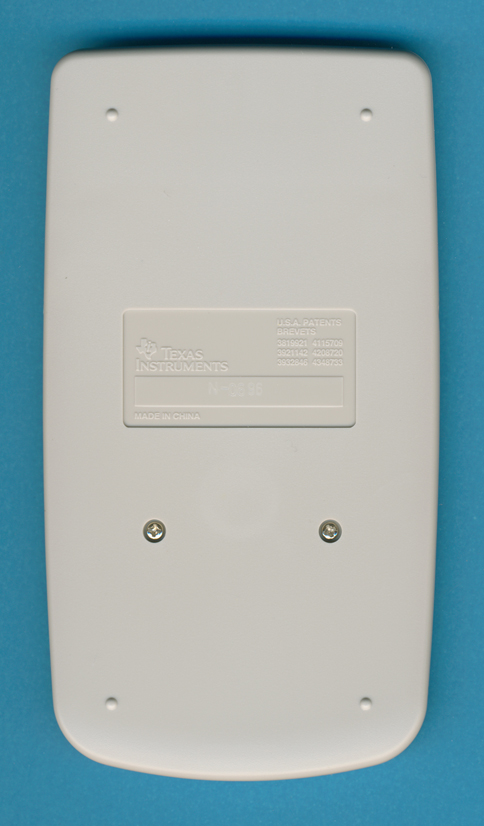

This TI-1706+ was manufactured
in June 1996 by
|

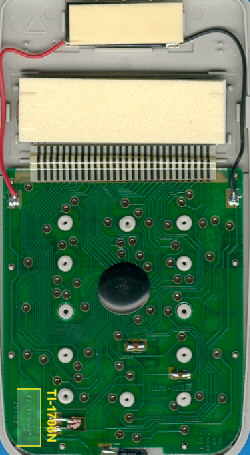

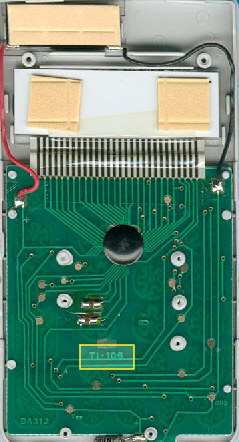

The printed circuit board
(PCB) of the TI-1706+ hides its single-chip calculator circuit under a small epoxy blob. |

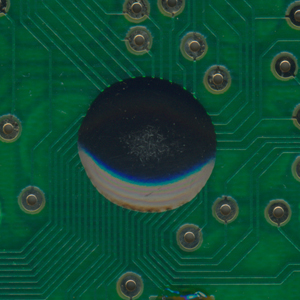

Close-up view of the unknown single-chip calculator
circuit. |

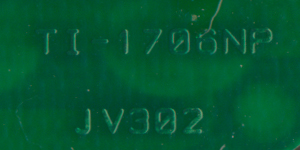

Close-up view of the PCB-Marks
of the TI-1706+. |
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, February 11, 2019. No reprints without written permission.
