Additional Pictures
| The box
of the TI-1788 II shows the calculator in its clock mode.
|
|

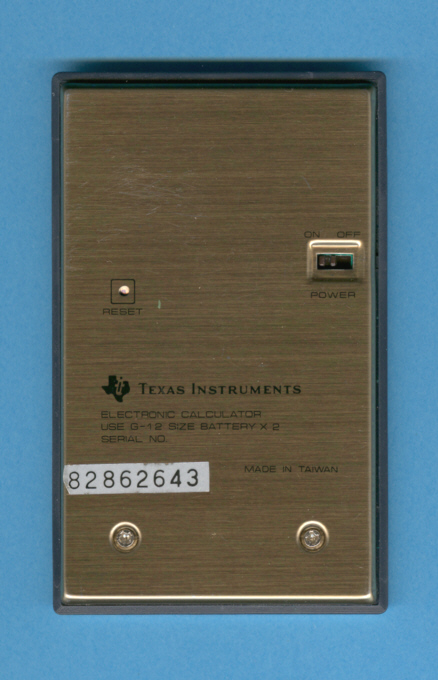

| Please notice the unusual
position of the ON-/OFF-switch of the TI-1788 II.
|
|

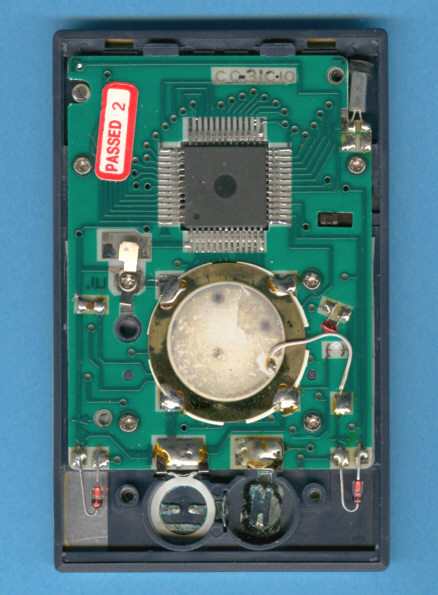

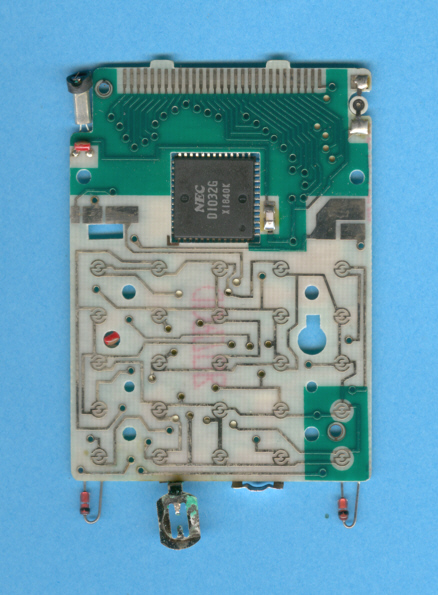

| The printed circuit board
(PCB) of the TI-1788 II is centered around a NEC uPD1032G single-chip calculator circuit.
|
|

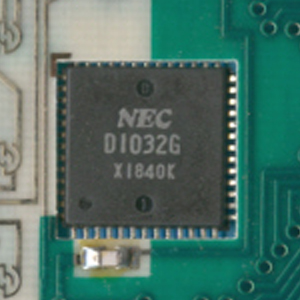

Close-up
view of the NEC uPD1032G single-chip calculator
circuit. |

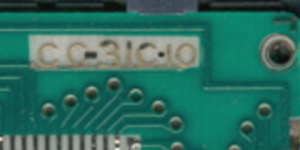

Close-up view of the
PCB-Mark of a TI-1788 II. |
