Additional Pictures

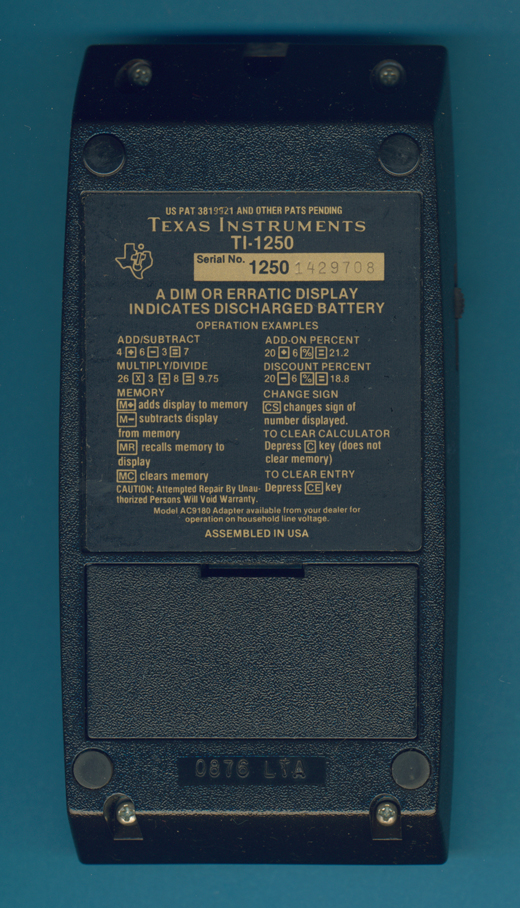

This TI-1250 Version 2 Cost Reduction was manufactured in February 1976 by
Texas Instruments in Lubbock, TX (Date code 0876 LTA » week 08 year 1976).

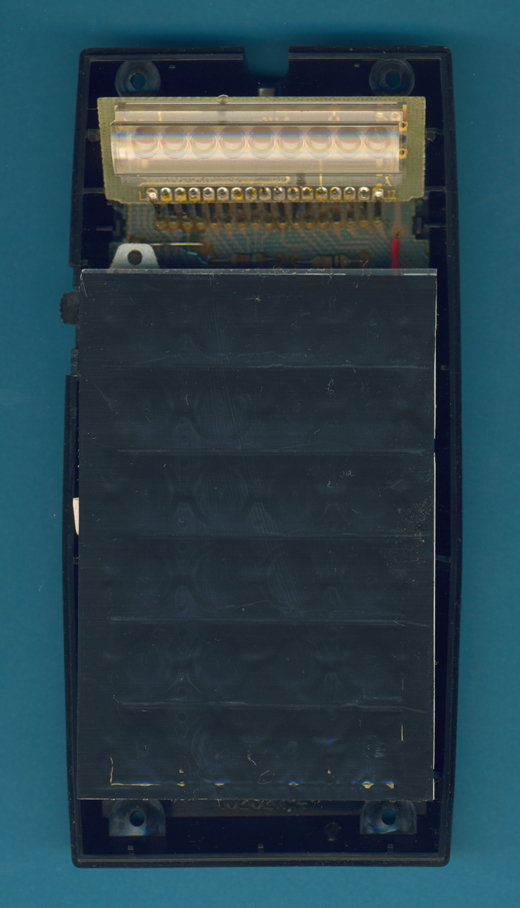

The TI-1250 Version 2 Cost Reduction manufactured in February 1976 in Lubbock, TX
with the front part of its housing removed.

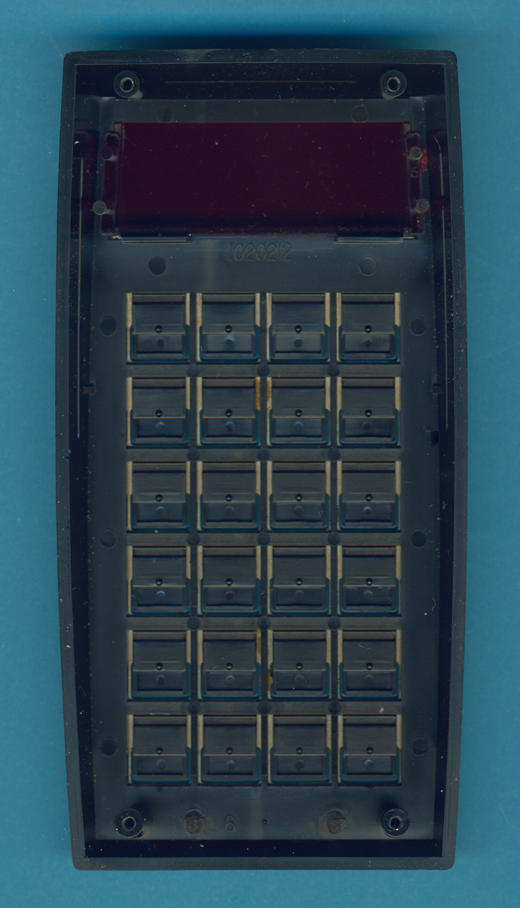

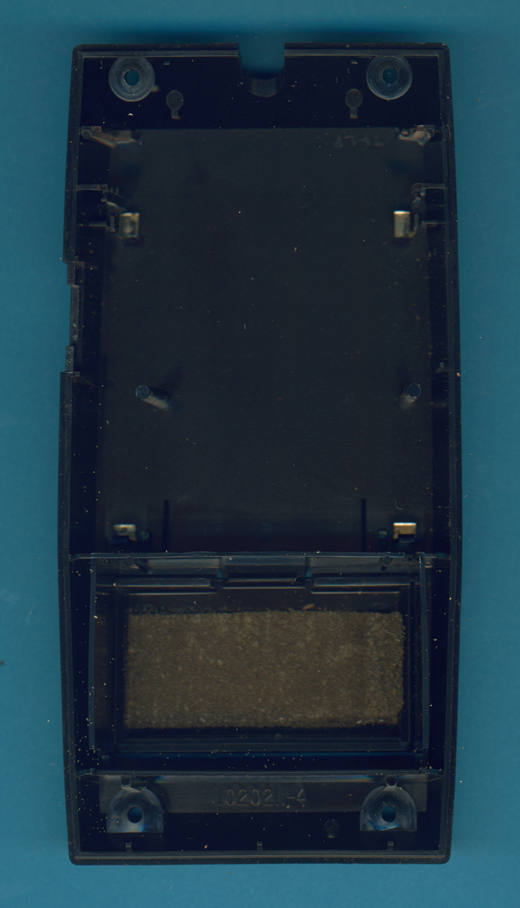

The two housing shells of the TI-1200 and TI-1250 family.



The printed circuit board (PCB) Type 2 CR of the featured TI-1250
is centered around a TMS0952 single-chip calculator circuit but misses 4 resistors.

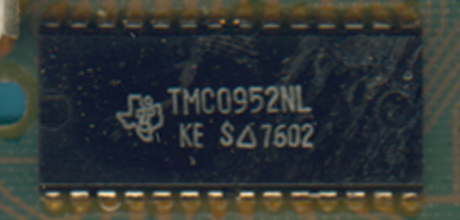

Close-up view of the TMS0952 packaged in a
28-pin DIP (Dual In-line Package).
