Additional Pictures



The sales box of the TI-1255 sold around 1977 in the US.

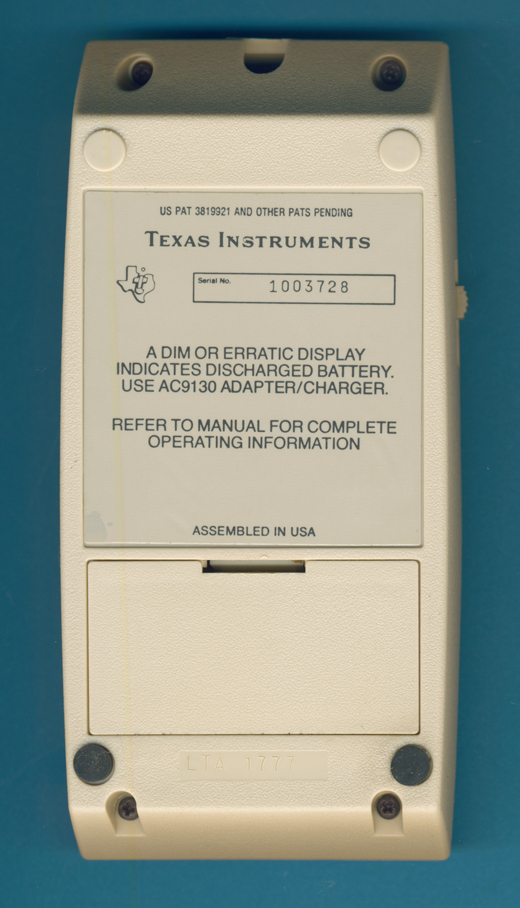

This TI-1255 was manufactured in April 1977 by
Texas Instruments in Lubbock, TX (Date code LTA 1777 » wk 17 yr 1977).

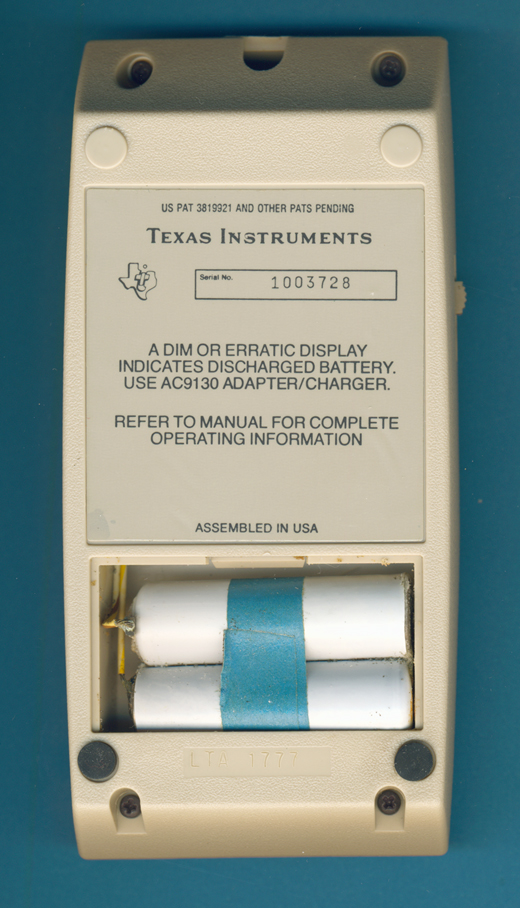

The TI-1255 is powered by two rechargeable NiCd batteries.

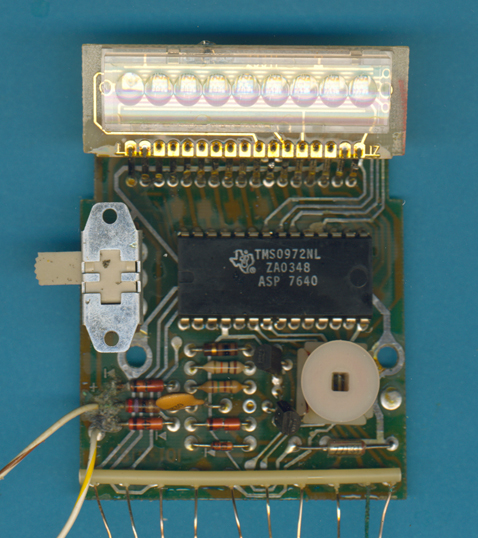

The printed circuit board (PCB) of the TI-1255 makes use of the
TMS0972 calculator chip and two rechargeable batteries.

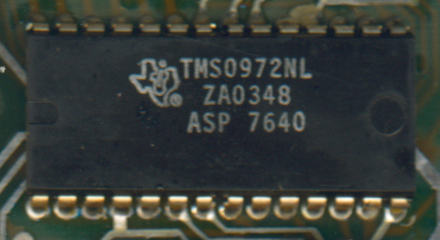

Close-up view of the TMS0972 single-chip calculator circuit.

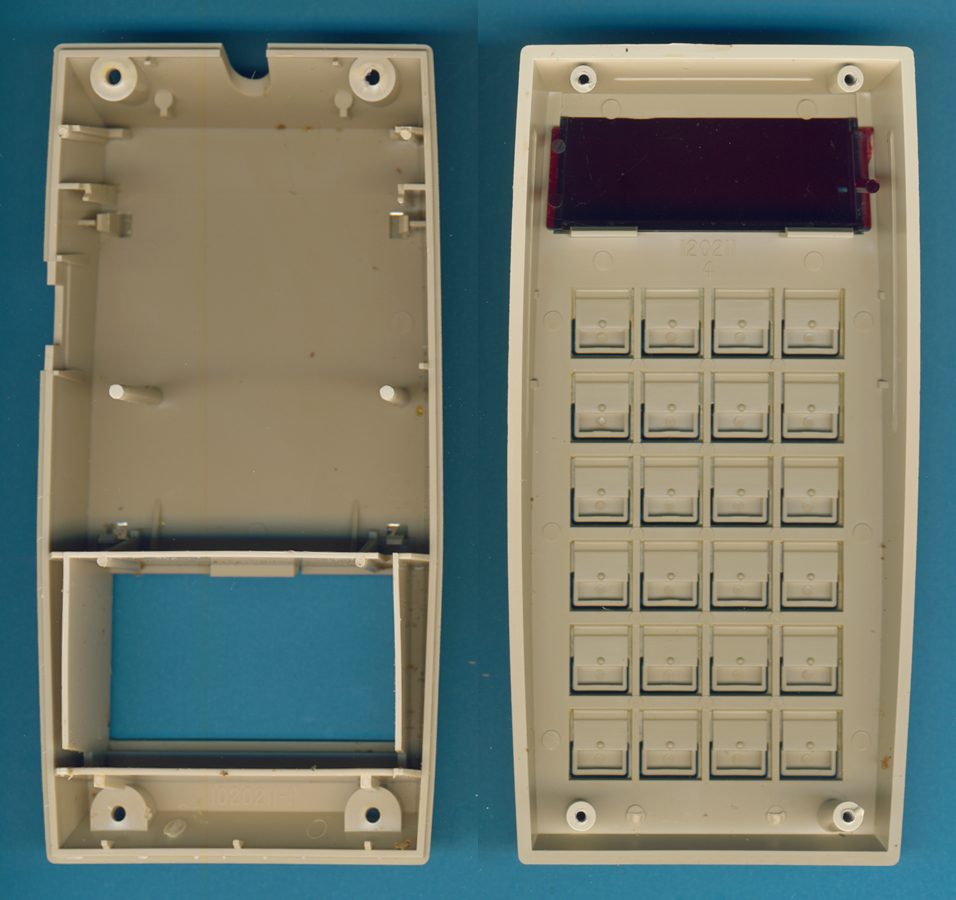

The two plastic injection molded parts (w/o battery cover) of the TI-1255.


horizontal rule

If you have additions to the above article please email: joerg@datamath.org.

© Joerg Woerner, September 30, 2020. No reprints without written permission.
