Additional Pictures


This TI-1270 was manufactured in July 1976 by
Texas Instruments in Lubbock, TX (Date code 3076 LTA »week 30 year 1976).

The printed circuit board (PCB) of the TI-1270
with just the TMS0974 single-chip calculator circuit.

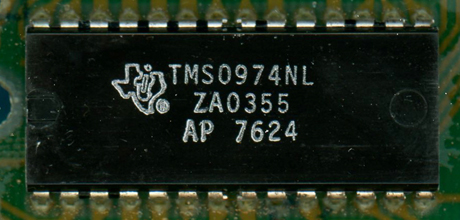

Close-up view of a TMS0974 packaged in a
28-pin DIP (Dual In-line Package).
