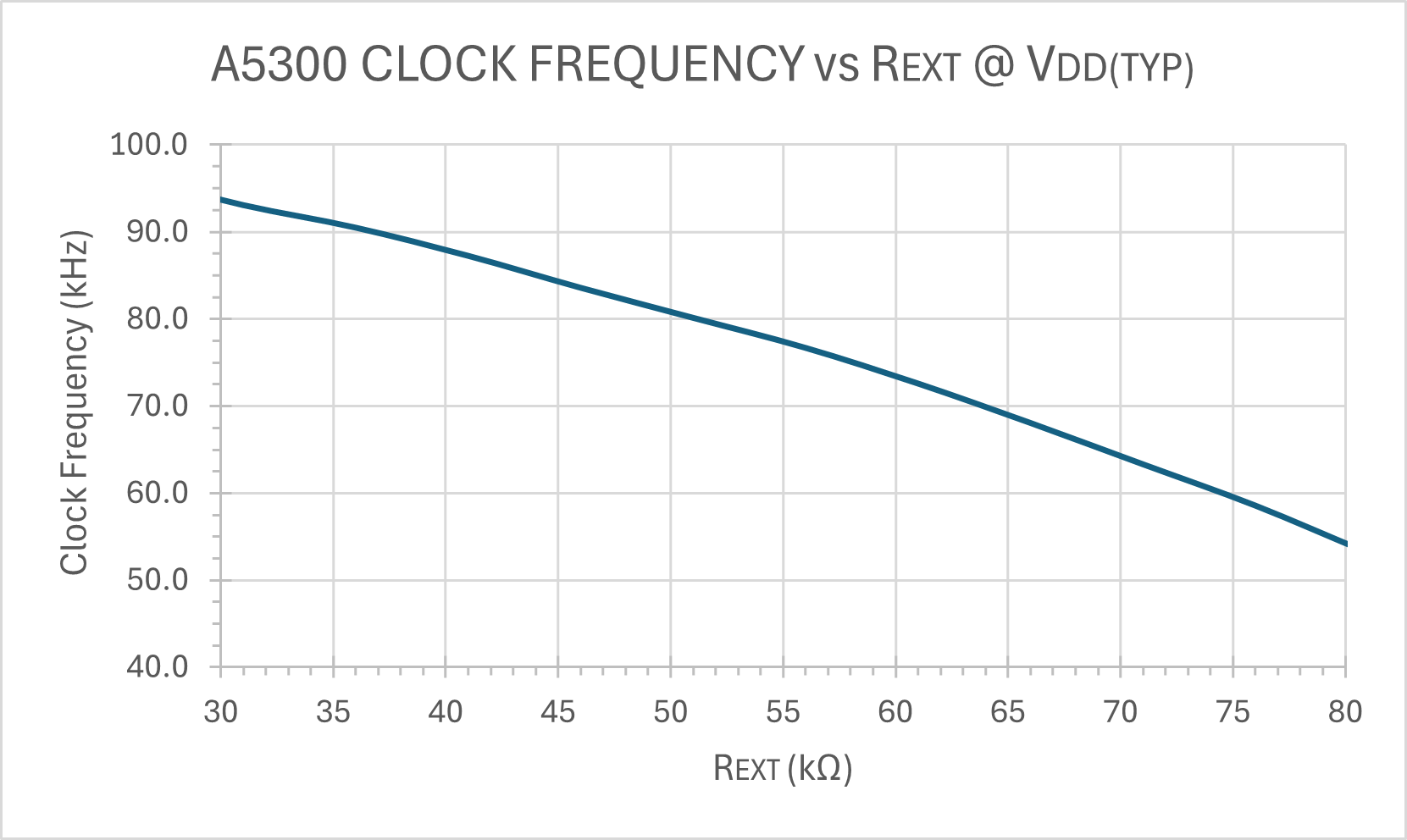

| Clock Frequency vs External Resistor
of a A5300 single-chip calculator circuit. DUT: A5300PB 7530 @ VDD = -15.0 V, VLEDD = -9.0 V.  |

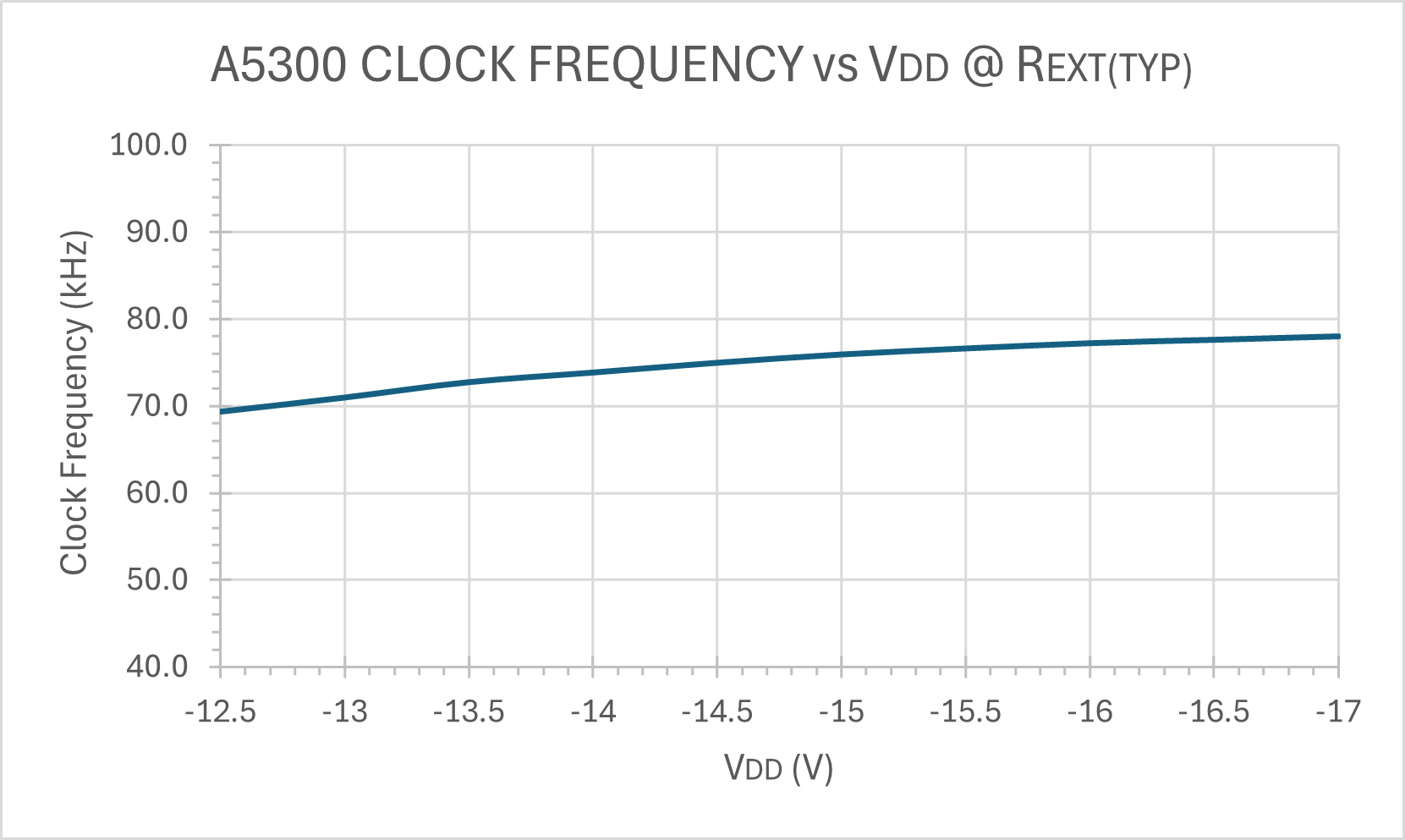

| Clock Frequency vs VDD Supply Voltage
of a A5300 single-chip calculator circuit. DUT: A5300PB 7530 @ VLEDD = -9.0 V, REXT = 56 kOhm.  |
