Additional Pictures

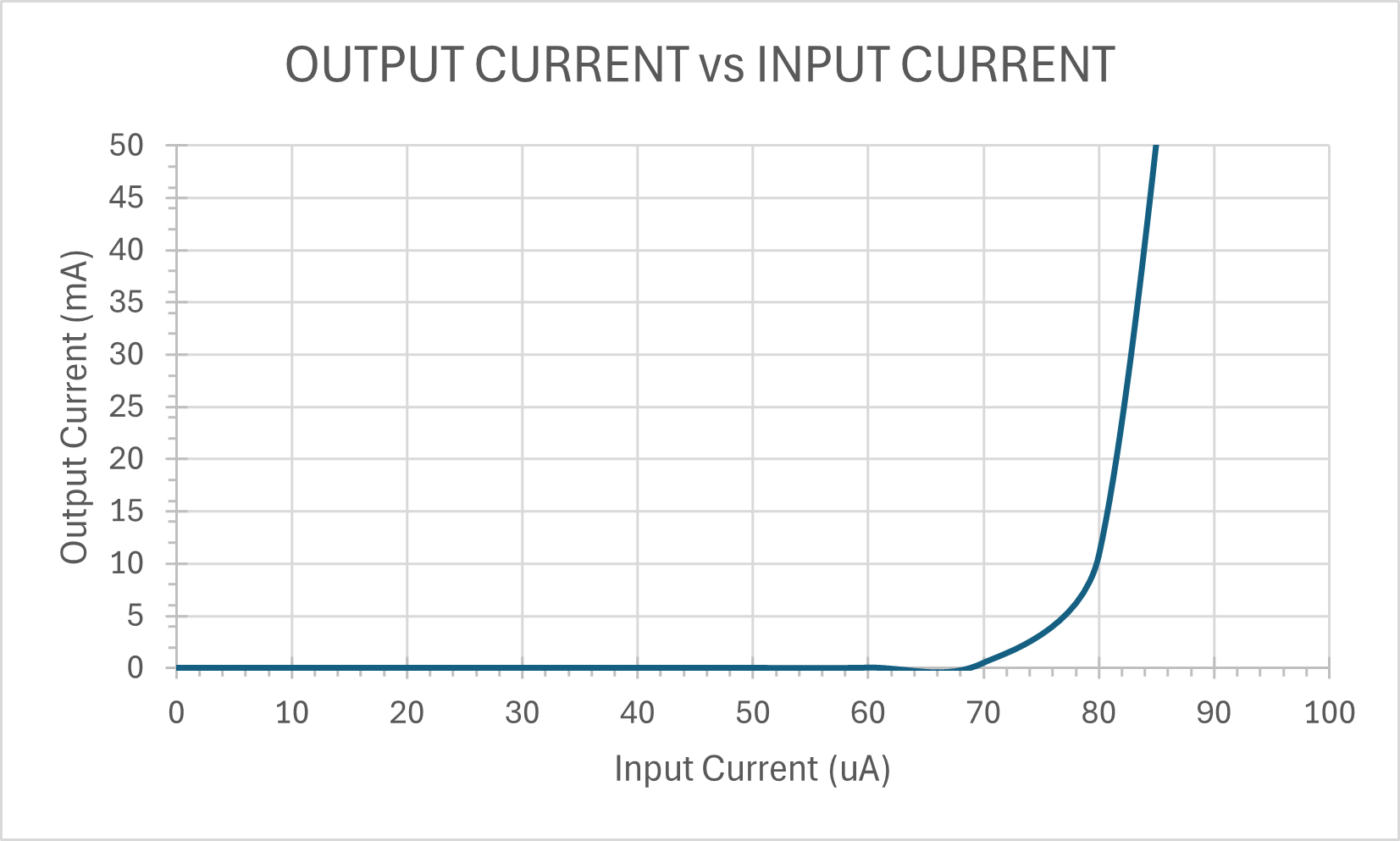

Output Current vs Input Current of a BD5026 9-digit display driver.
DUT: BD5026 7542 @ VCC = 9 V.

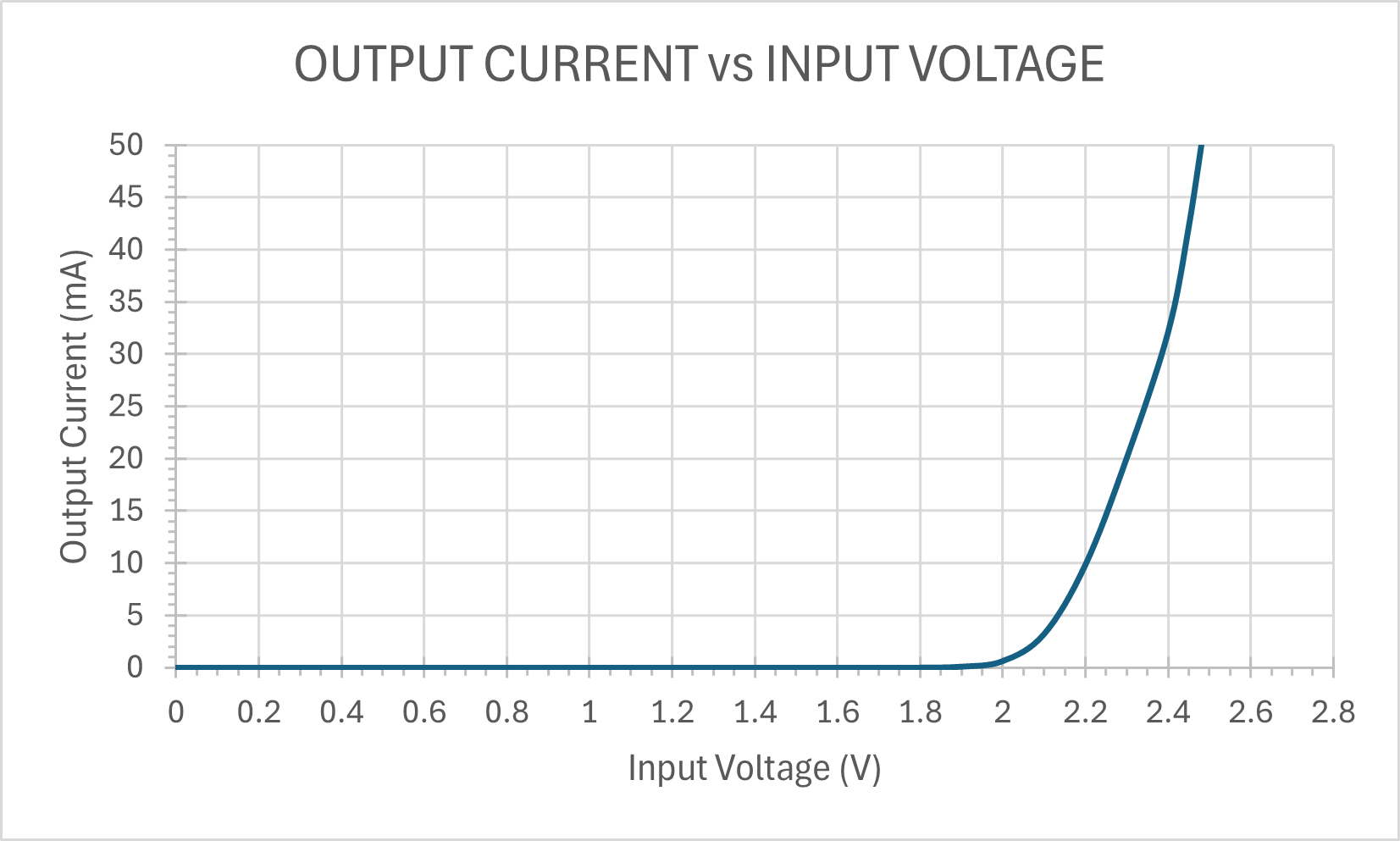

Output Current vs Input Voltage of a BD5026 9-digit display driver.
DUT: BD5026 7542 @ VCC = 9 V.

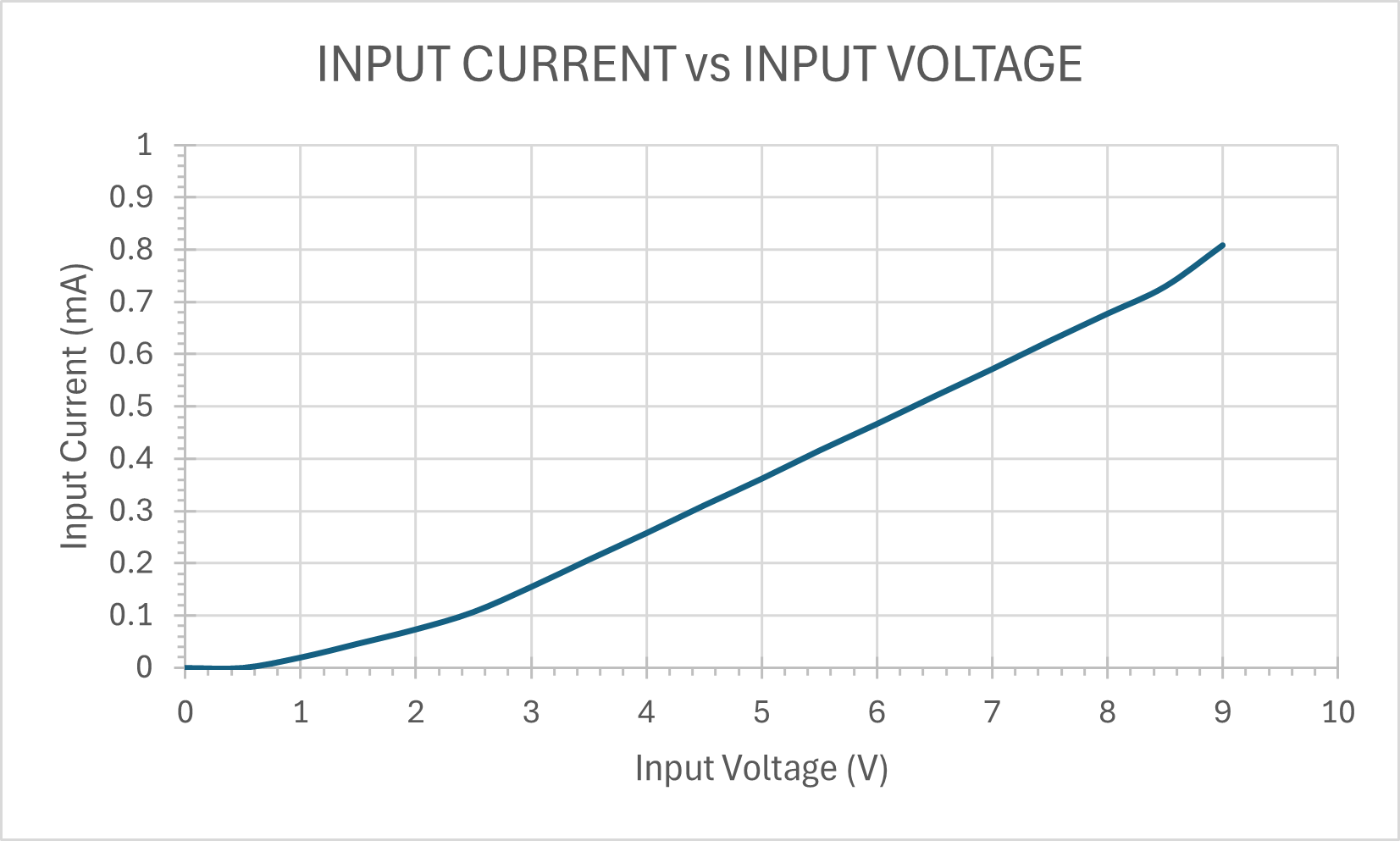

Input Current vs Input Voltage of a BD5026 9-digit display driver.
DUT: BD5026 7542 @ VCC = 9 V.

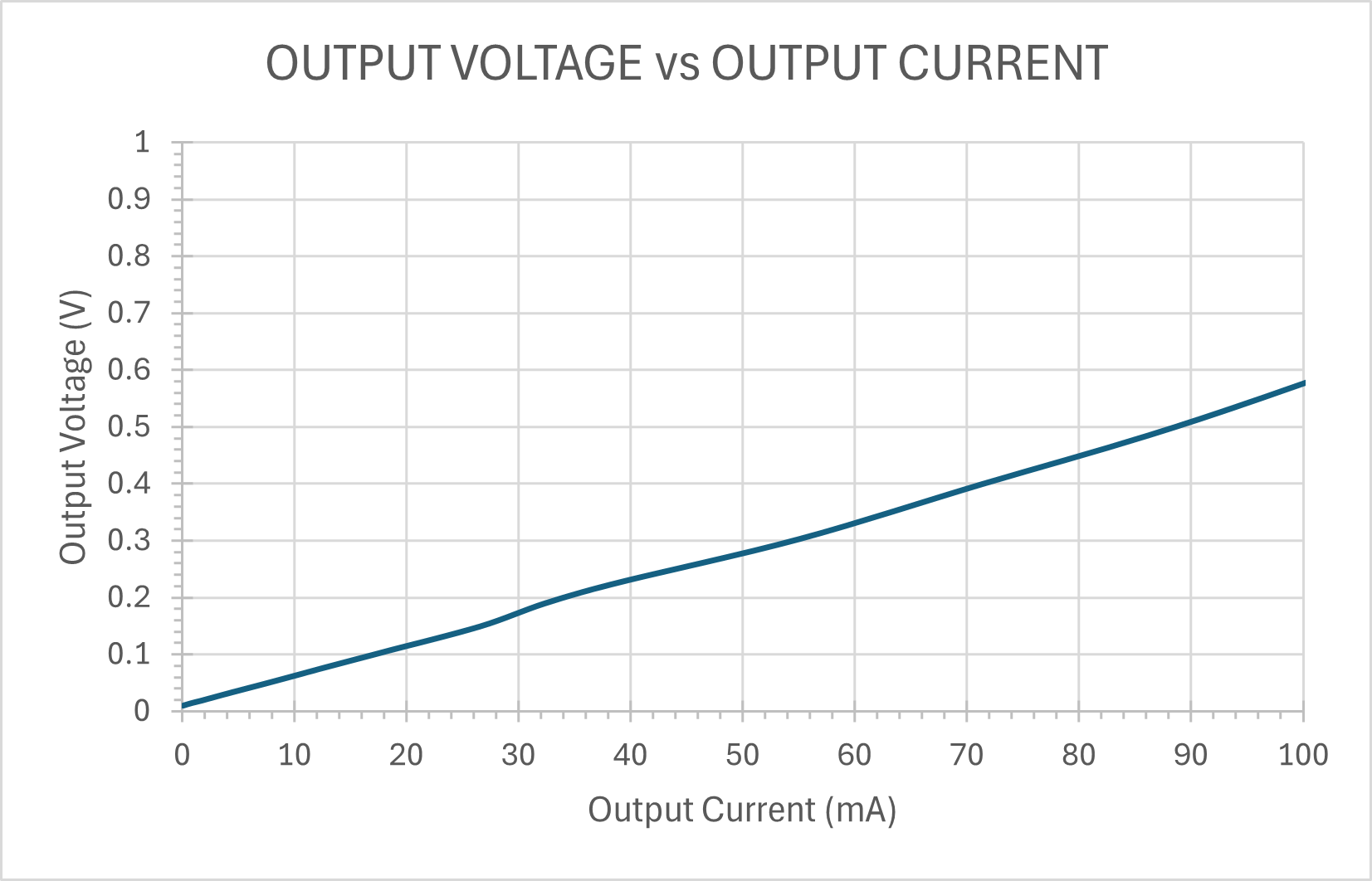

Output Voltage vs Output Current of a BD5026 9-digit display driver.
DUT: BD5026 7542 @ VCC = 9 V.

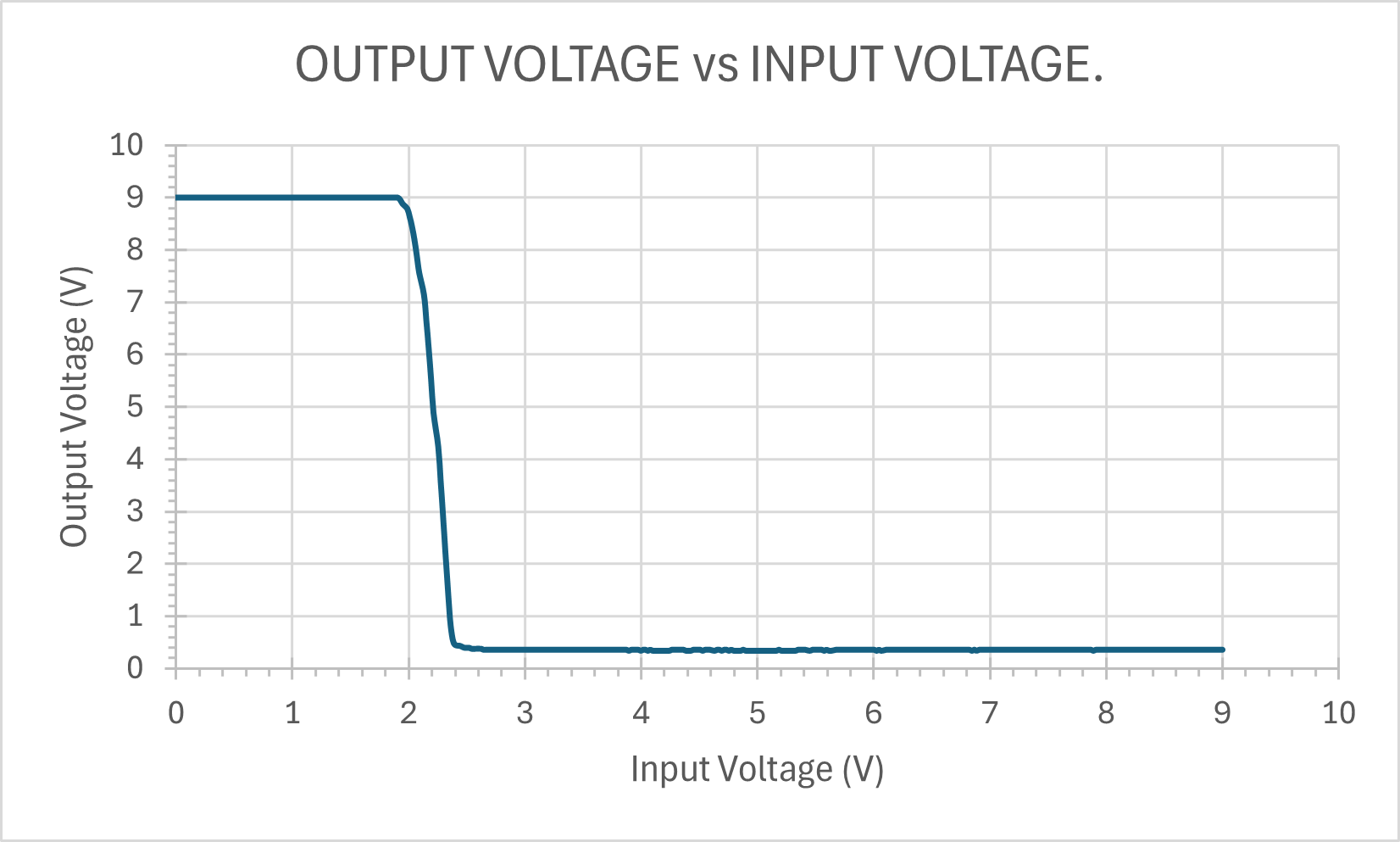

Output Voltage vs Input Voltage of a BD5026 9-digit display driver.
DUT: BD5026 7542 @ VCC = 9 V, RLOAD = 100 Ohm.
