| Sequential

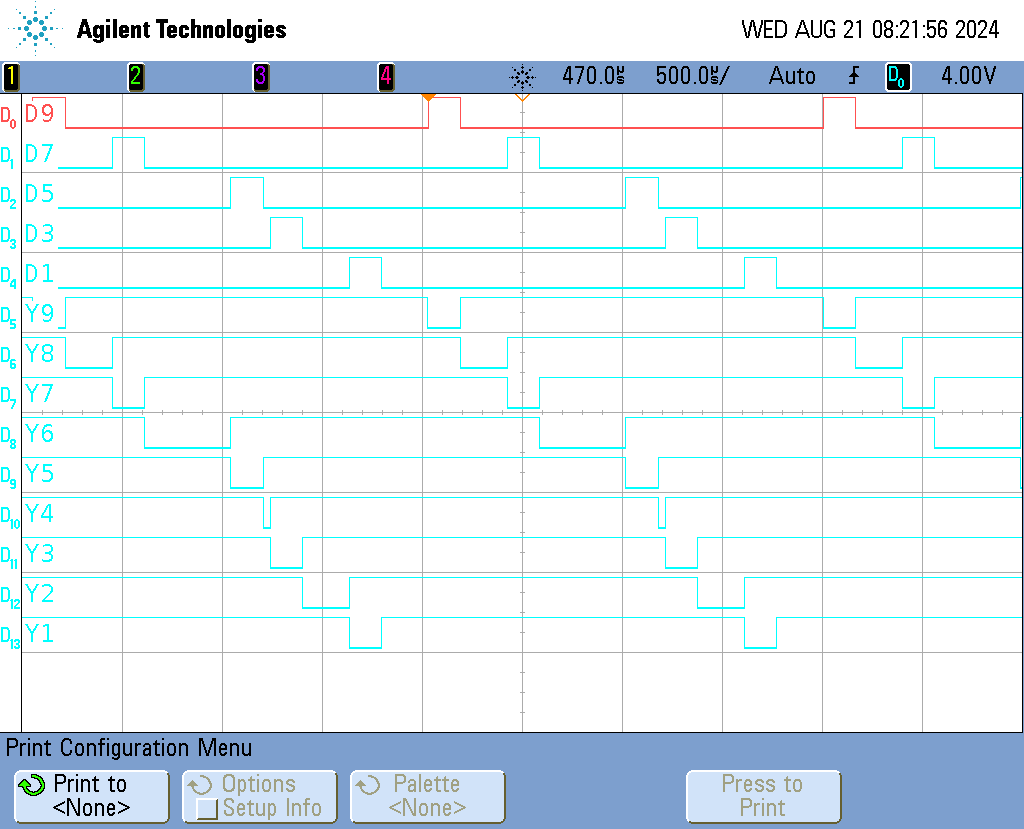

scanning of a TMS0830 single chip calculator circuit with D9, D7, D5, D3,
and D1 connected to the BD5026, showing the direct output signals Y9, Y7, Y5, Y3, and Y1 with the "interpolated" output signals Y8, Y6, Y4, and Y2.  |
Demonstrating the behavior of the
BD5026 Flip Flops of the Y6 and Y4 outputs with the D5 input activated too
early. |
Demonstrating the behavior of the
BD5026 Flip Flops of the Y6 and Y4 outputs with the D5 input activated too
late. |
Demonstrating the behavior of the
BD5026 Flip Flops of the Y6 and Y4 outputs with the D5 input
missing completely. |
