Additional Pictures

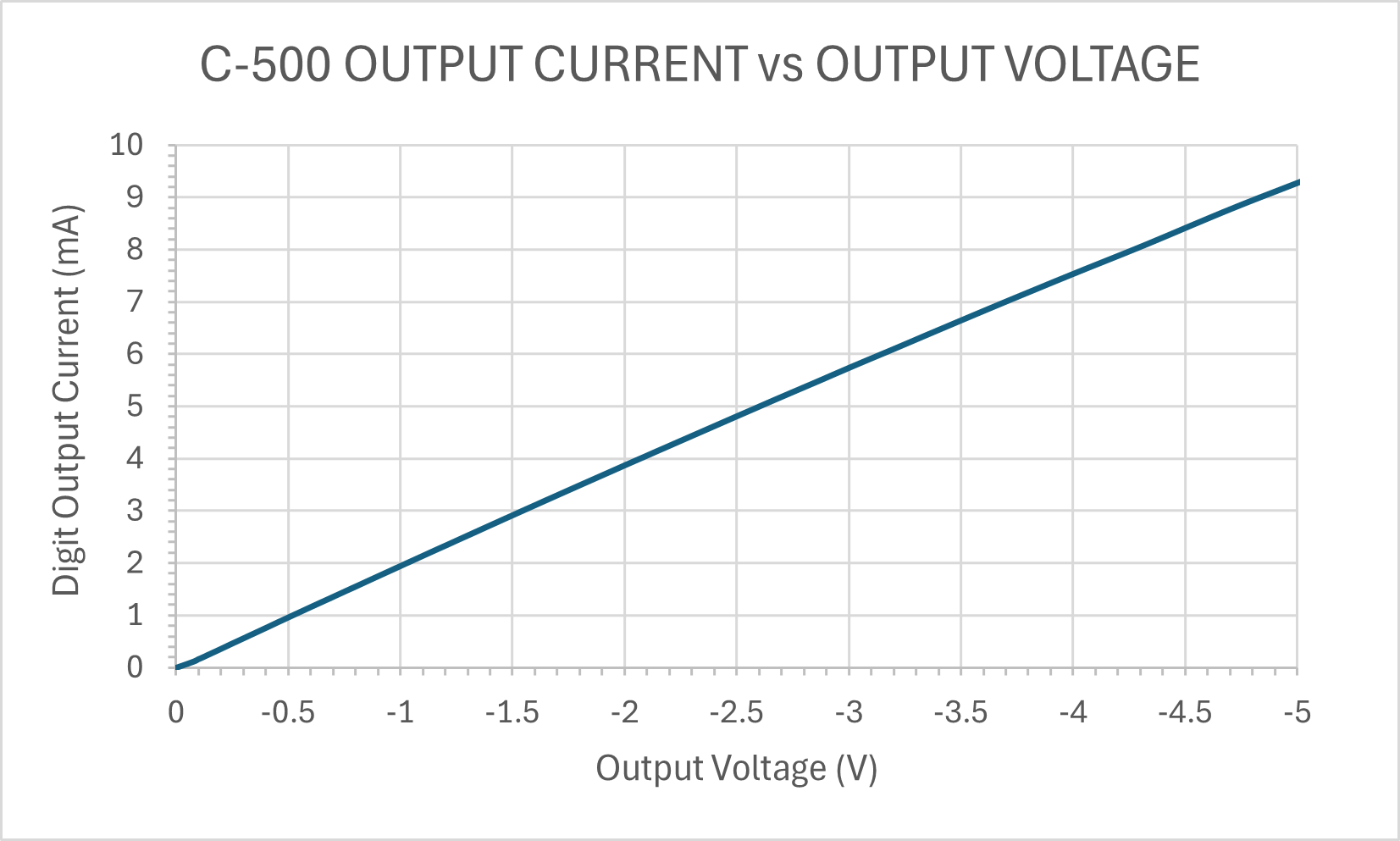

| Output Current vs
Output Voltage of a C-500 Digit Output driver. DUT: C-500 GI7251 @ VDD = -25 V.  |

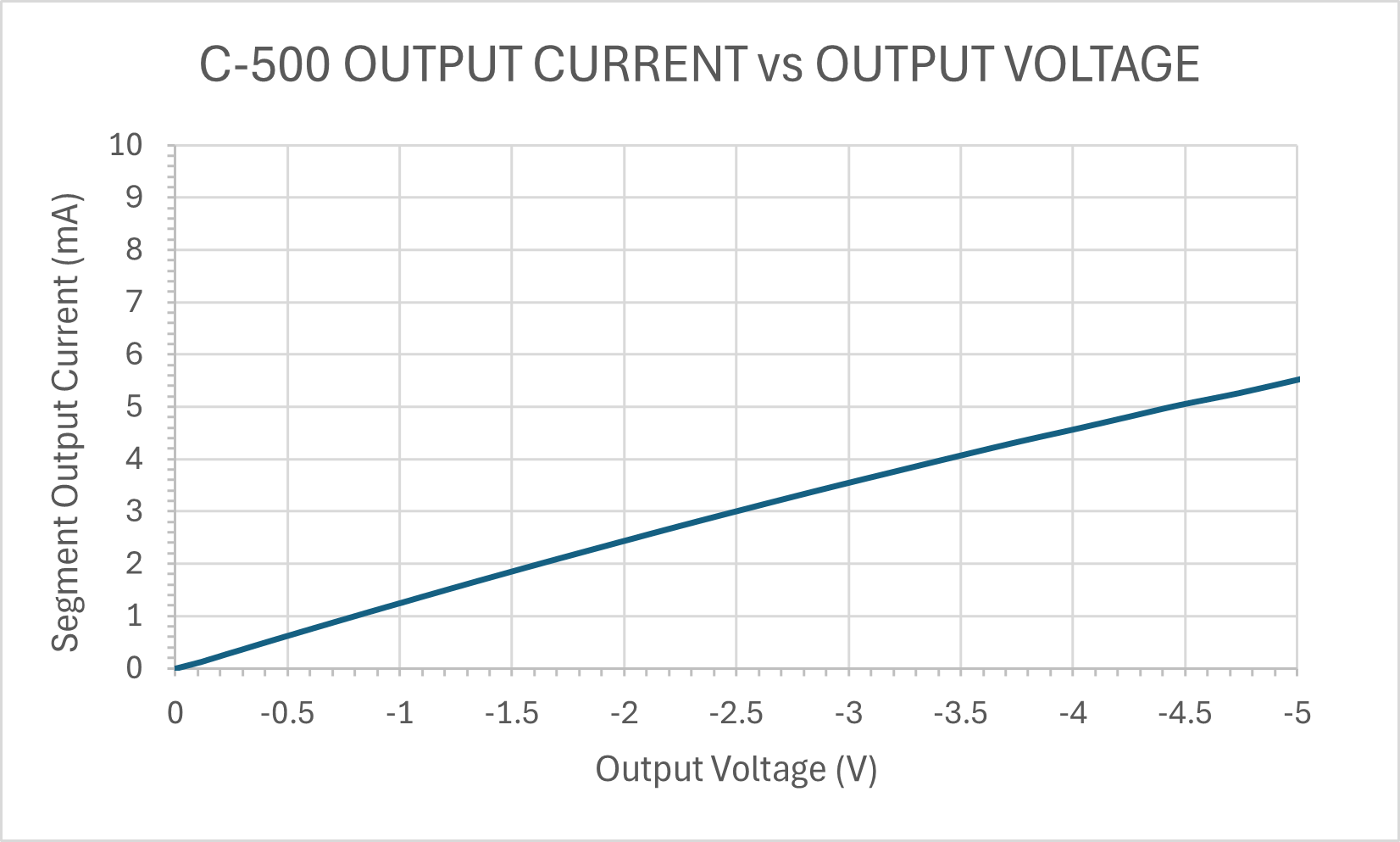

| Output Current vs
Output Voltage of a C-500 Segment Output driver. DUT: C-500 GI7251 @ VDD = -25 V.  |
