Additional Pictures

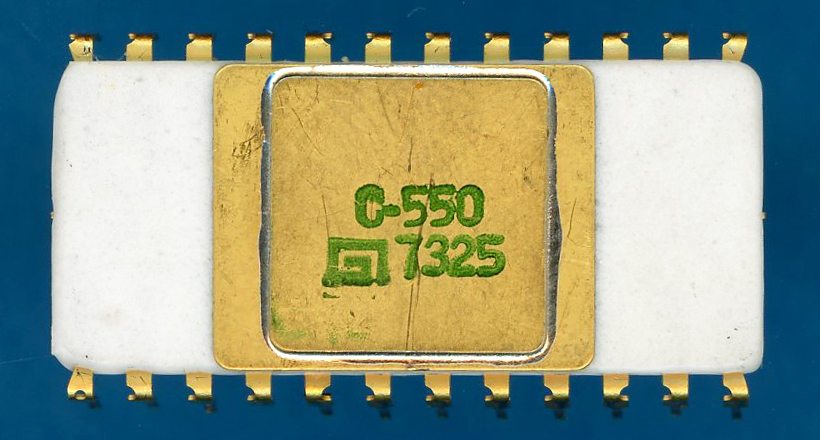

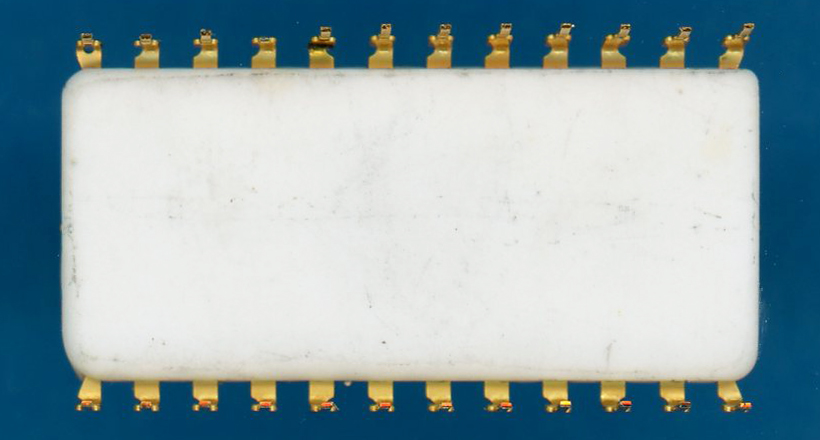

| Close-up view
of the C-550 single-chip calculator circuit used with the Interton PC 2008
(Version 2) manufactured in July 1973. PMOS Technology, 24-pin Ceramic DIP RISC Processor, 72*27 to 63 Bits Instruction ROM, 3*44 Bits + 1*9 Bits Data SAM. Chip manufactured June 1973.   |

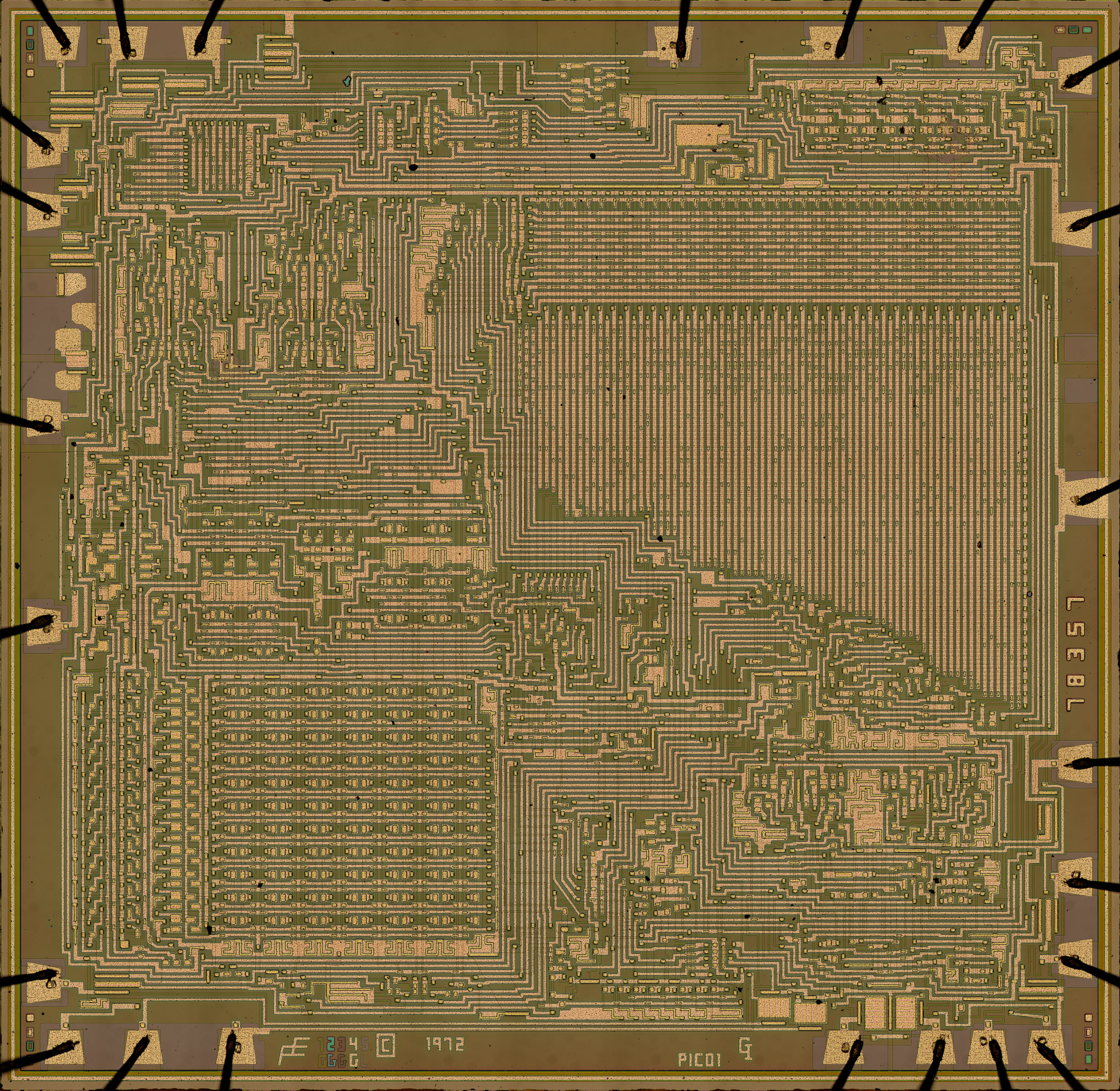

Die Photo of the
C-550
courtesy of Sean Riddle. |

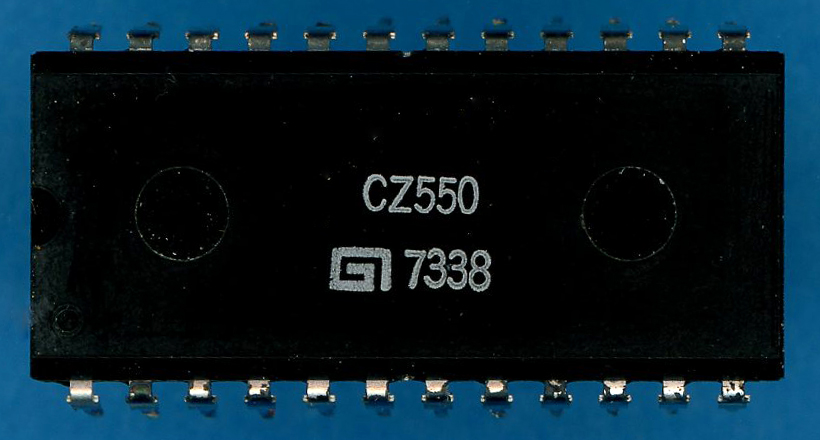

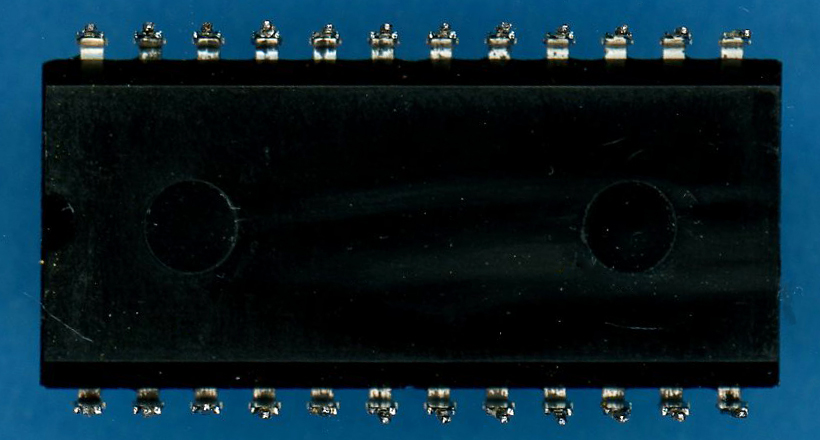

| Close-up view
of the CZ-550 single-chip calculator circuit used with the calfax 800CD
manufactured in October 1973. PMOS Technology, 24-pin Plastic DIP RISC Processor, 72*27 to 63 Bits Instruction ROM, 3*44 Bits + 1*9 Bits Data SAM. Chip manufactured September 1973.   |
