Additional Pictures
| Output Current vs

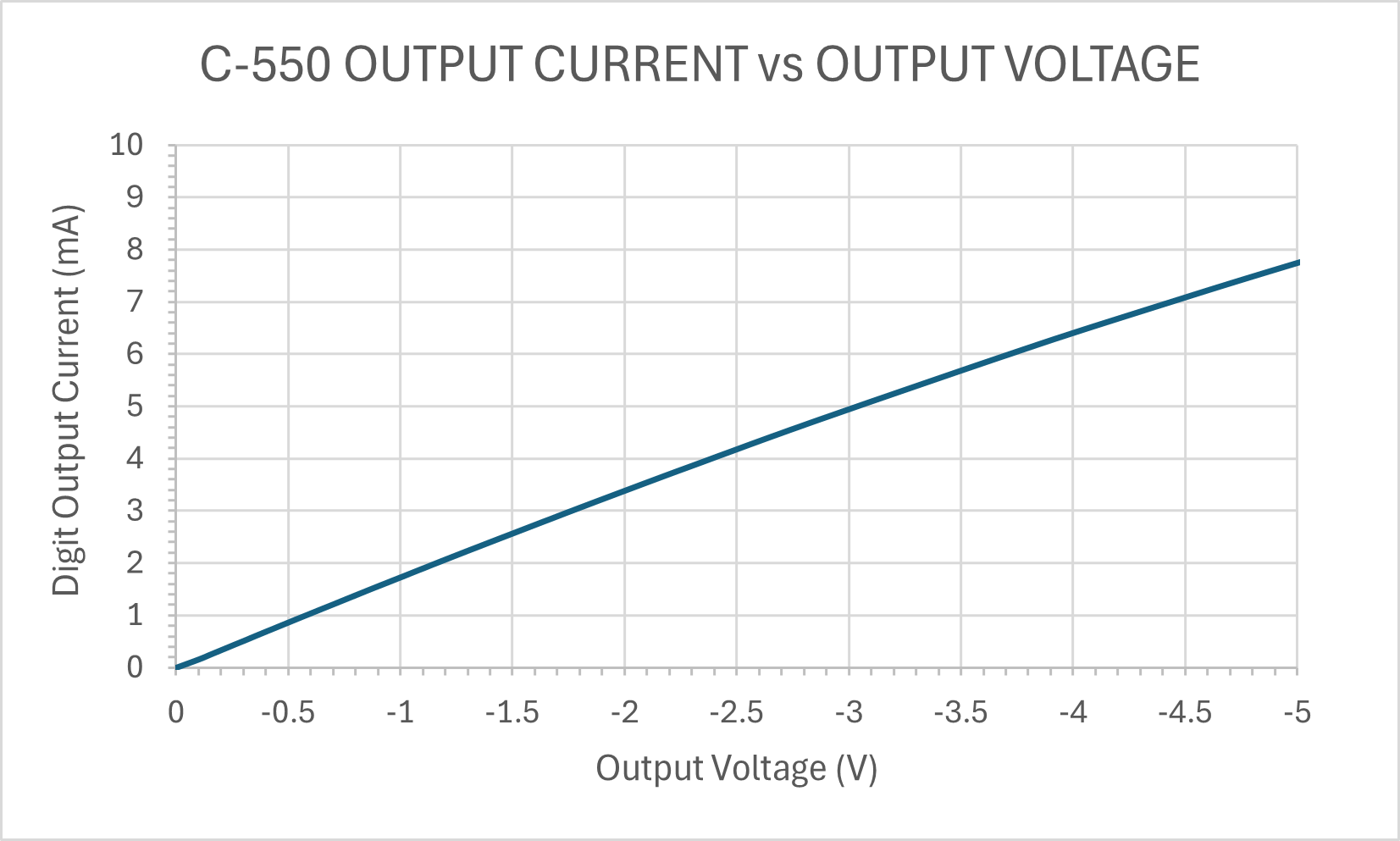

Output Voltage of a C-550 Digit Output driver. DUT: C-550 GI7325 @ VDD = -15 V.  |
| Output Current vs

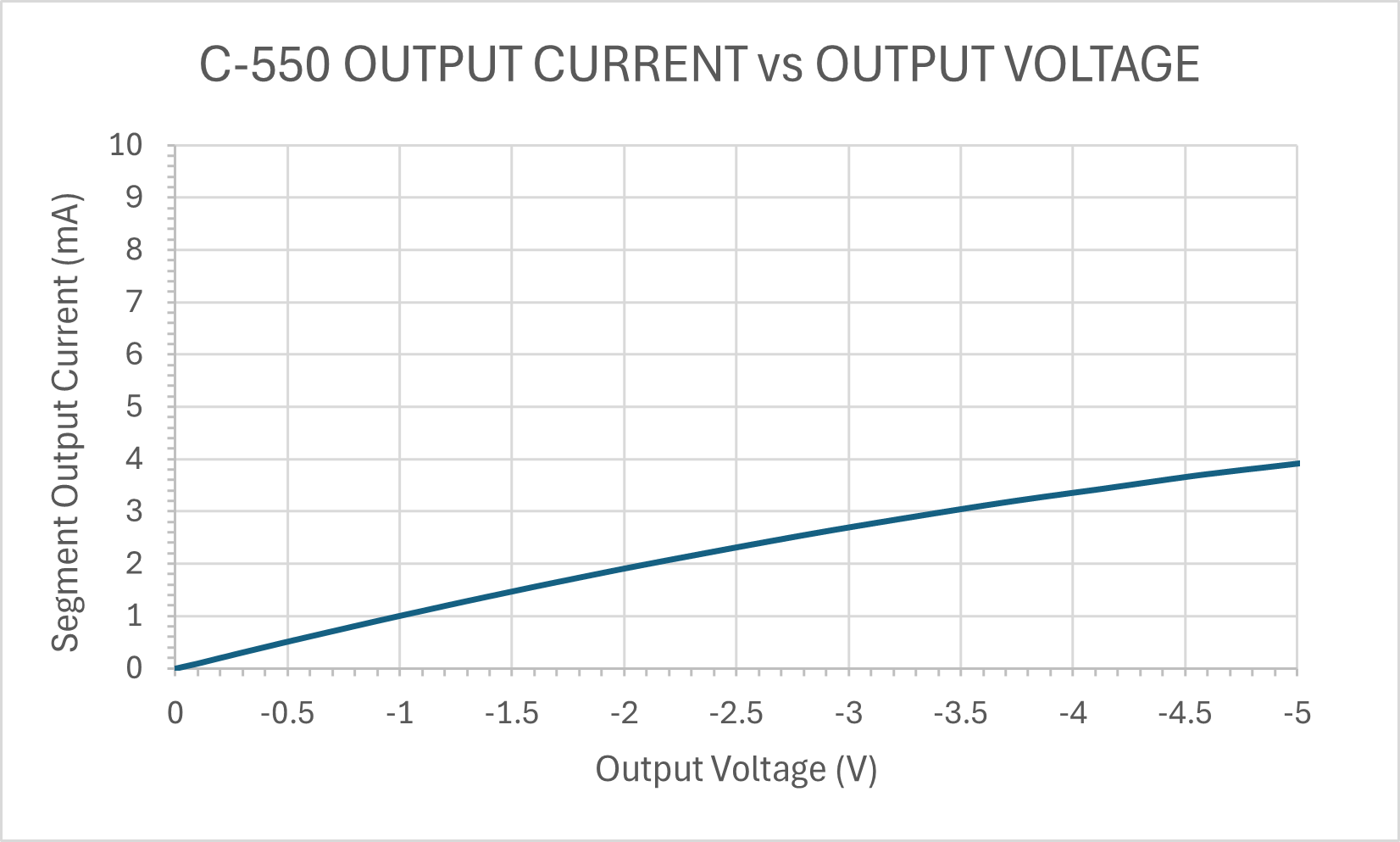

Output Voltage of a C-550 Segment Output driver. DUT: C-550 GI7325 @ VDD = -15 V.  |
| Output Current vs

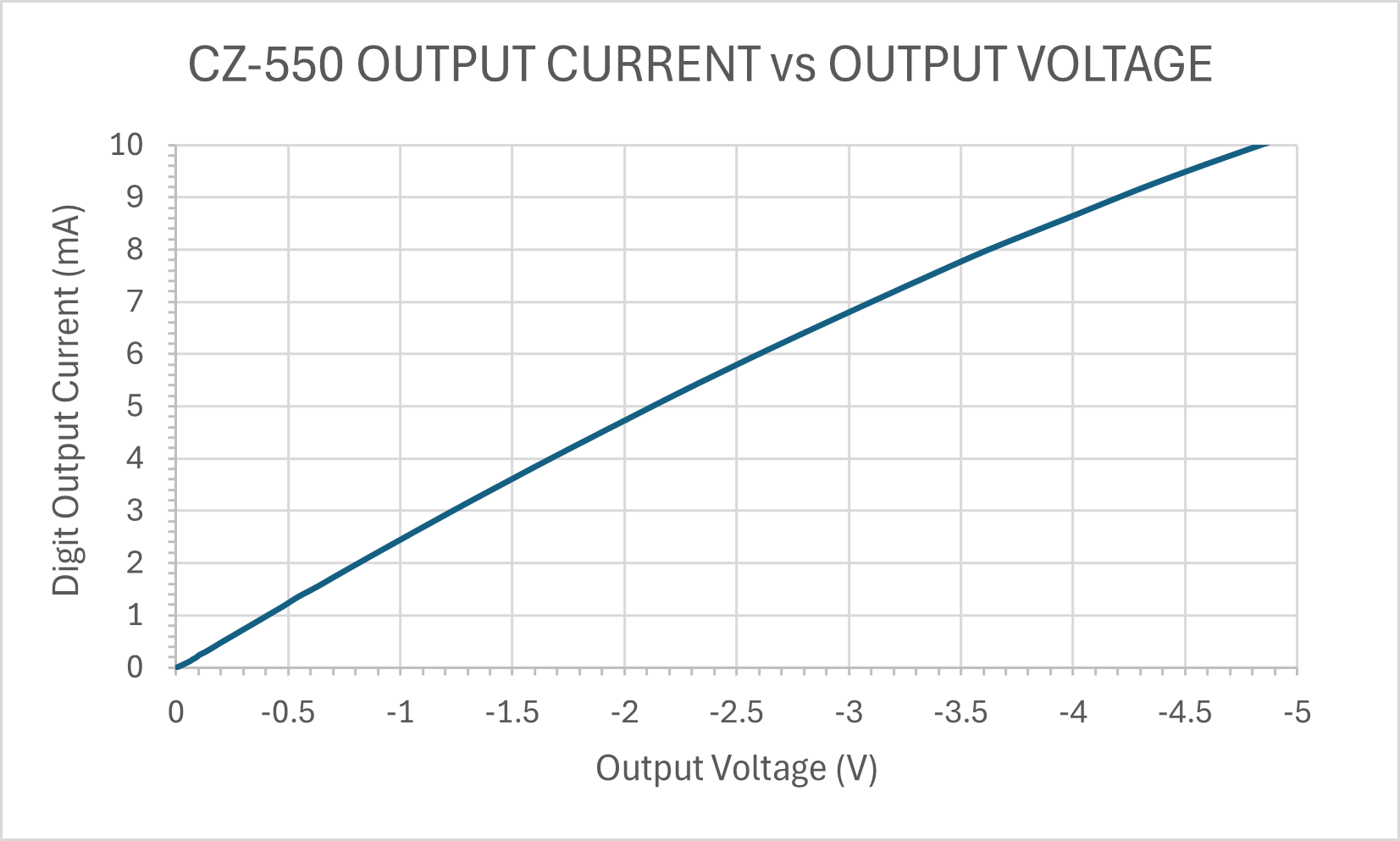

Output Voltage of a CZ-550 Digit Output driver. DUT: CZ-550 GI7338 @ VDD = -15 V.  |
| Output Current vs

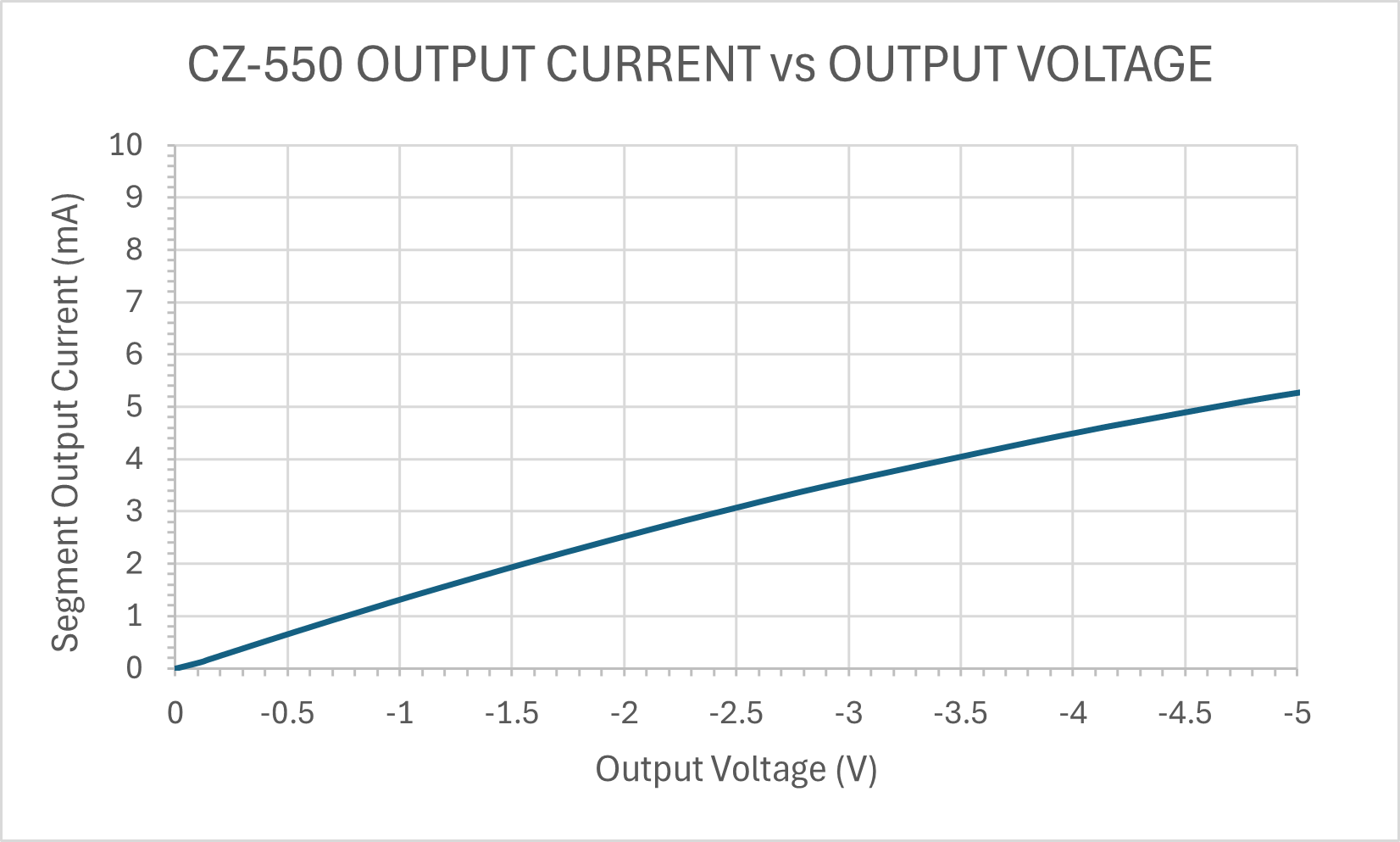

Output Voltage of a CZ-550 Segment Output driver. DUT: CZ-550 GI7338 @ VDD = -15 V.  |
