Additional Pictures

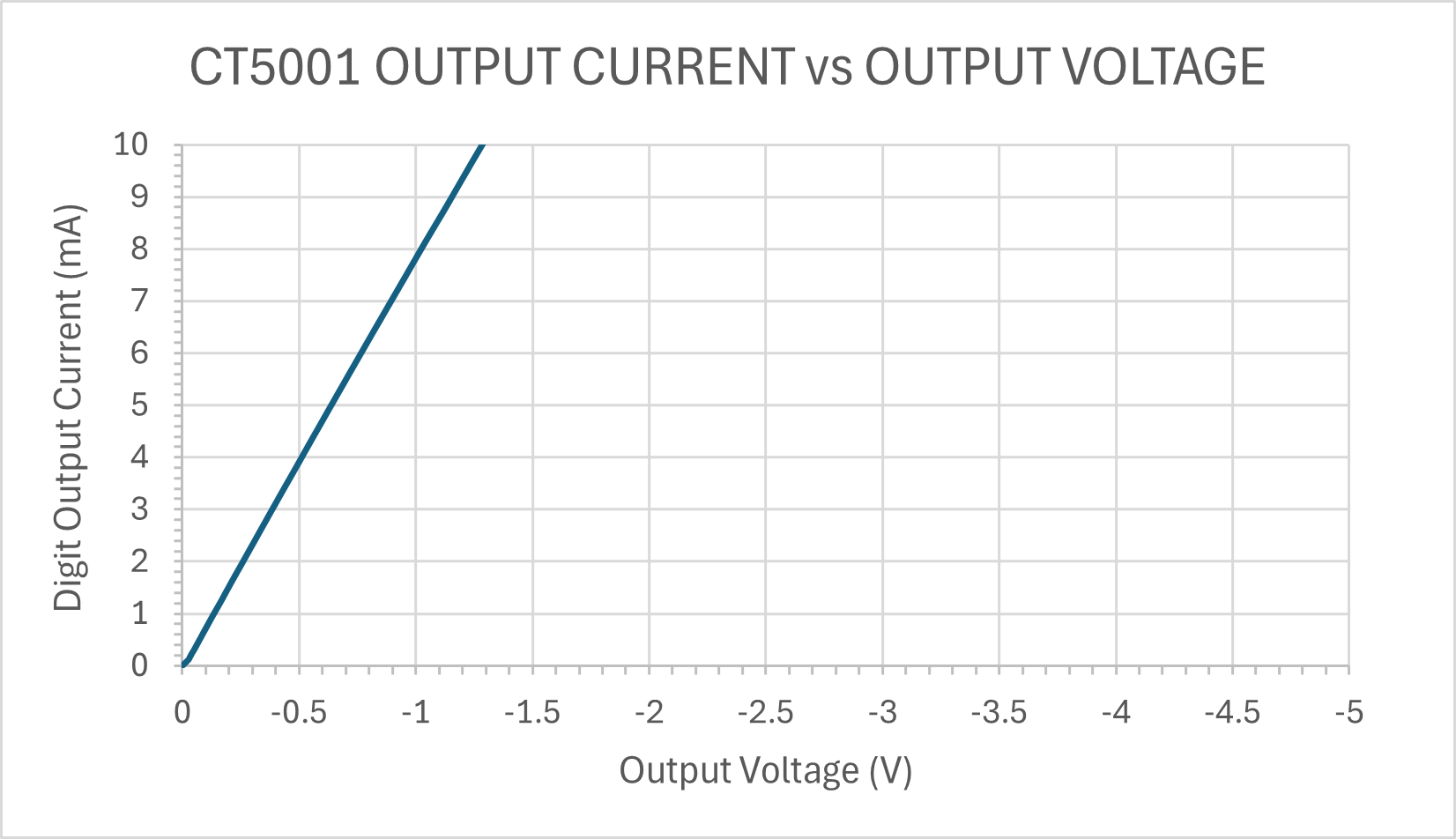

Output Current vs Output Voltage of a CT5001 Digit Output driver.
DUT: CT5001 7213 @ VDD = -12 V, VGG = -24 V.

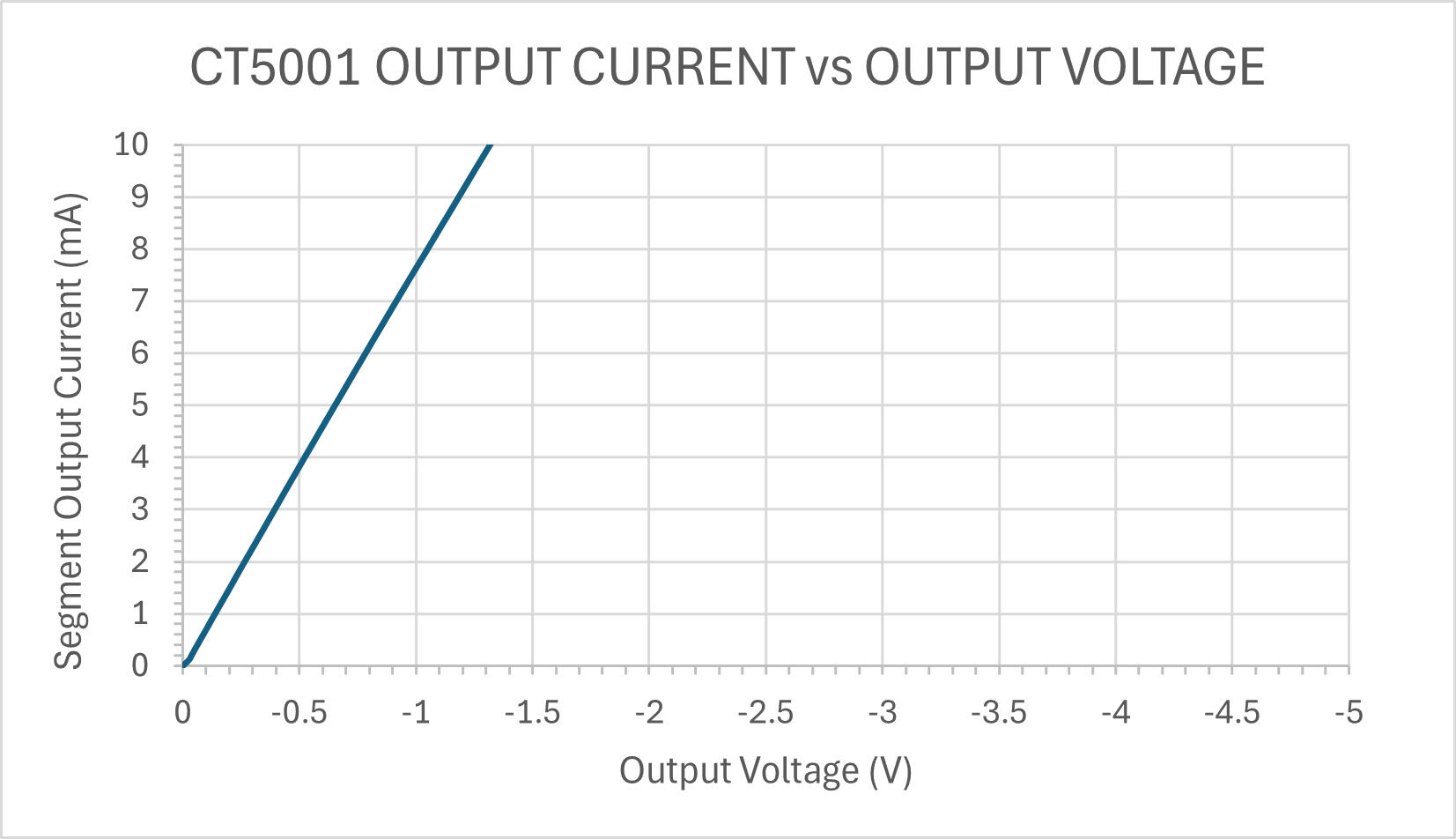

Output Current vs Output Voltage of a CT5001 Segment Output driver.
DUT: CT5001 7213 @ VDD = -12 V, VGG = -24 V.
