Additional Pictures

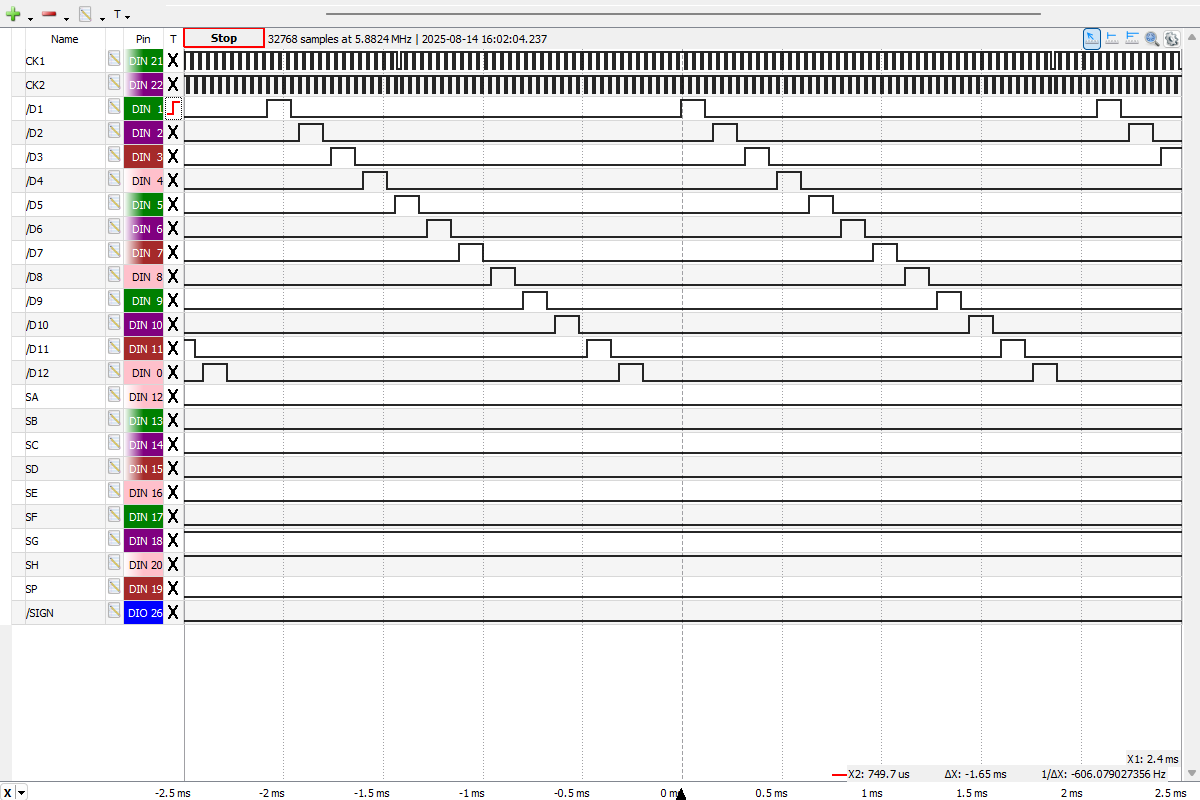

| Clock Input, Digit Output, Segment Output
and Sign Output Pins of the CT5001 during Display
Testing captured with the Digilent Digital Discovery connected to the DCM-50A Platform. CT5001 Clock Frequency at 25 kHz.  |

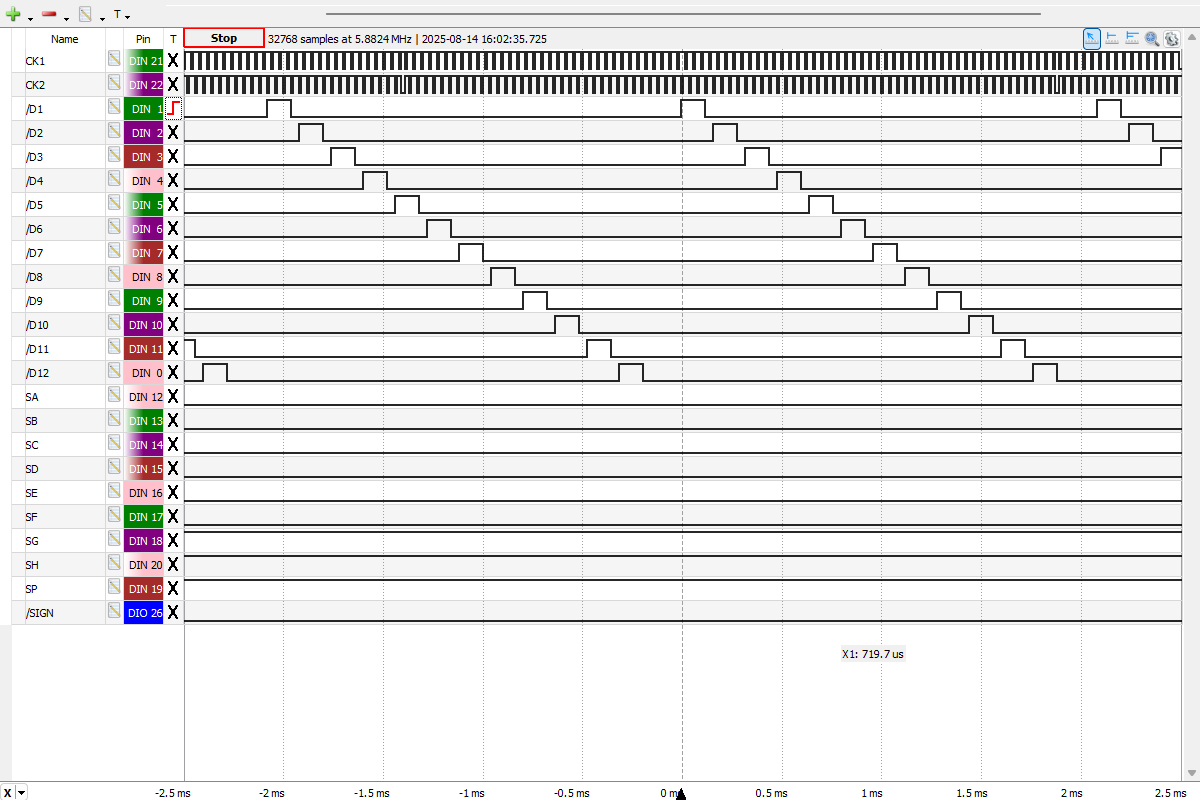

| Clock Input, Digit Output, Segment Output
and Sign Output Pins of the CT5001 during Calculating
Overflow captured with the Digilent Digital Discovery connected to the DCM-50A Platform. CT5001 Clock Frequency at 25 kHz.  |

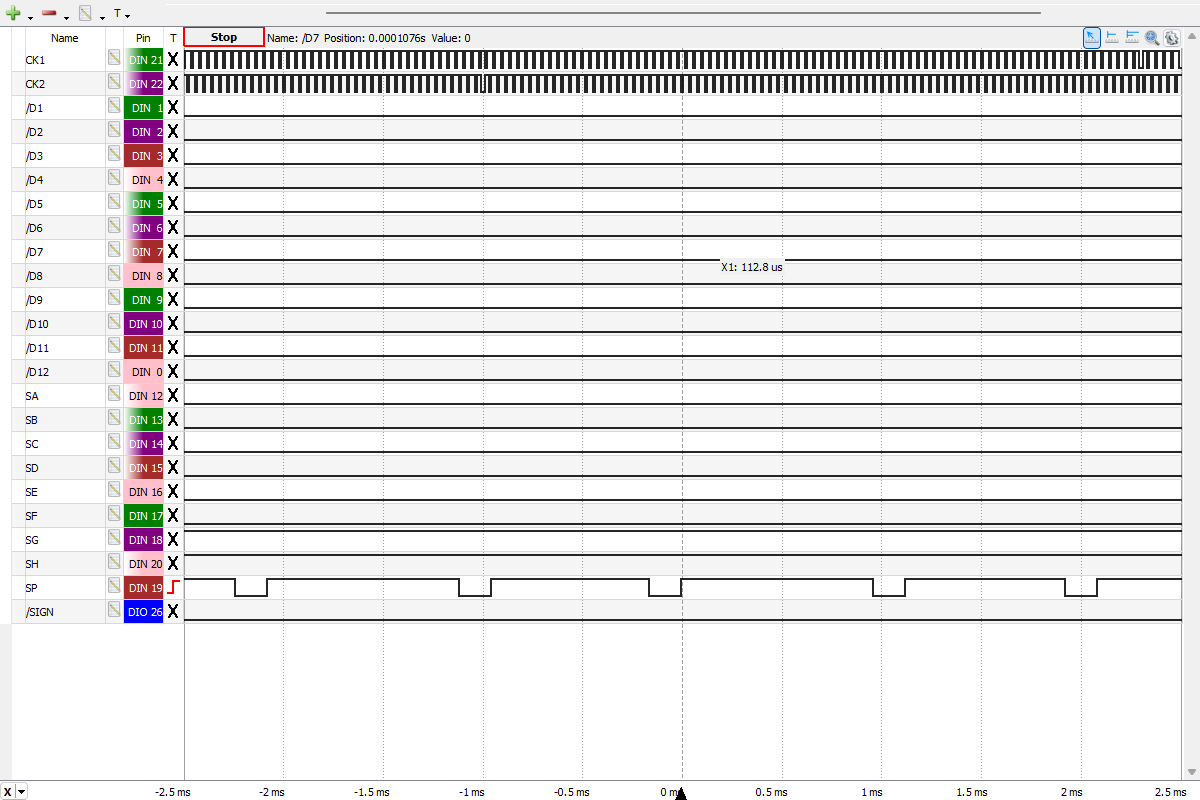

| Clock Input, Digit Output, Segment Output
and Sign Output Pins of the CT5001 during Divide
by Zero Loop captured with the Digilent Digital Discovery connected to the DCM-50A Platform. CT5001 Clock Frequency at 25 kHz.  |
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, April 4, 2026. No reprints without written permission.
