Additional Pictures

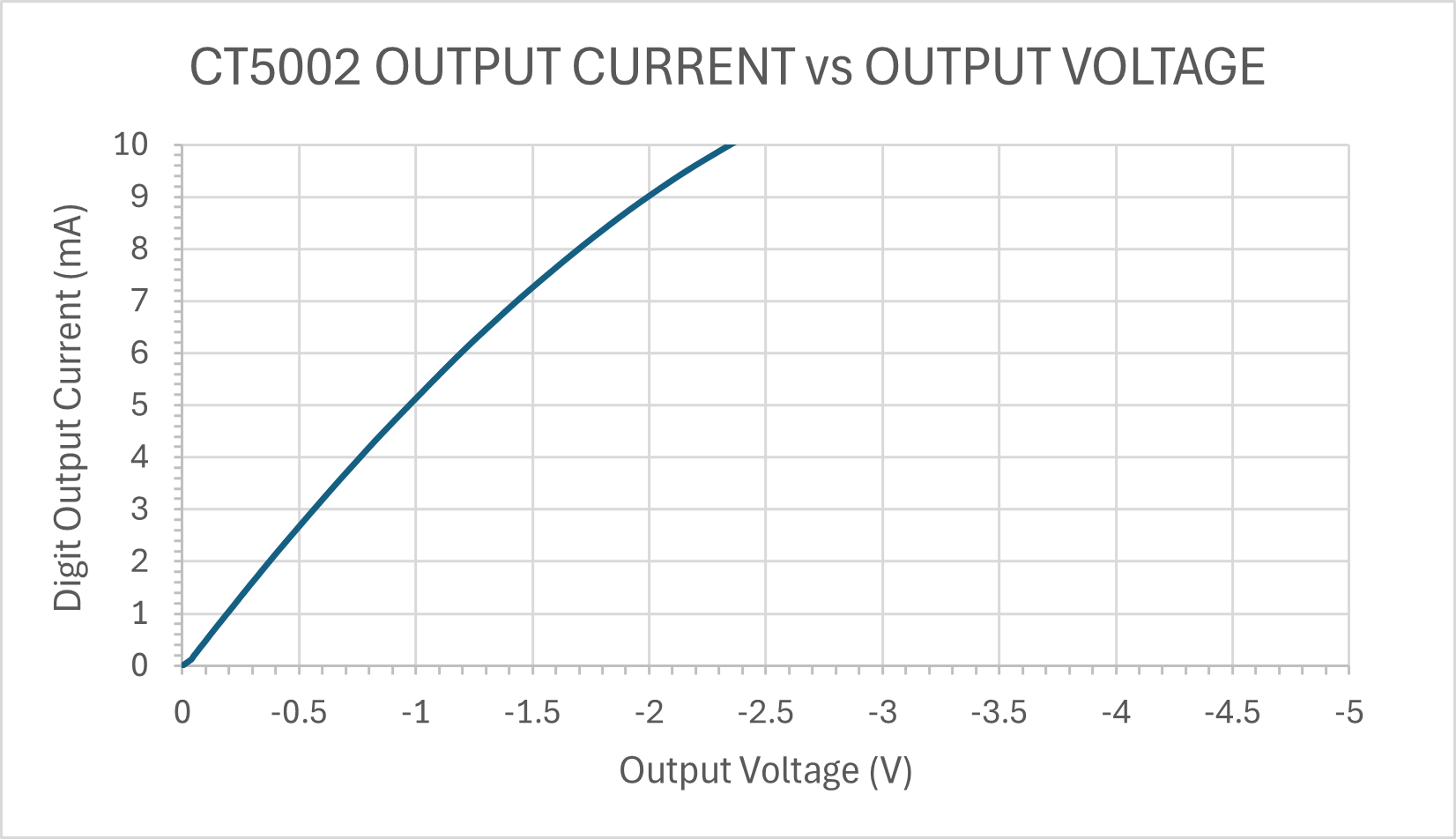

Output Current vs Output Voltage of a CT5002 Digit Output driver.
DUT: CT5002 7238 @ VDD = -6 V.

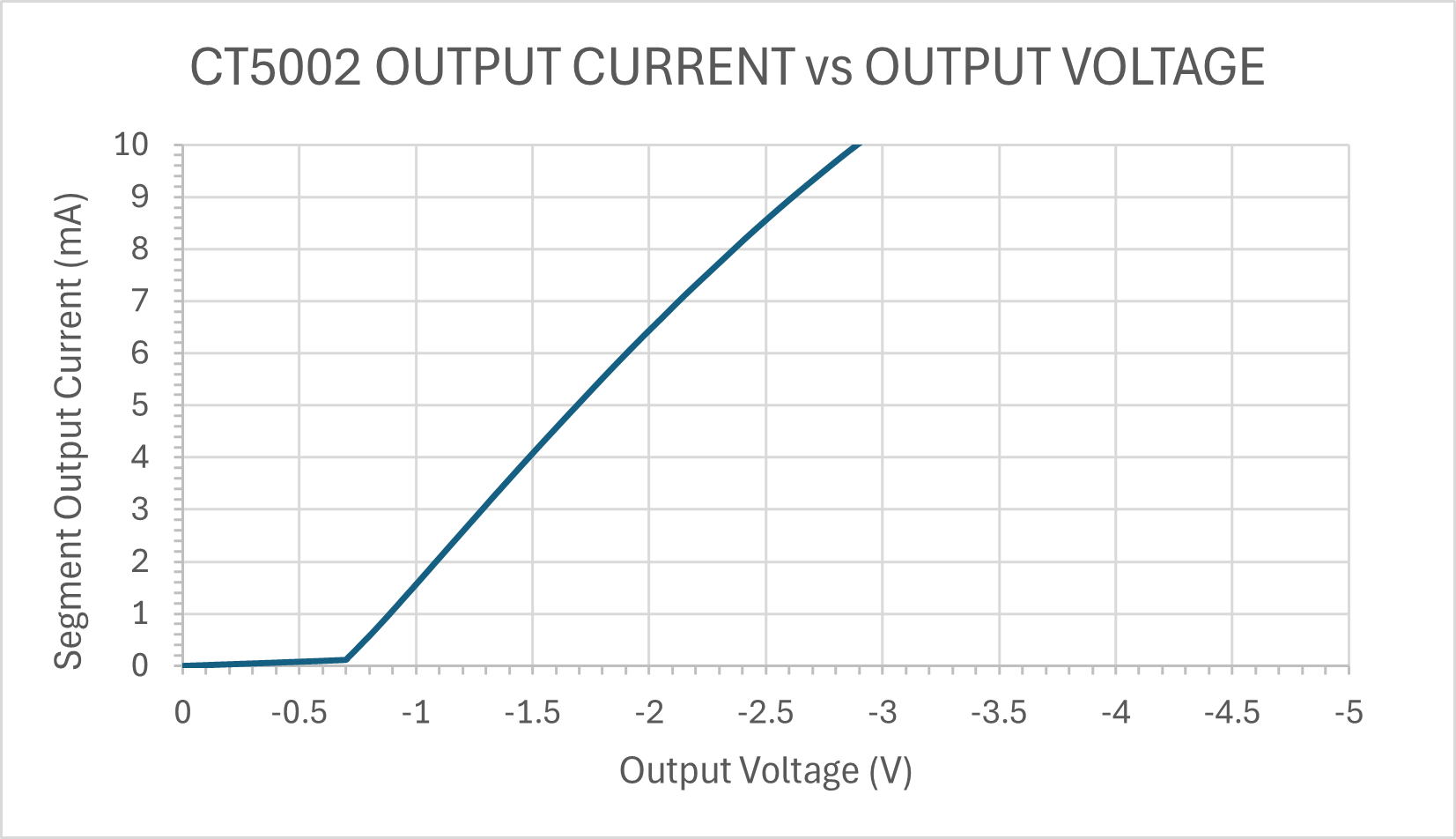

Output Current vs Output Voltage of a CT5002 Segment Output driver.
DUT: CT5002 7238 @ VDD = -6 V.
