Additional Pictures

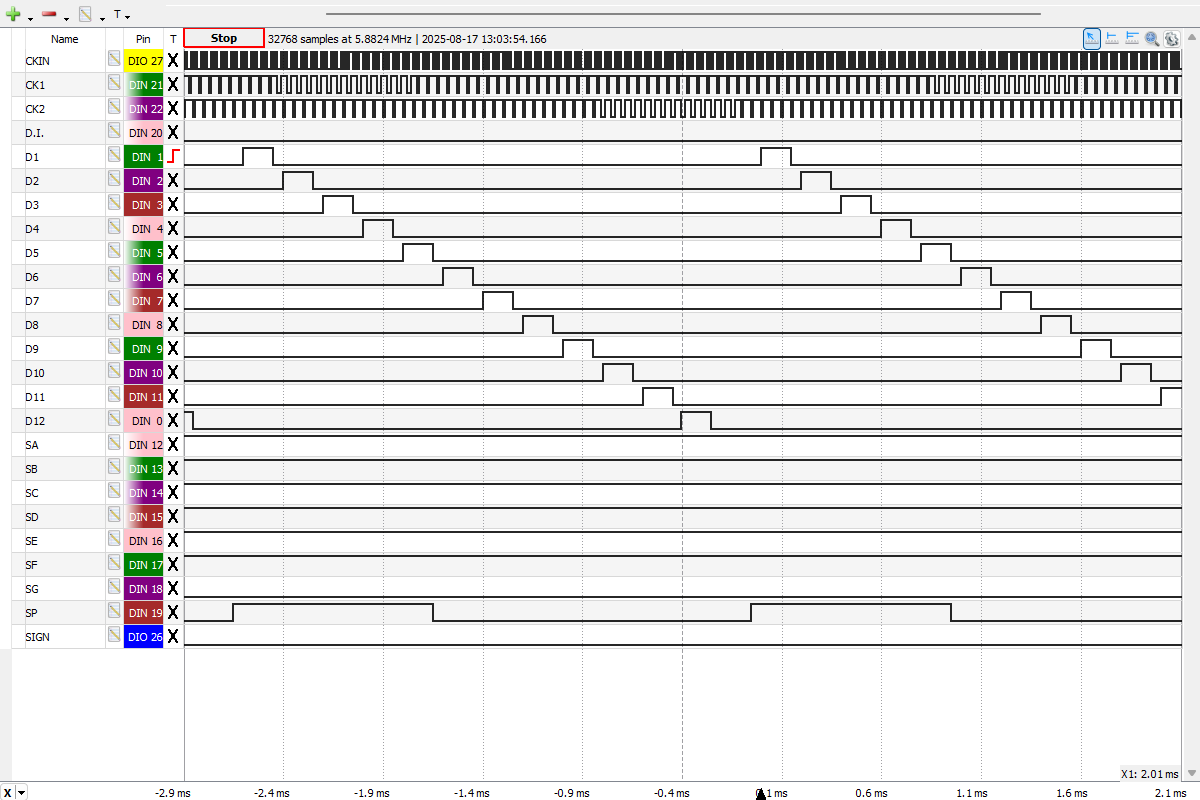

| Clock Input, Digit Output, Segment Output
and Sign Output Pins of the CT5002 during Display
Testing captured with the Digilent Digital Discovery connected to the DCM-50A Platform. CT5002 Clock Frequency at 40 kHz. Note: D.I. Input by mistake not connected to Digilent Digital Discovery Input DIN 20.  |

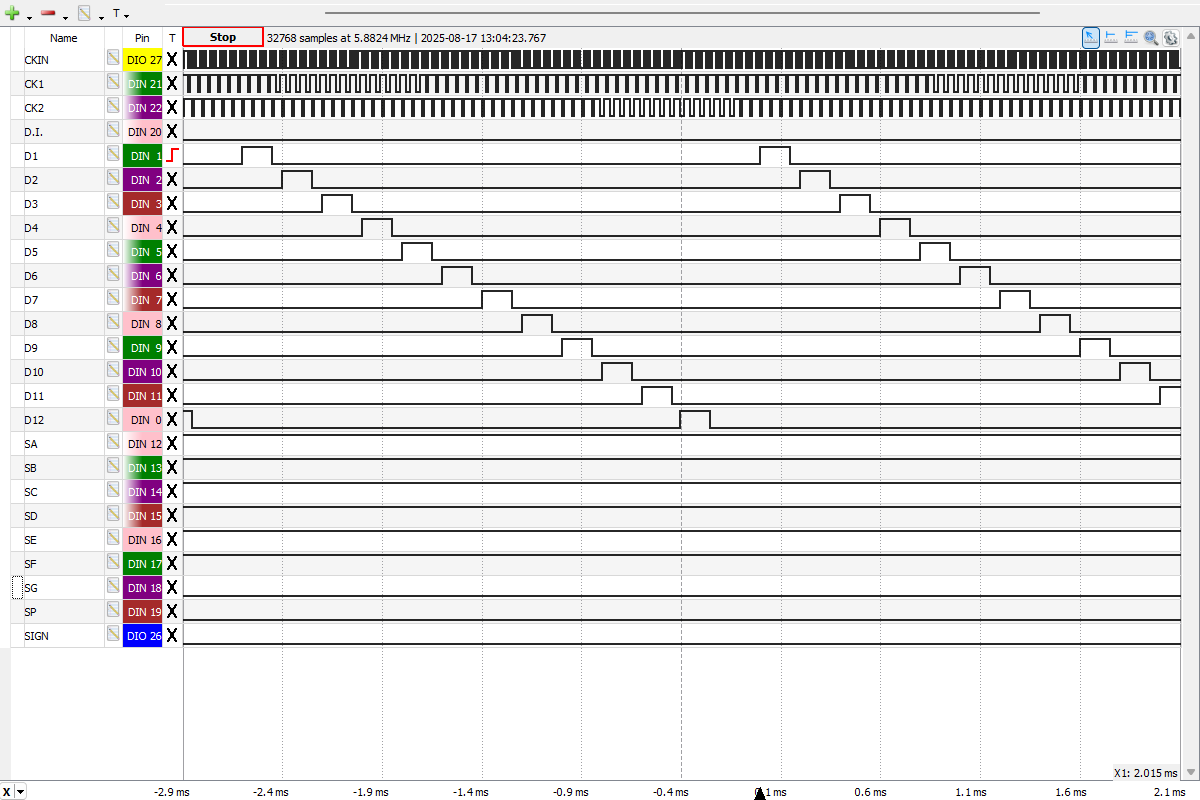

| Clock Input, Digit Output, Segment Output
and Sign Output Pins of the CT5002 during Calculating
Overflow captured with the Digilent Digital Discovery connected to the DCM-50A Platform. CT5002 Clock Frequency at 40 kHz. Note: D.I. Input by mistake not connected to Digilent Digital Discovery Input DIN 20.  |

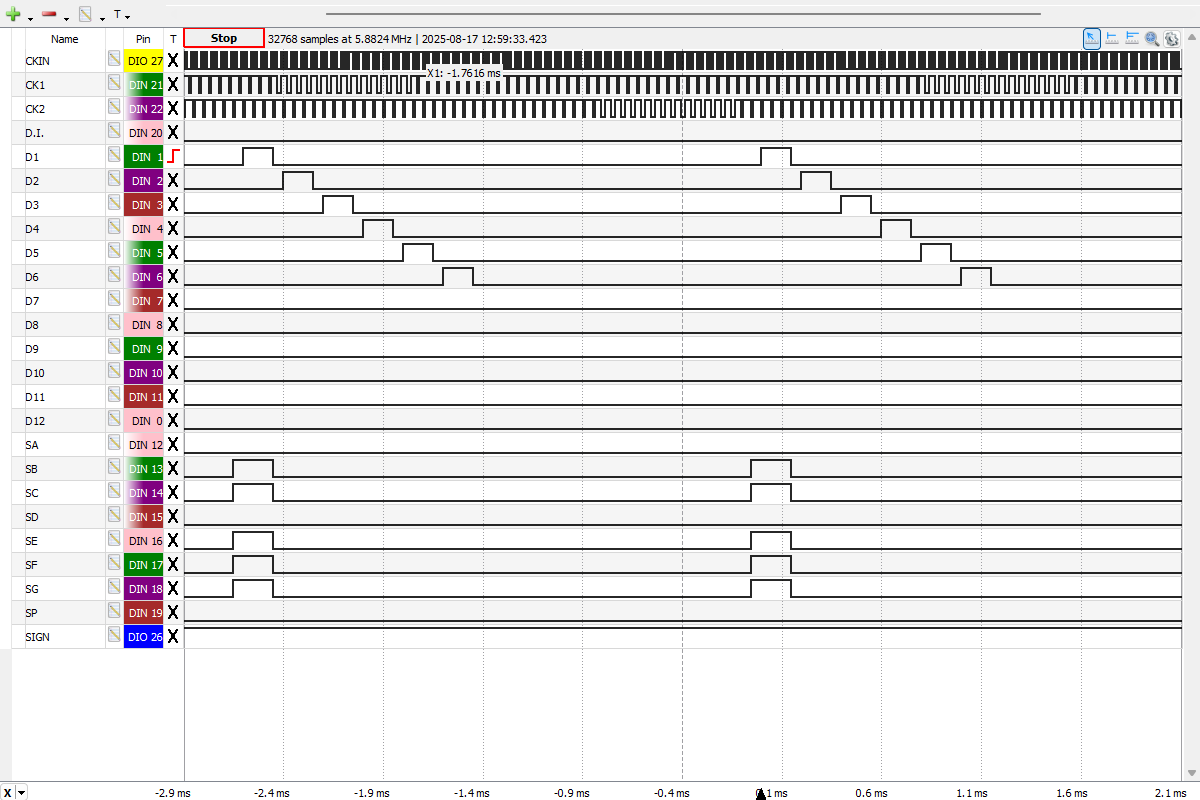

| Clock Input, Digit Output, Segment Output
and Sign Output Pins of the CT5002 during Divide
by Zero Loop captured with the Digilent Digital Discovery connected to the DCM-50A Platform. CT5002 Clock Frequency at 40 kHz. Note: D.I. Input by mistake not connected to Digilent Digital Discovery Input DIN 20.  |

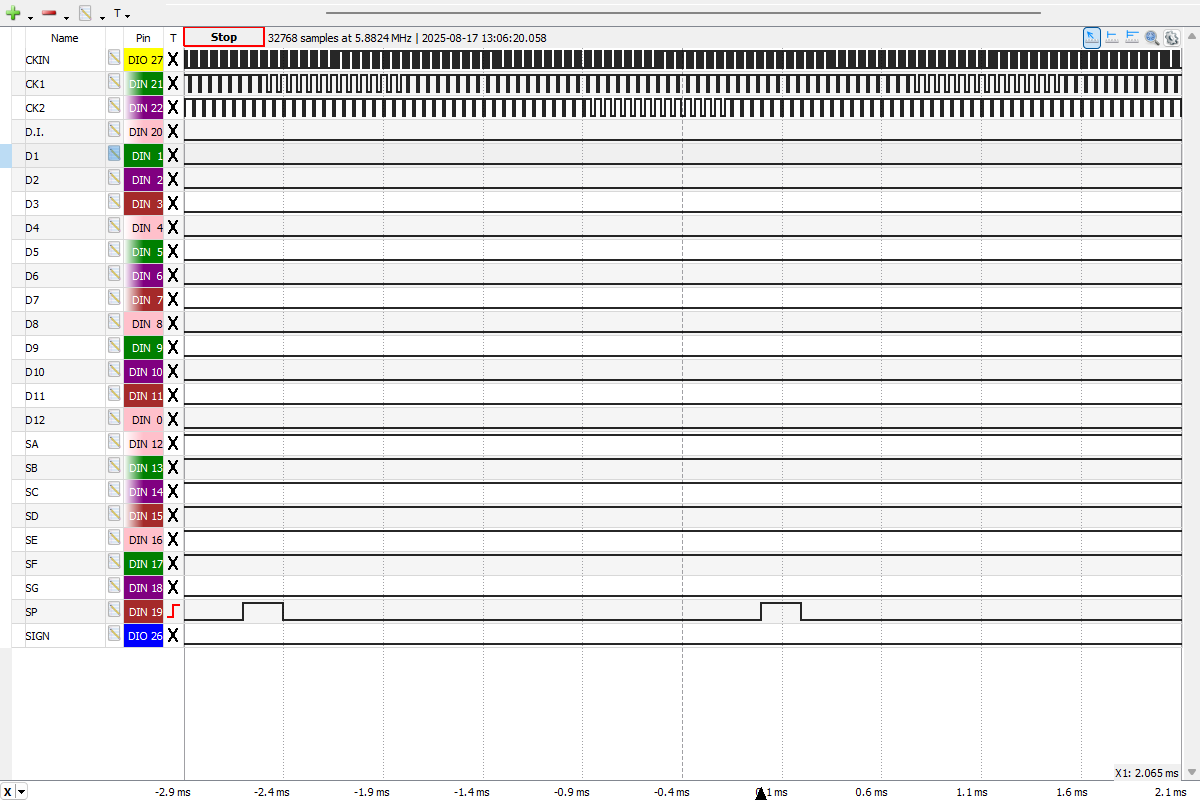

| Clock Input, Digit Output, Segment Output
and Sign Output Pins of the CT5002 during Display Inhibit with "-104.679" in the Display Register captured with the Digilent Digital Discovery connected to the DCM-50A Platform. CT5002 Clock Frequency at 40 kHz. Note: D.I. Input by mistake not connected to Digilent Digital Discovery Input DIN 20.  |
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, June 29, 2026. No reprints without written permission.
