Additional Pictures

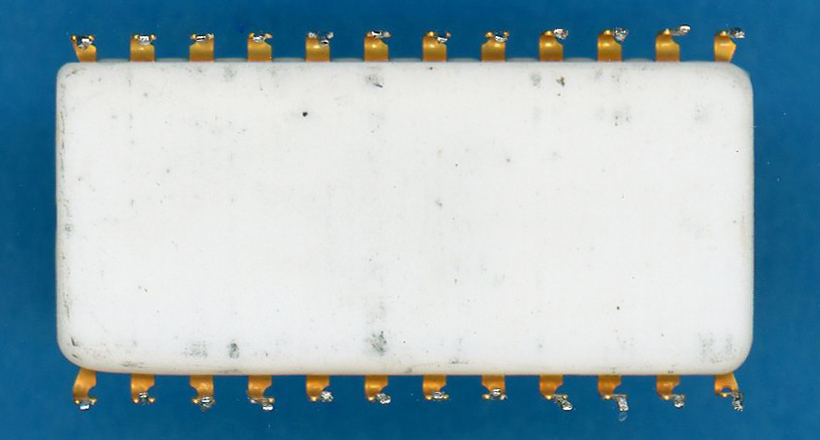

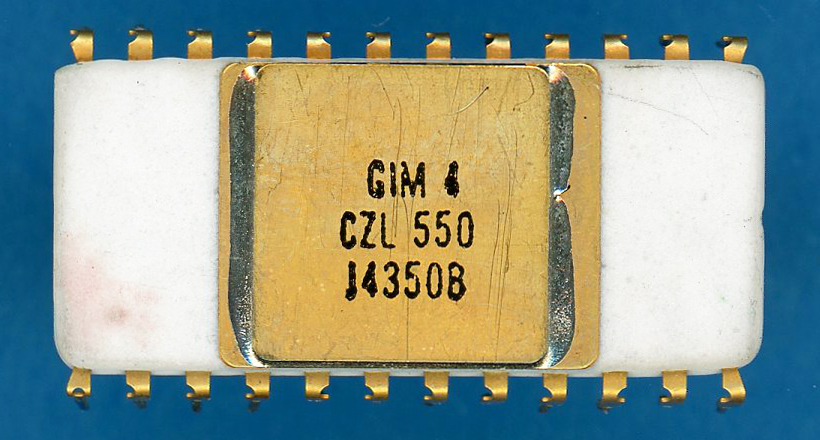

| Close-up view
of the CZL-550 single-chip calculator circuit used with the Gilette GPA
Prototype manufactured in August 1974. PMOS Technology, 24-pin Ceramic DIP RISC Processor, 72*27 to 63 Bits Instruction ROM, 3*44 Bits + 1*9 Bits Data SAM.   |

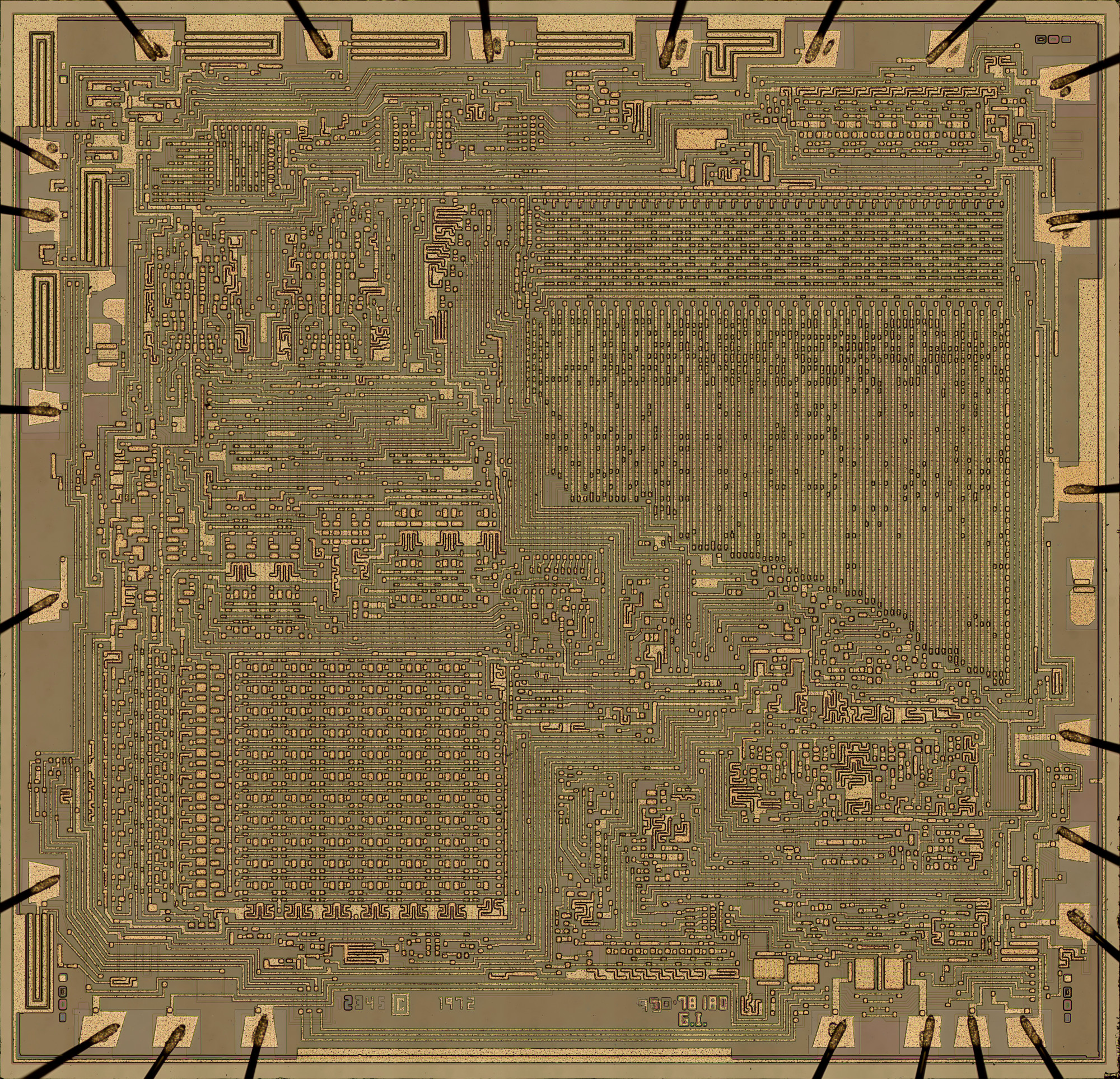

Die Photo of the
CZL-550
courtesy of Sean Riddle. |

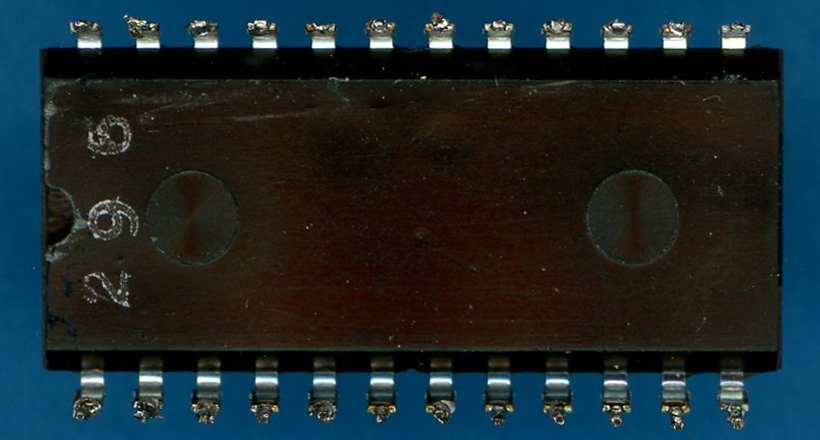

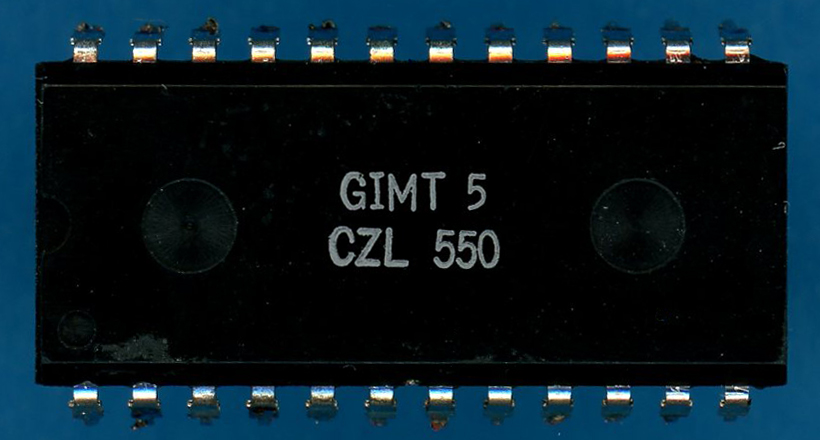

| Close-up view
of the CZL-550 single-chip calculator circuit used with the Radofin Model
2200 manufactured in May 1974. PMOS Technology, 24-pin Plastic DIP RISC Processor, 72*27 to 63 Bits Instruction ROM, 3*44 Bits + 1*9 Bits Data SAM.   |
