Additional Pictures

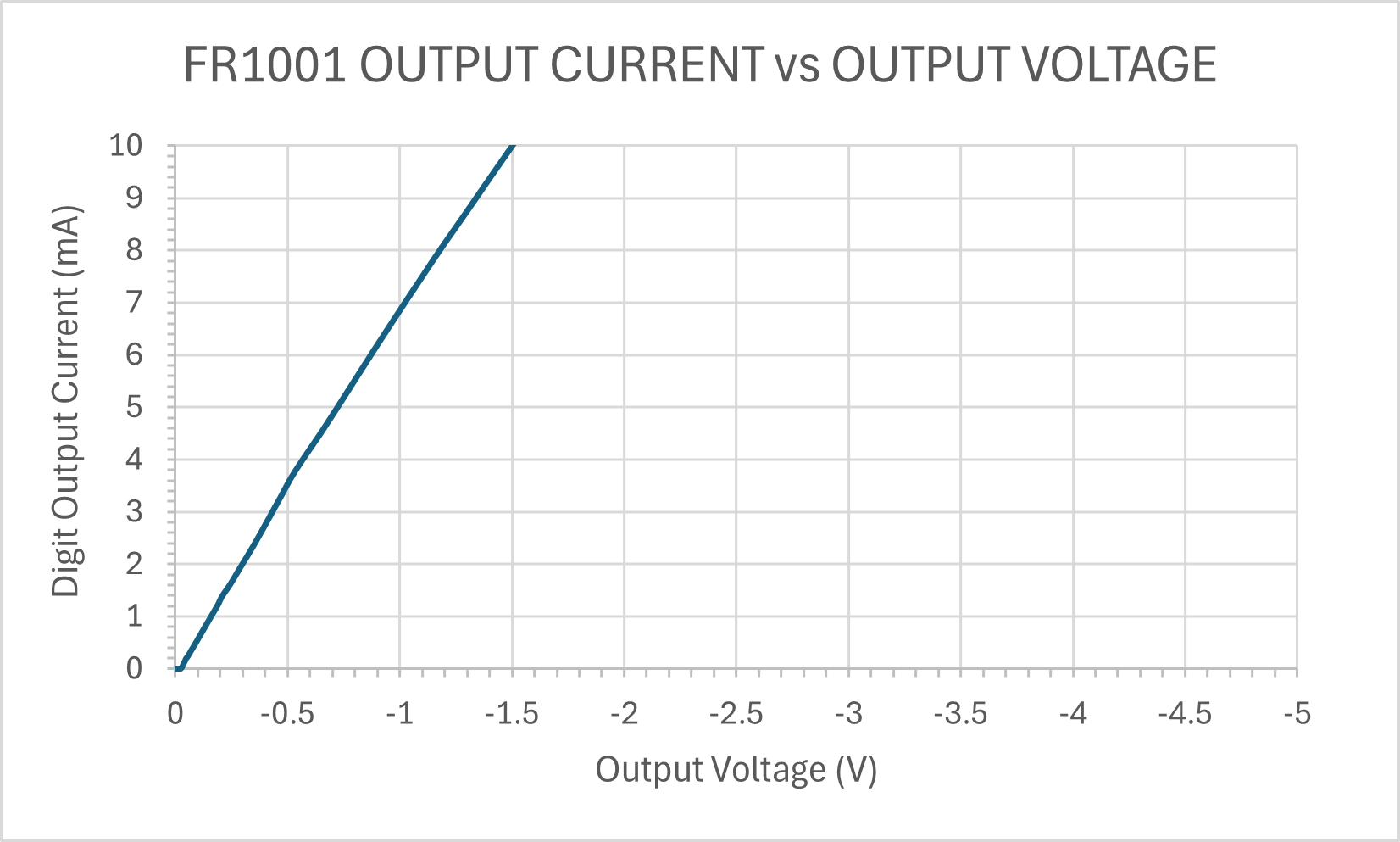

Output Current vs Output Voltage of a FR1001 Digit Output driver.
DUT: FR1001 7344 @ VDD = -15 V.

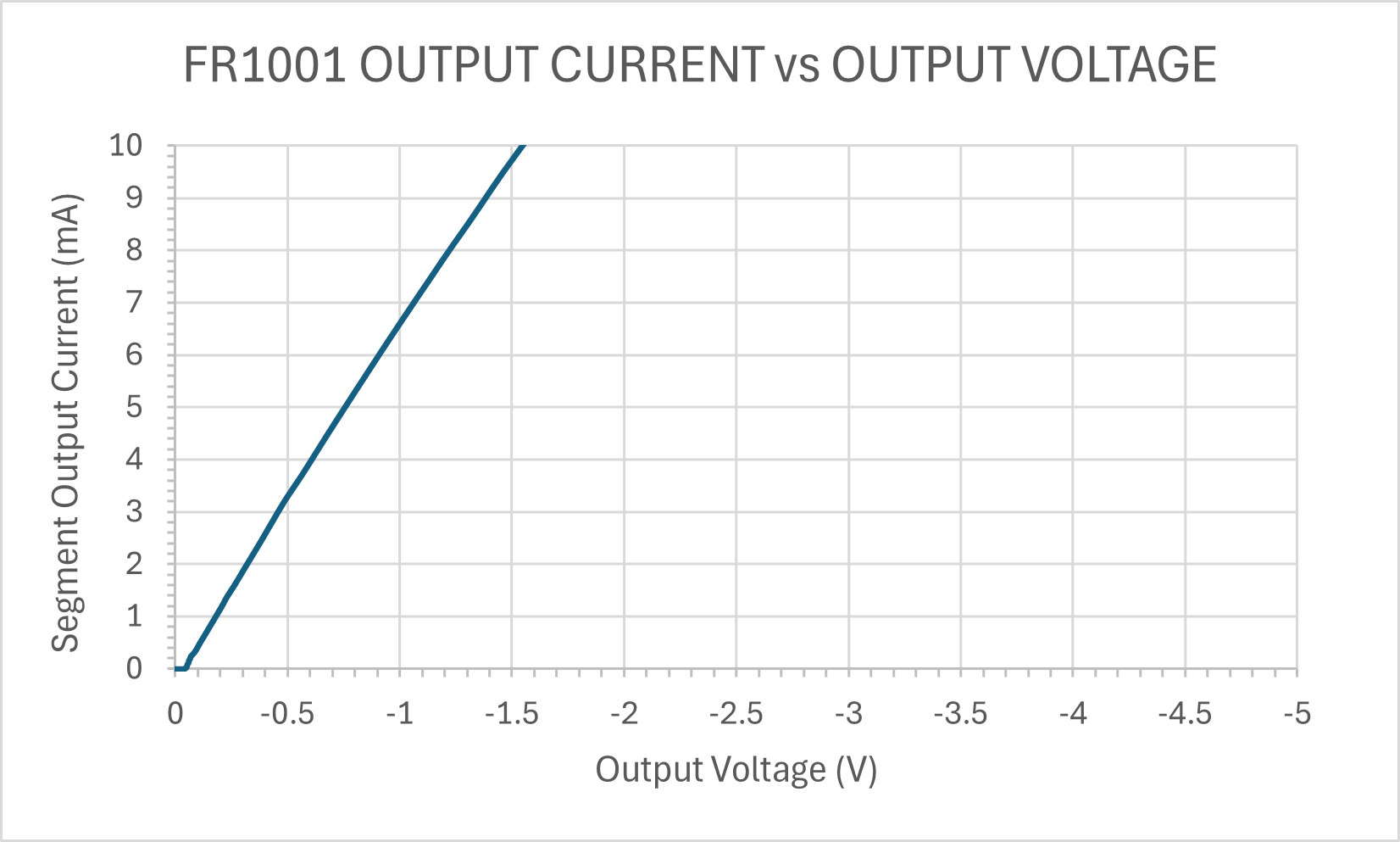

Output Current vs Output Voltage of a FR1001 Segment Output driver.
DUT: FR1001 7344 @ VDD = -15 V.
