Additional Pictures

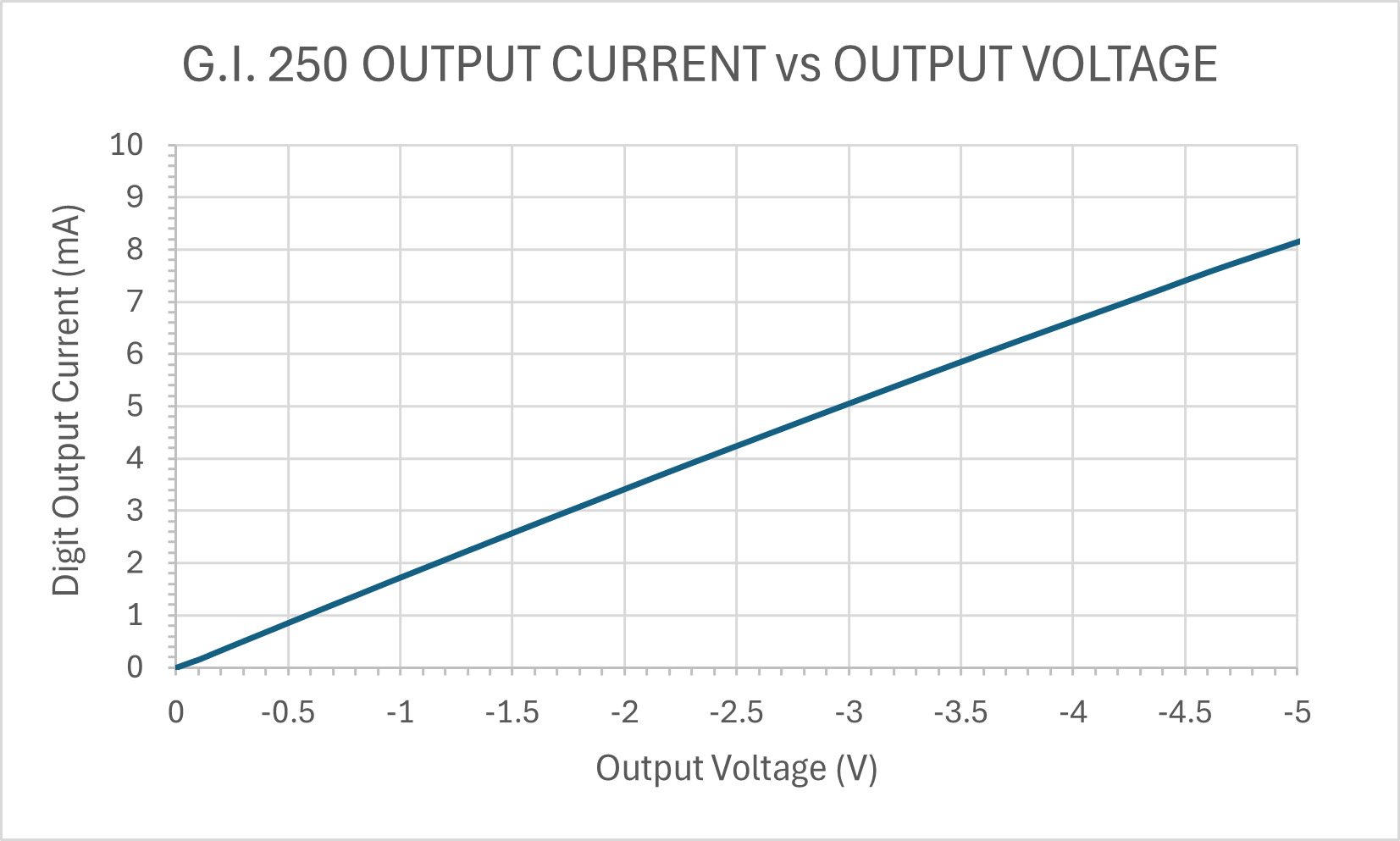

| Output Current vs
Output Voltage of a GI 250 Digit Output driver. DUT: GI 250 7211 @ VDD = -25 V.  |

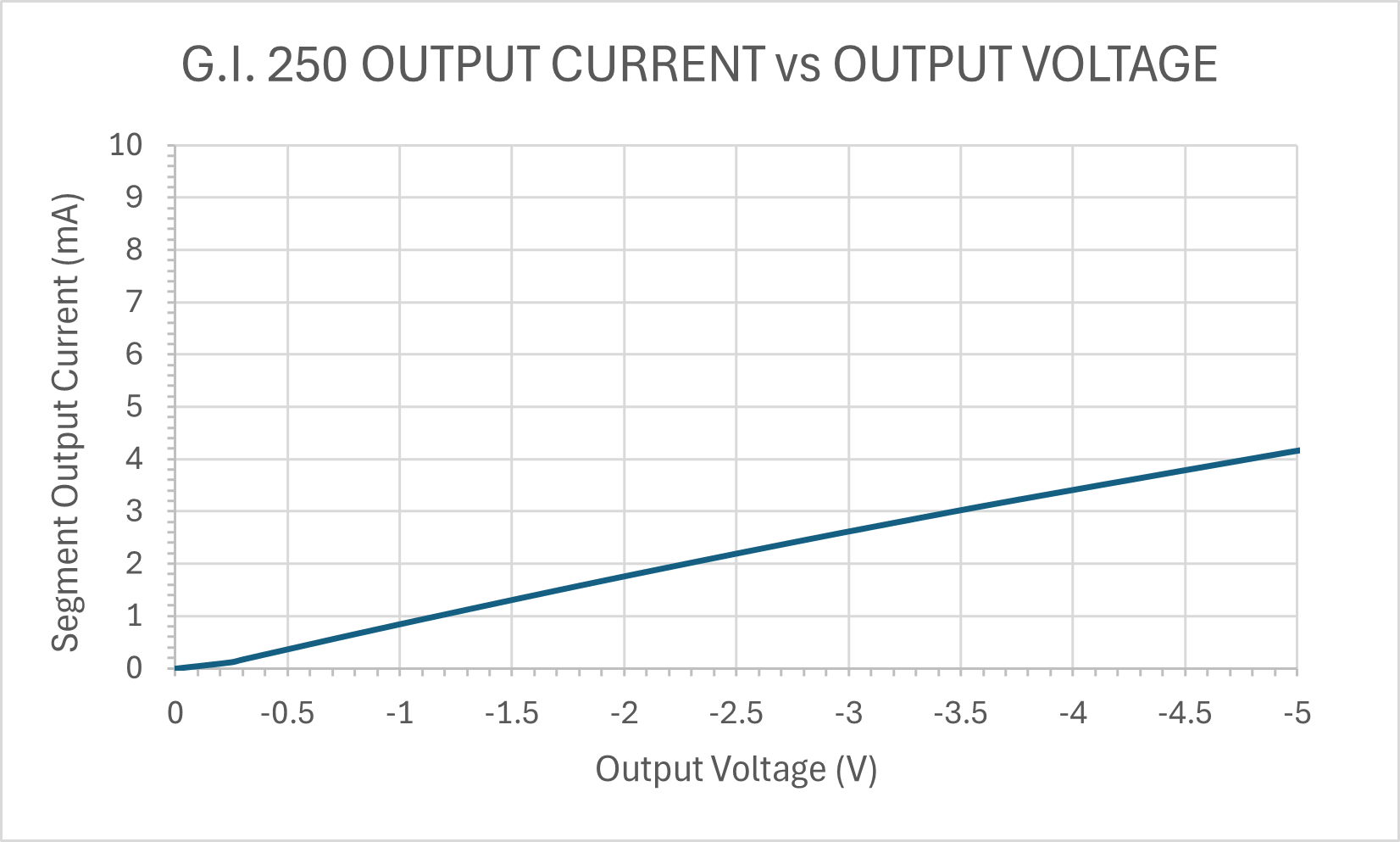

| Output Current vs
Output Voltage of a GI 250 Segment Output driver. DUT: GI 250 7211 @ VDD = -25 V.  |

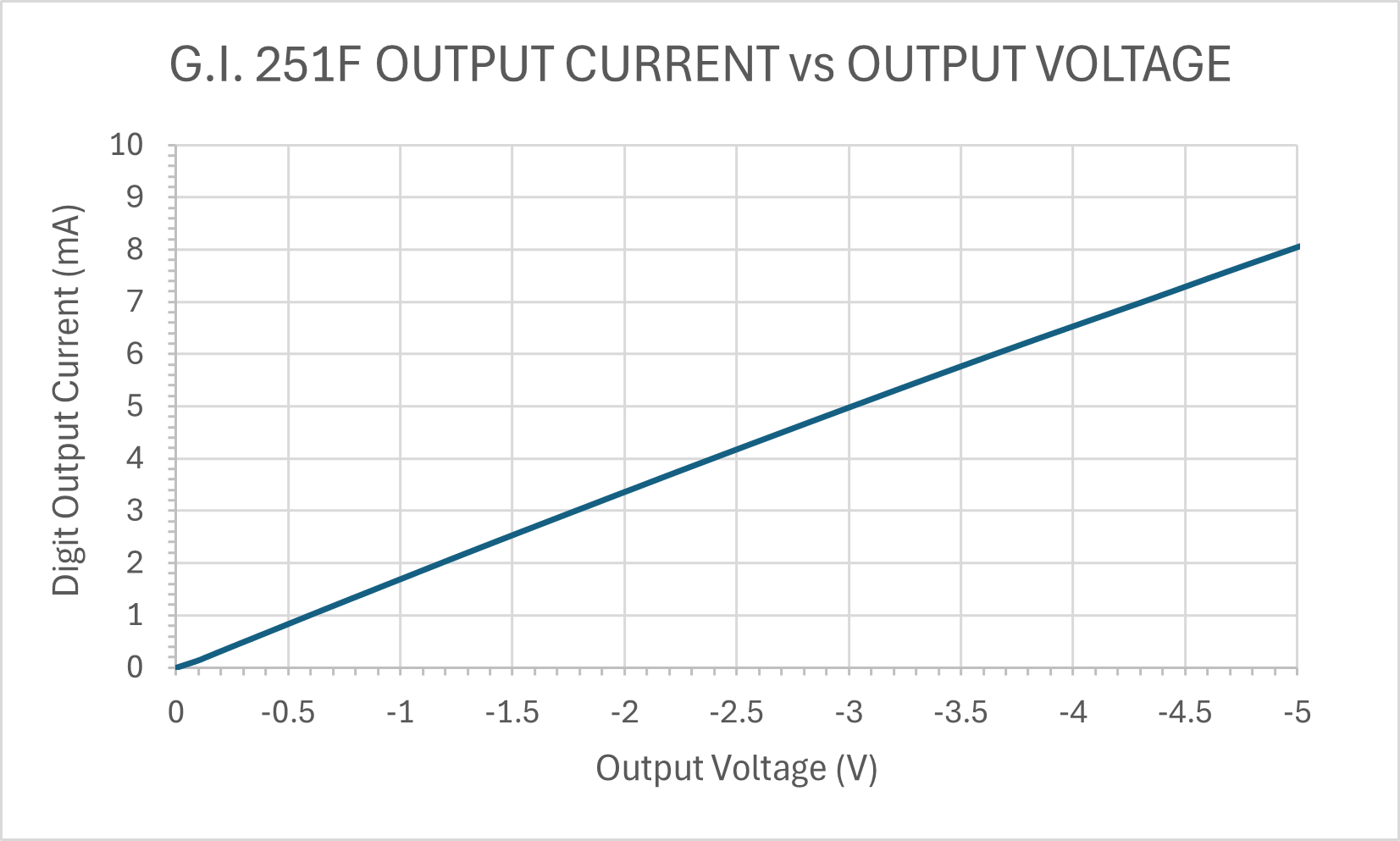

| Output Current vs
Output Voltage of a GI 251F Digit Output driver. DUT: GI 251F 7213 @ VDD = -25 V.  |

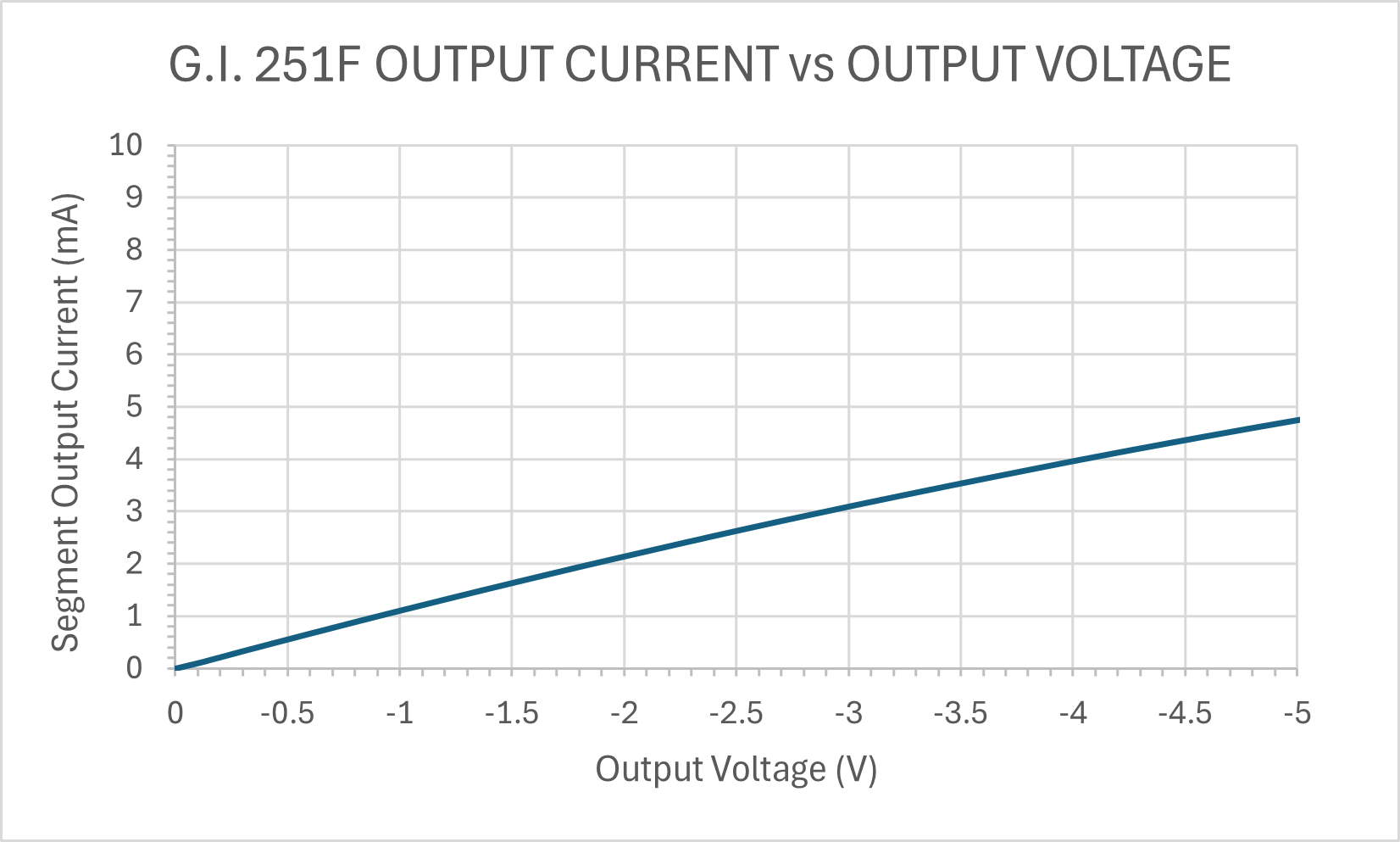

| Output Current vs
Output Voltage of a GI 251F Segment Output driver. DUT: GI 251F 7213 @ VDD = -25 V.  |
