Additional Pictures

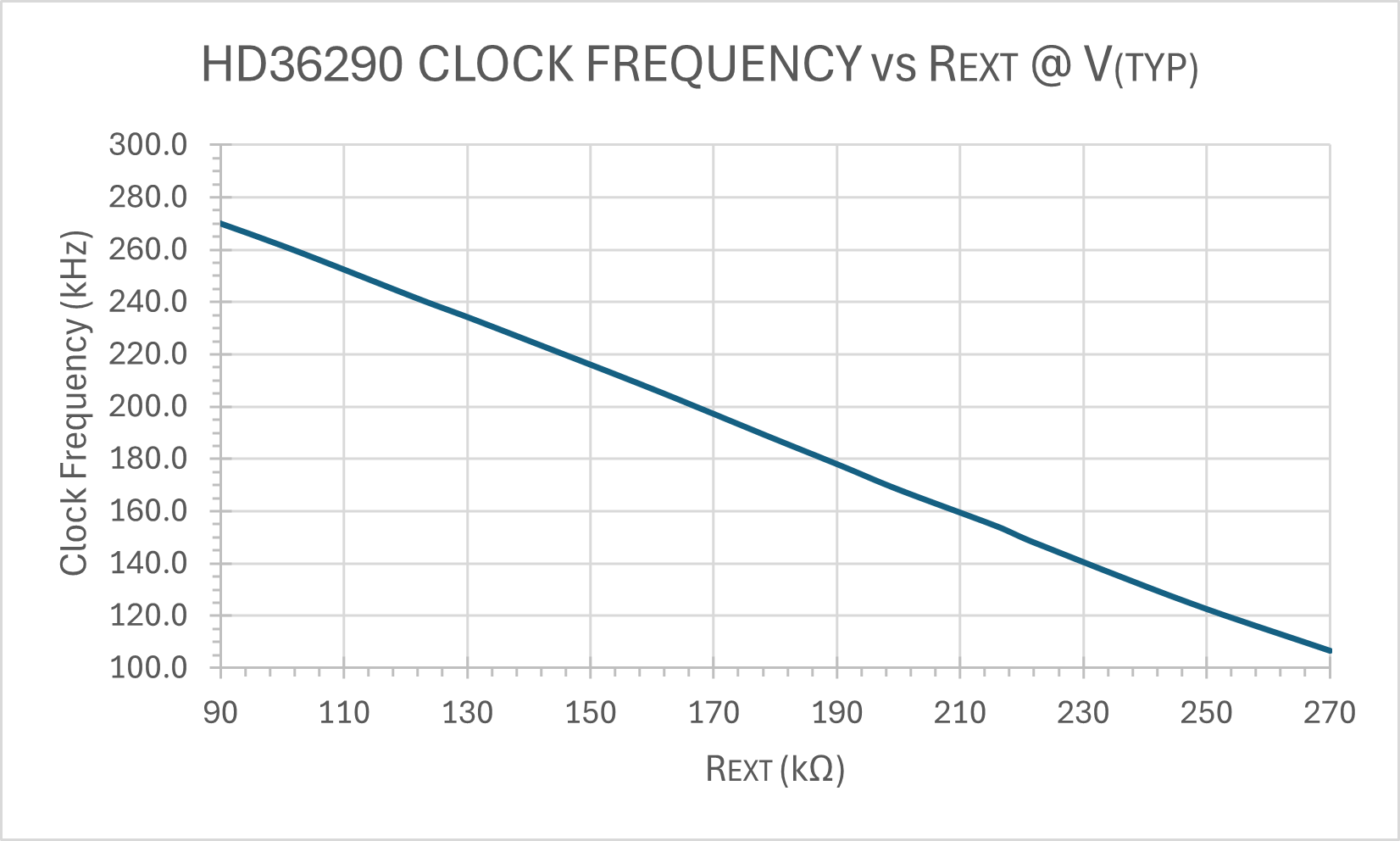

Clock Frequency vs External Resistor of a HD36290 single-chip calculator circuit.
DUT: HD36290 5D 21 @ VDD = -7.0 V, VGG = -15.0 V.

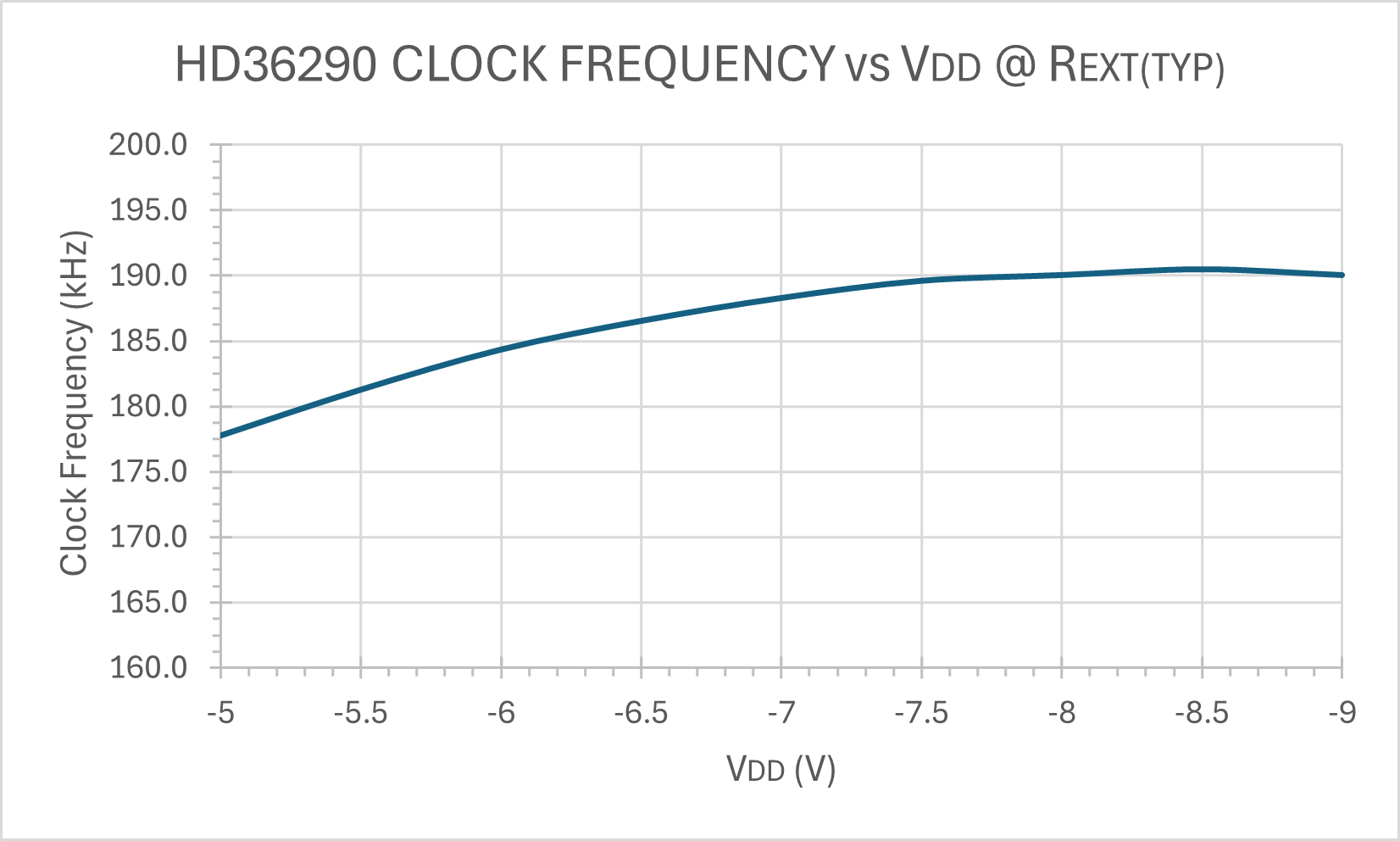

Clock Frequency vs VDD Supply Voltage of a HD36290 single-chip calculator circuit.
DUT: HD36290 5D 21 @ VGG = -15.0 V, REXT = 180 kOhm.

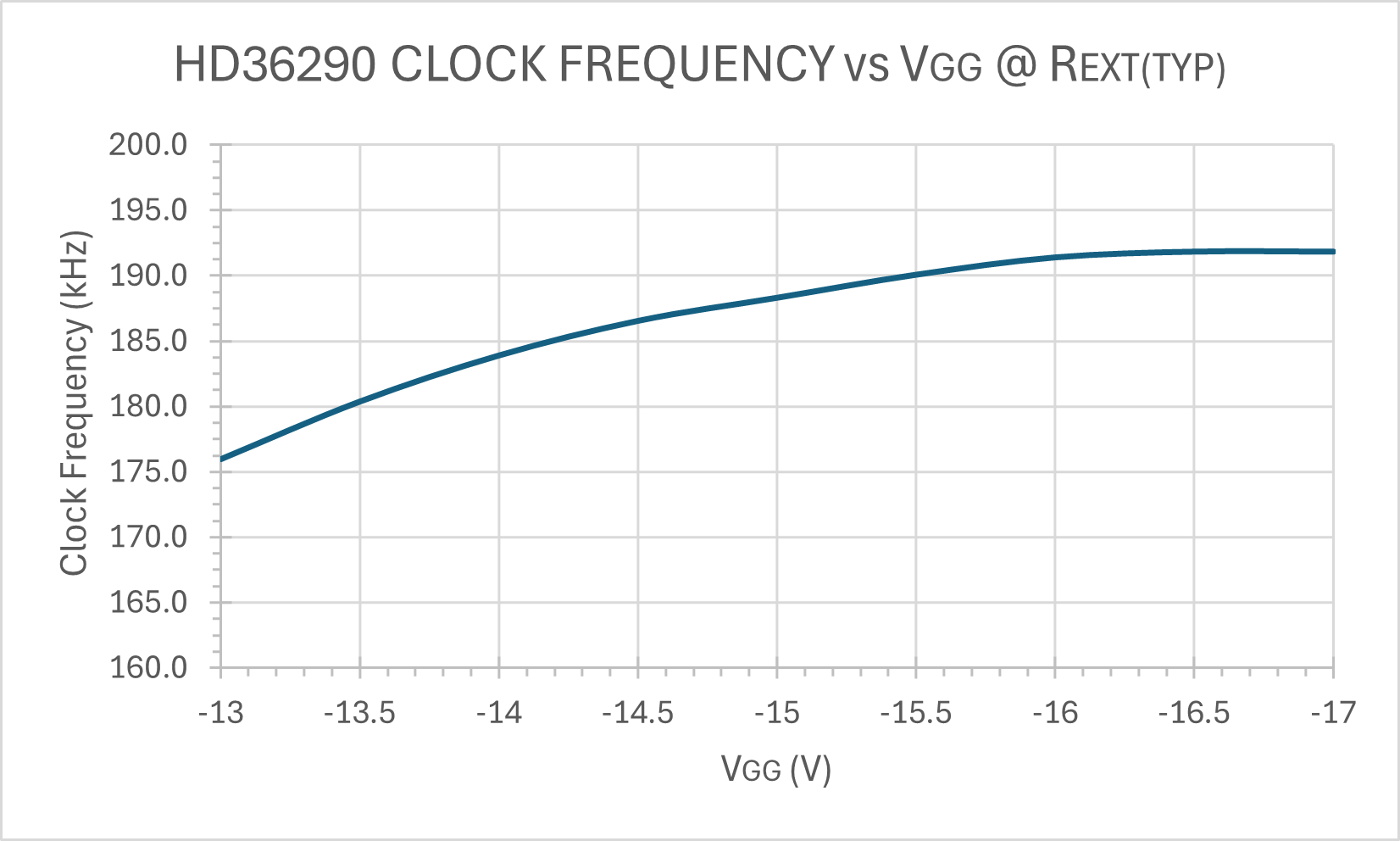

Clock Frequency vs VGG Supply Voltage of a HD36290 single-chip calculator circuit.
DUT: HD36290 5D 21 @ VDD = -7.0 V, REXT = 180 kOhm.
