Additional Pictures

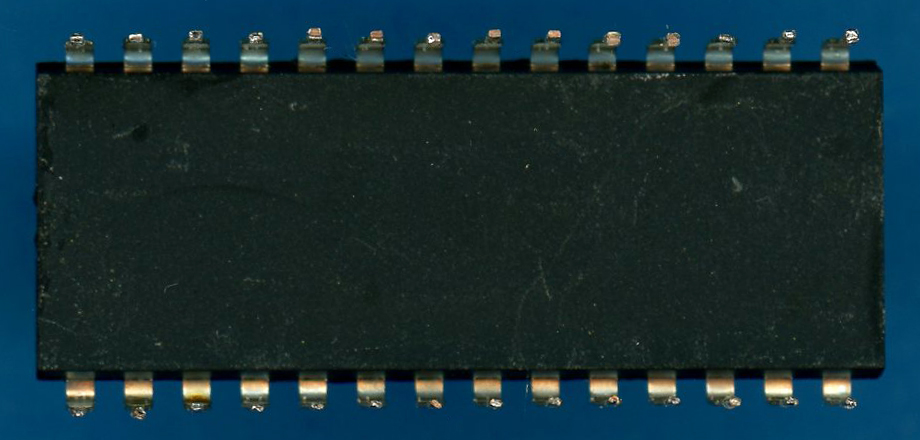

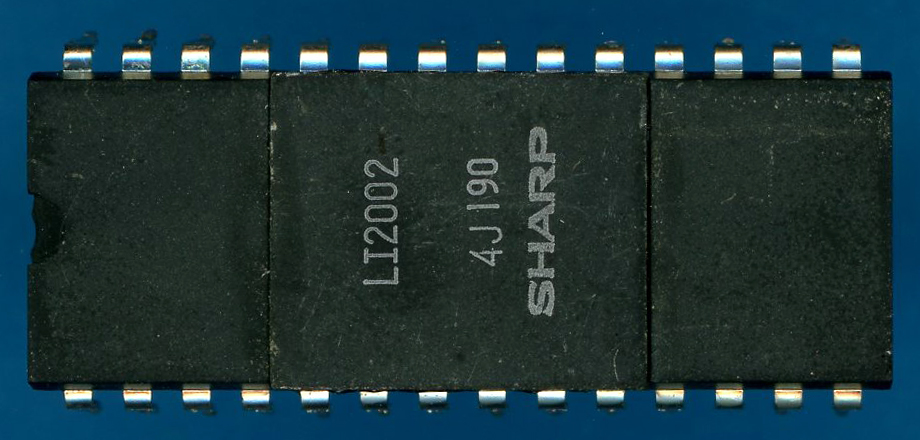

| Close-up view
of the LI2002 single-chip calculator circuit used with the Lloyd's
Accumatic 30 (Model EH-9036, Type 255). PMOS Technology, 28-pin Ceramic DIP 4-bit serial Register Processor, Hard-wired Instructions, 3*36 Bits Data SAM. Manufactured July 1974.   |
| Close-up view
of the LI2002 single-chip calculator circuit used with the Silver-Reed
SR80. PMOS Technology, 28-pin Ceramic DIP 4-bit serial Register Processor, Hard-wired Instructions, 3*9*4 Bits Data SAM. Manufactured September 1974.   |

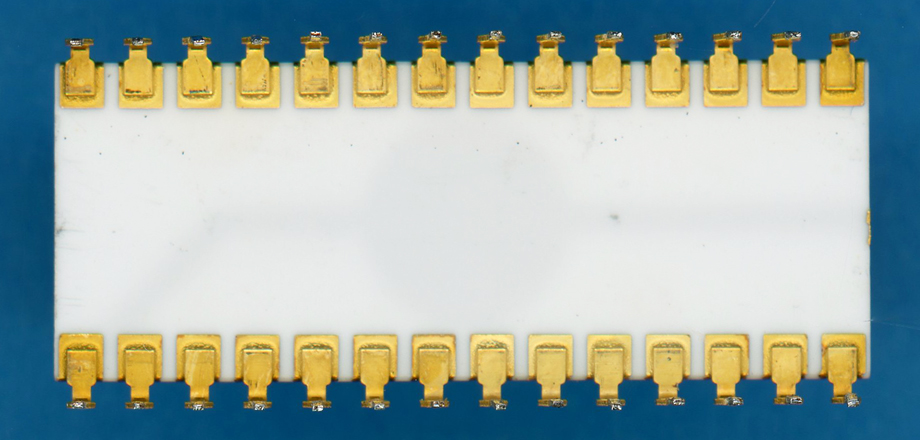

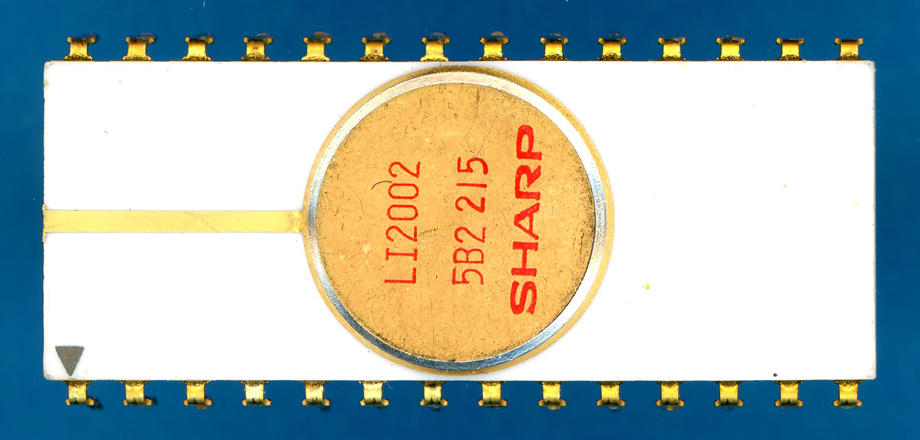

| Close-up view
of the LI2002 single-chip calculator circuit used with the Lloyd's
Accumatic 30 (Model EH-9036, Type 255B). PMOS Technology, 28-pin Ceramic DIP 4-bit serial Register Processor, Hard-wired Instructions, 3*9*4 Bits Data SAM. Manufactured February 1975.   |

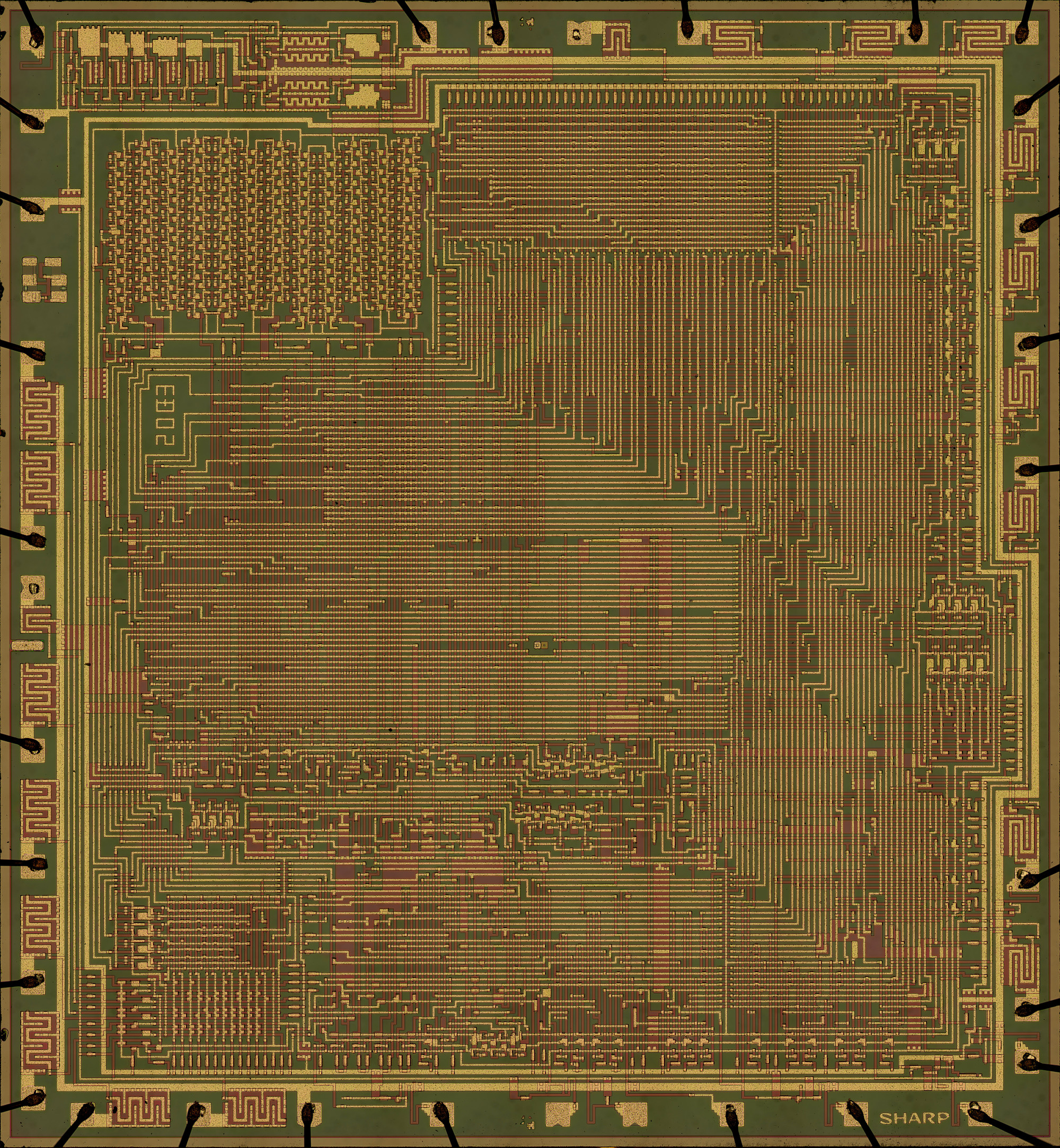

Die Photo of the
LI2002
courtesy of Sean Riddle. |
