Additional Pictures

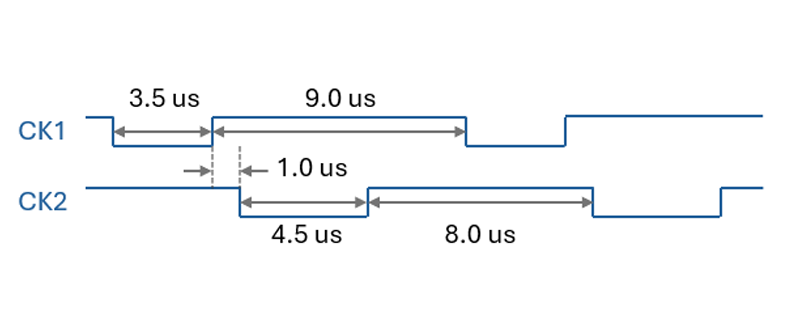

| Two-Phase
Non-Overlapping Clock Outputs
of a LI2002 single-chip calculator circuit. DUT: LI2002 5B2 215 @ VDD = -8.0 V, VGG = -16.0 V, REXT = 100 kOhm.  |

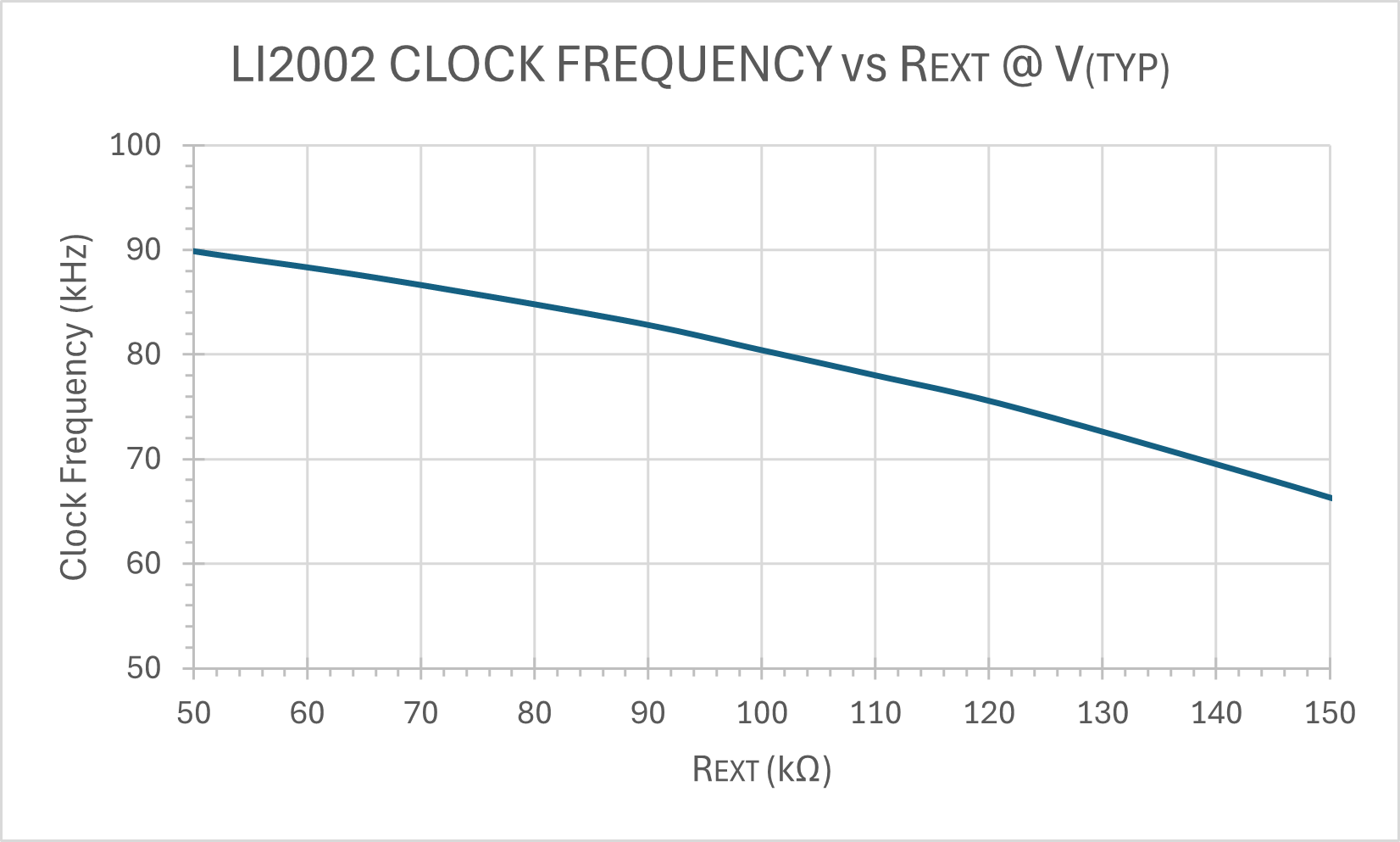

| Clock Frequency vs External Resistor
of a LI2002 single-chip calculator circuit. DUT: LI2002 5B2 215 @ VDD = -8.0 V, VGG = -16.0 V.  |

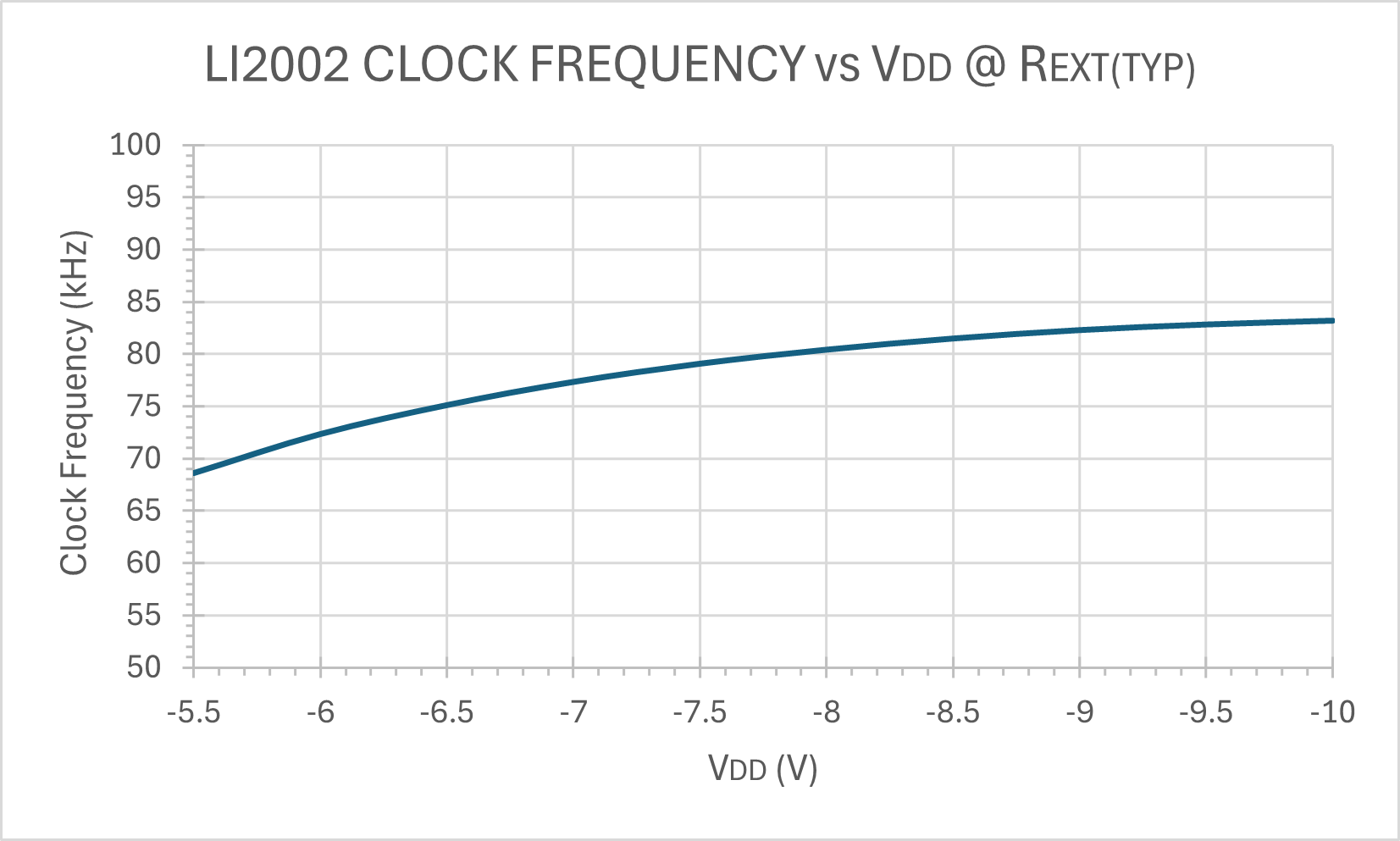

| Clock Frequency vs VDD/VGG Supply Voltage
of a LI2002 single-chip calculator circuit. DUT: LI2002 5B2 215 @ VGG = 2 x VDD, REXT = 100 kOhm.  |
