Additional Pictures

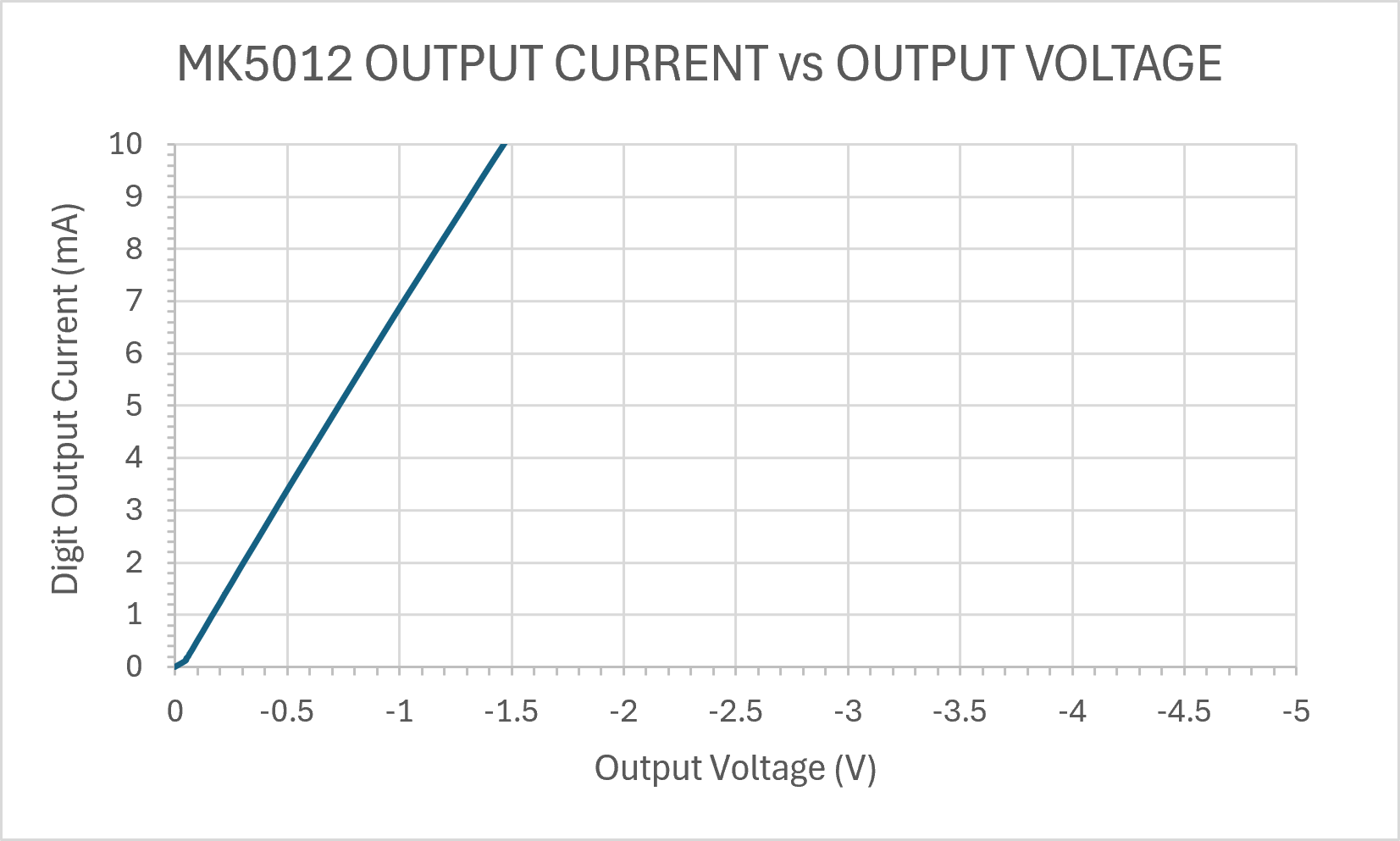

Output Current vs Output Voltage of a MK6010L Digit Output driver.
DUT: MK5012P 7321KRS @ VDD = -9 V, VGG = -16 V.

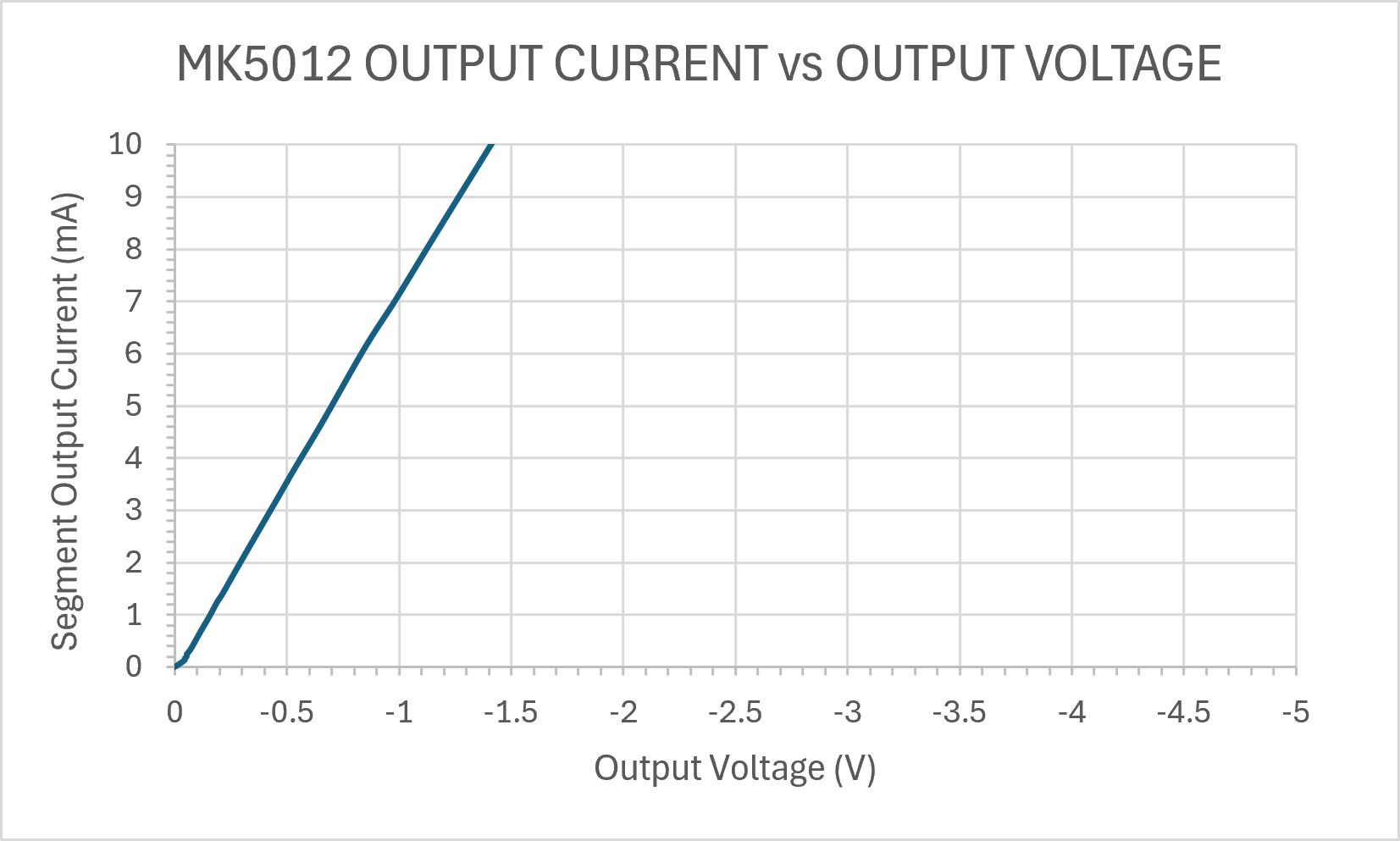

Output Current vs Output Voltage of a MK6010L Segment Output driver.
DUT: MK5012P 7321KRSG @ VDD = -9 V, VGG = -16 V.


If you have additions to the above article please email: joerg@datamath.org.

© Joerg Woerner, June 12, 2026. No reprints without written permission.
