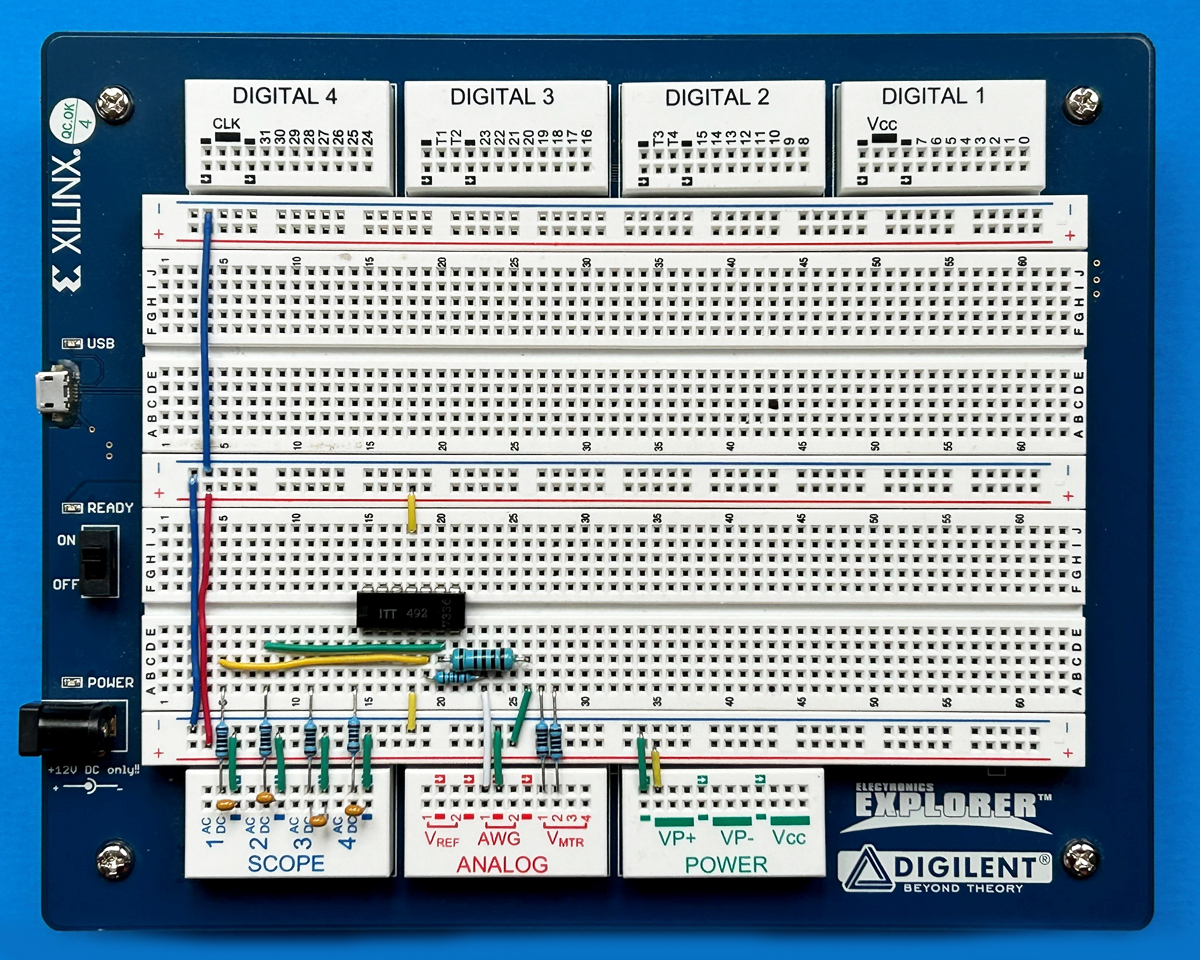

| The Digilent Electronics Explorer
based Automated Test Setup to measure the Output
Voltage vs Input Voltage "Signature" of Digit Drivers. DUT: ITT 492 7336 @ VCC = 9 V, RLOAD = 100 Ohm.  |

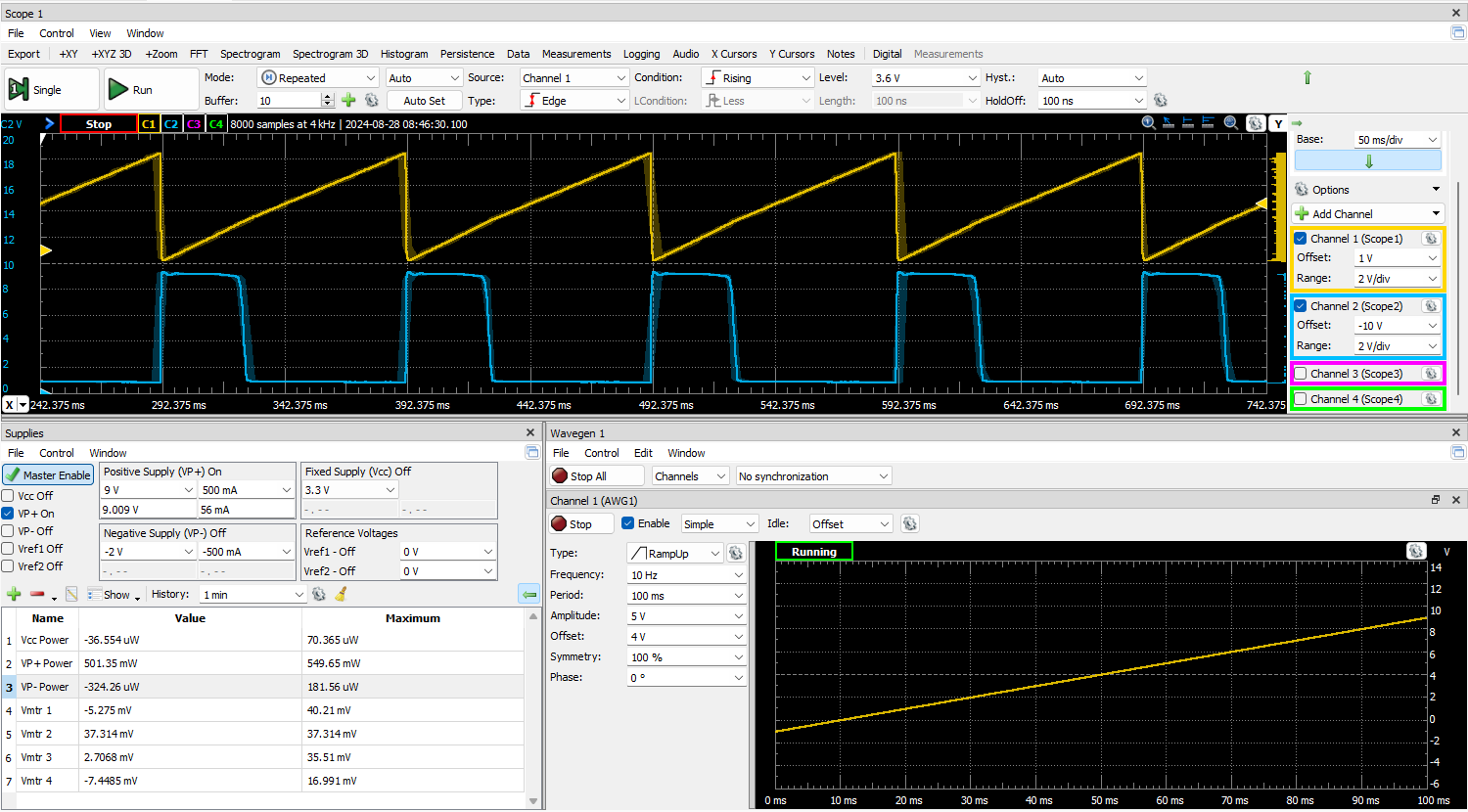

The Digilent WaveForms Tools of the
Automated Test System. Upper Oscilloscope Channel: Input Voltage (-1.0 V
to + 9.0 V), Lower Channel: Output Voltage with RLOAD = 100
Ohm. |
