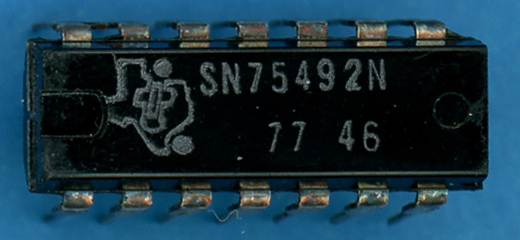

Close-up view of the SN75492 Digit Driver Chip used with the Datamath and other calculators.
Bipolar Technology, 14-pin DIP, 6 * 250 mA Drivers.

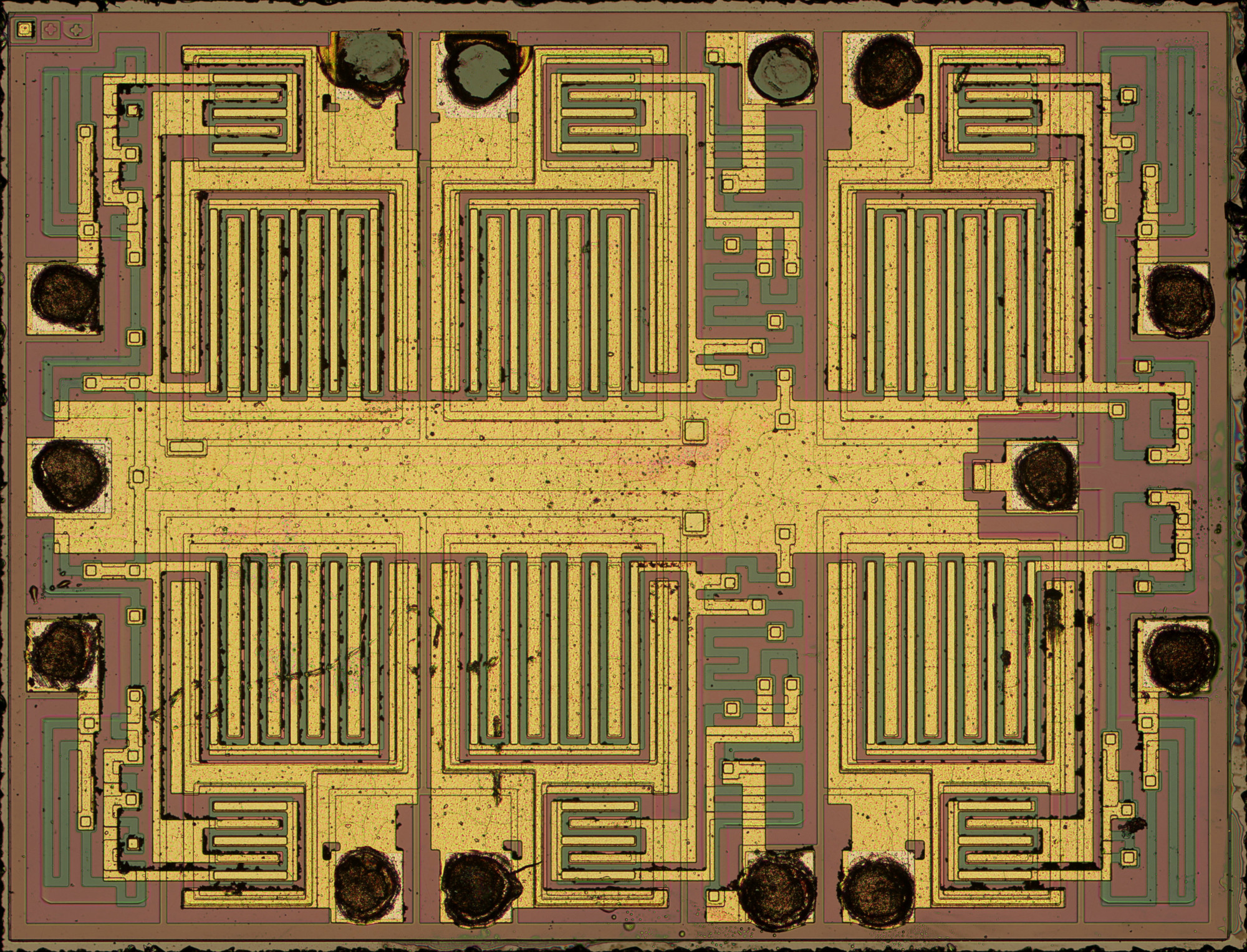

Die Photo of the SN75492 courtesy of Sean Riddle.

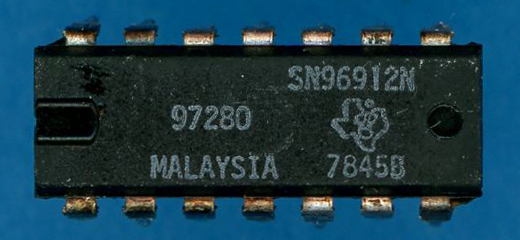

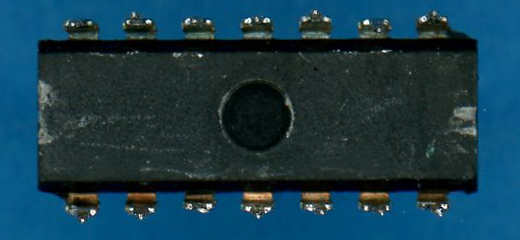

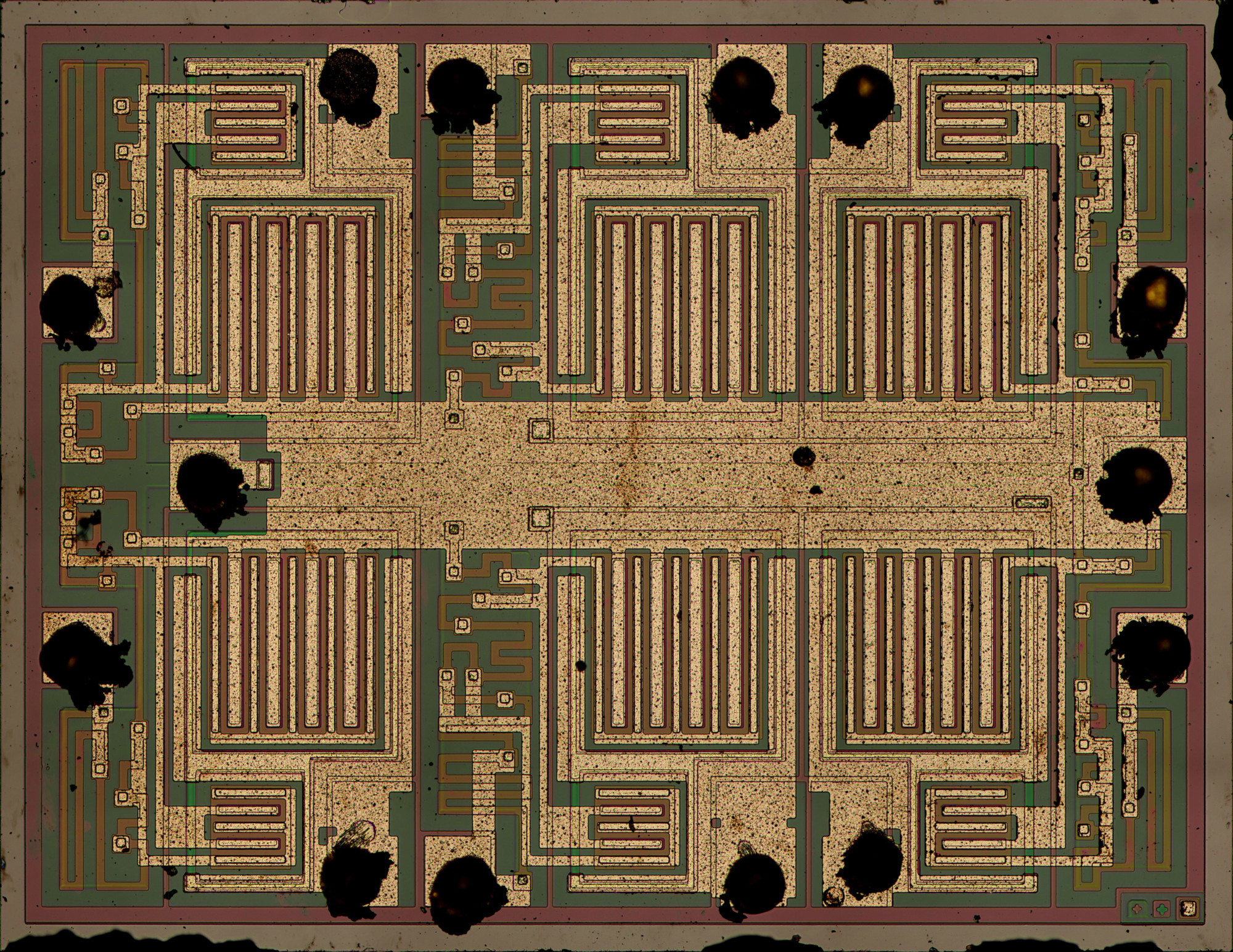

Close-up view of the SN96912 Digit Driver Chip used with the PC-100, PC-100A and TI-5230.
Bipolar Technology, 14-pin DIP, 6 * 250 mA Drivers.



Die Photo of the SN96912 courtesy of Sean Riddle.

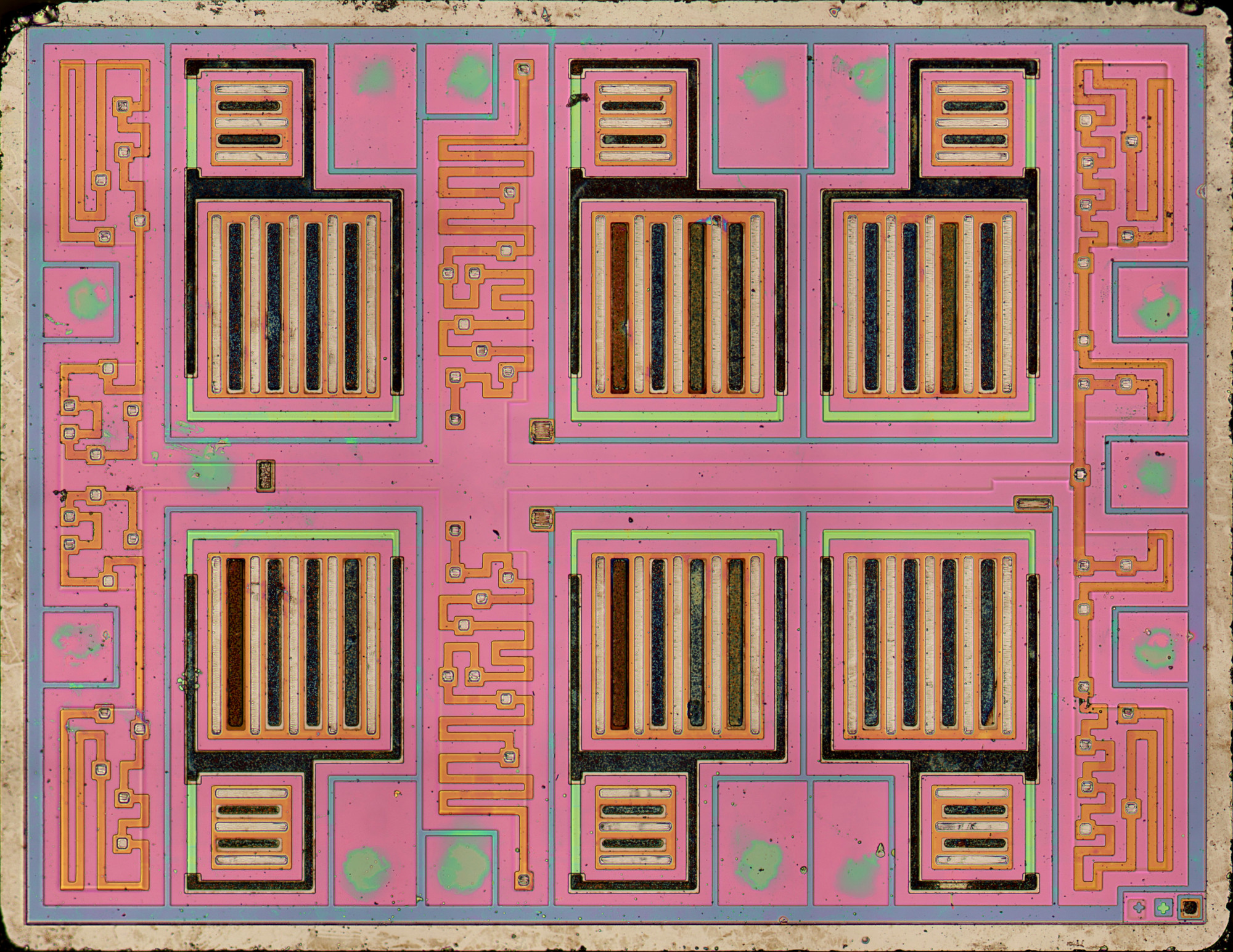

Die Photo (after acid) of the SN96912 courtesy of Sean Riddle.

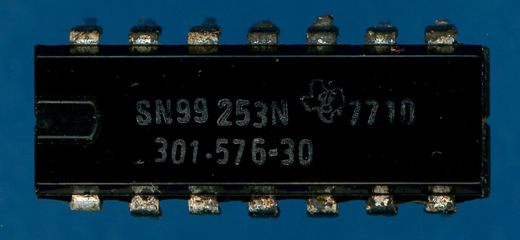

Close-up view of the SN99253 Digit Driver Chip used with the Regency Radio Scanner ACT-T16K.
Bipolar Technology, 14-pin DIP, 6 * 250 mA Drivers.

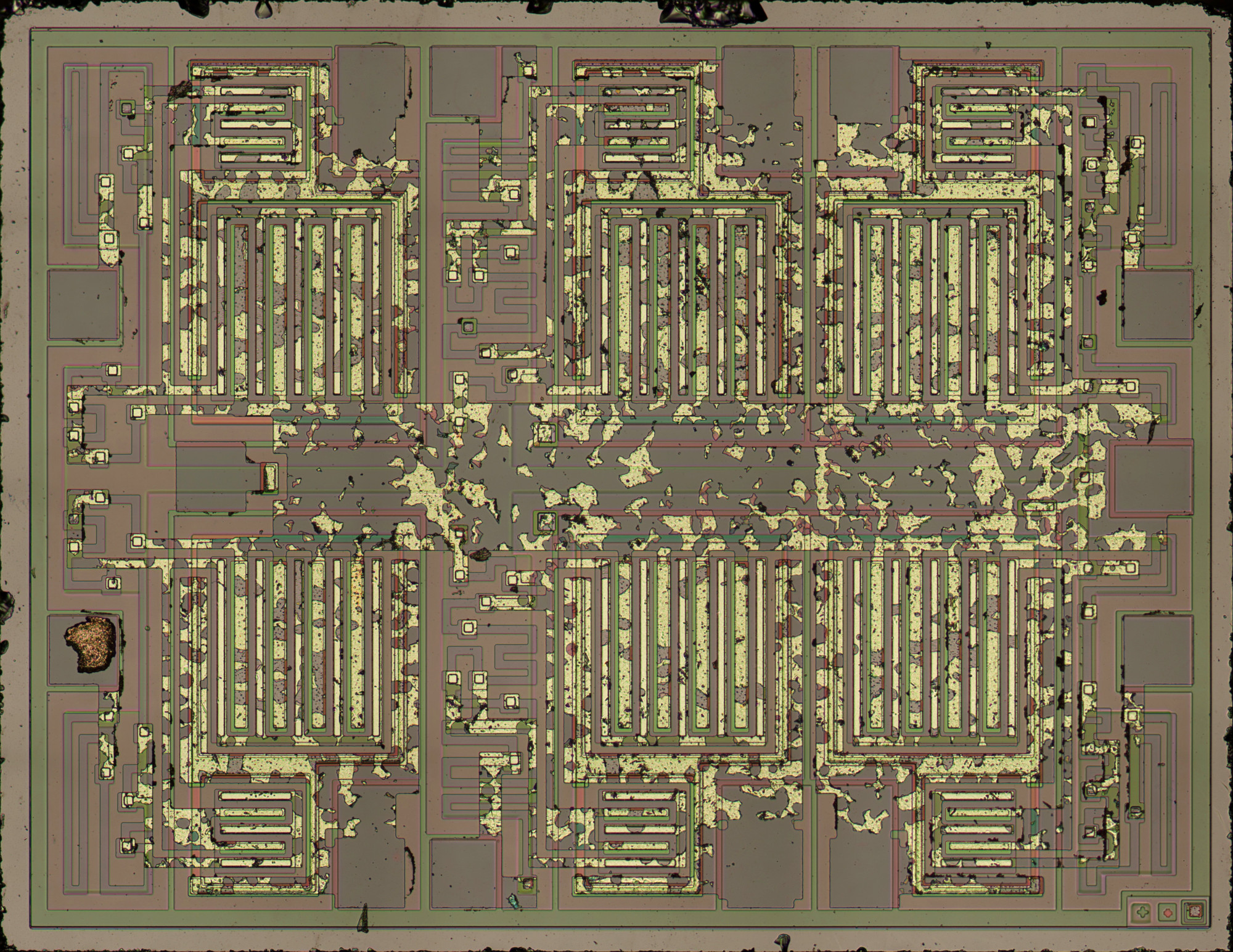

Die Photo of the SN99253 courtesy of Sean Riddle.

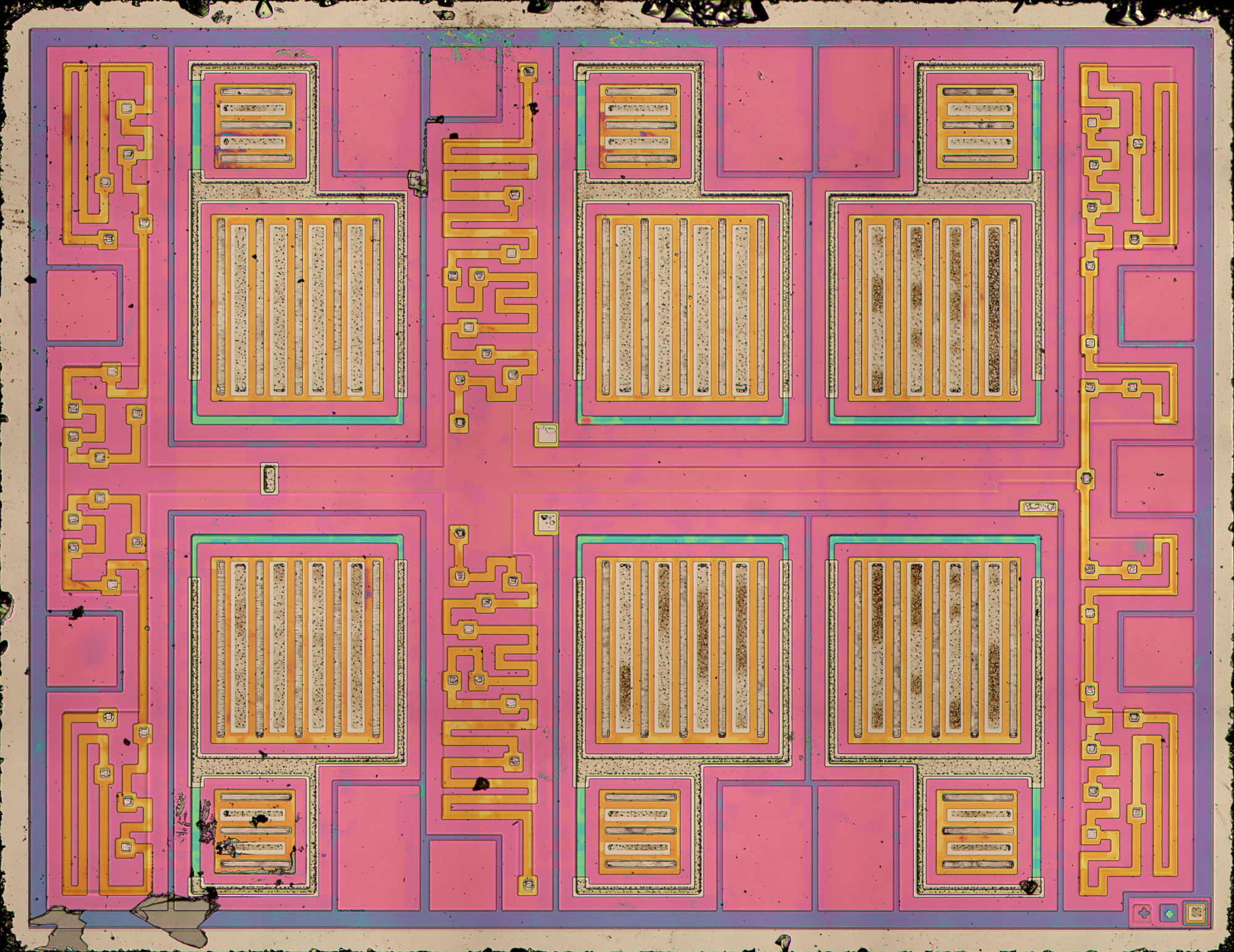

Die Photo (after acid) of the SN99253 courtesy of Sean Riddle.
