Close-up view of the TMC0272 single-chip calculator circuit used with the Spelling B (1st Gen).
PMOS Technology, 40-pin DIP 4-bit Microcontroller, 2,048*9 Bits Instruction ROM, 144*4 Bits Data RAM.

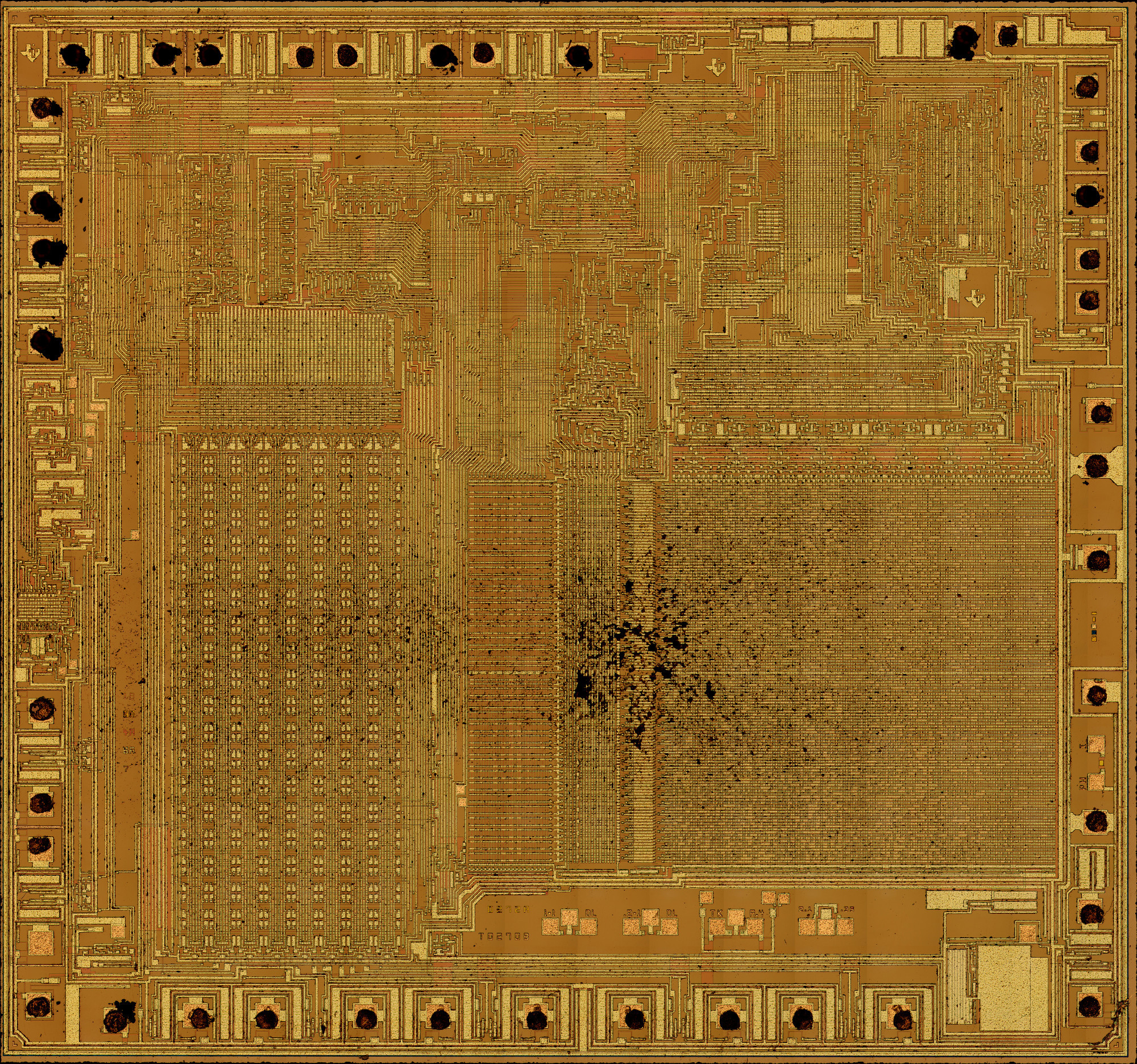

Die Photo of the TMC0272 courtesy of Sean Riddle.

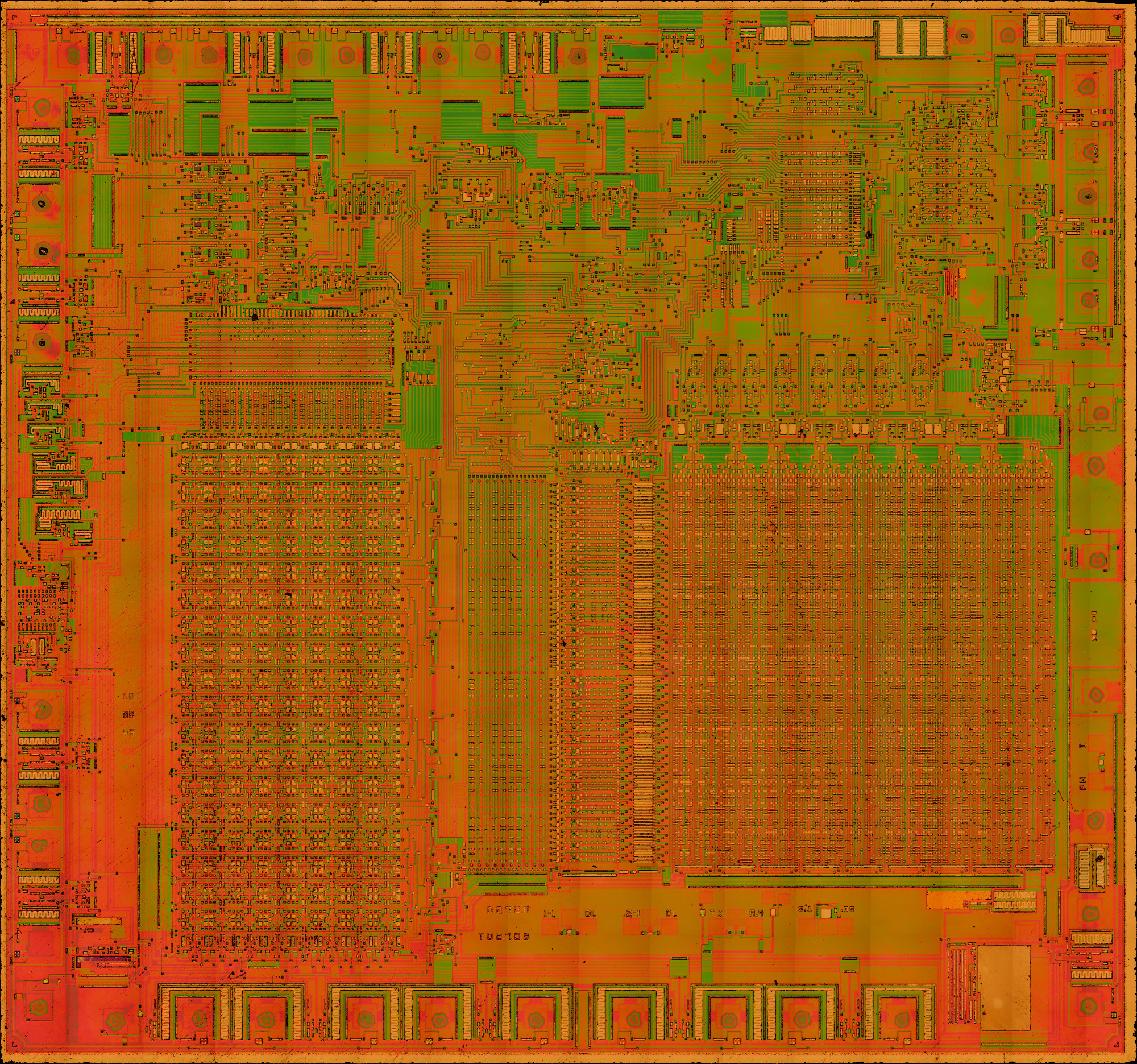

Die Photo (after acid) of the TMC0272 courtesy of Sean Riddle.

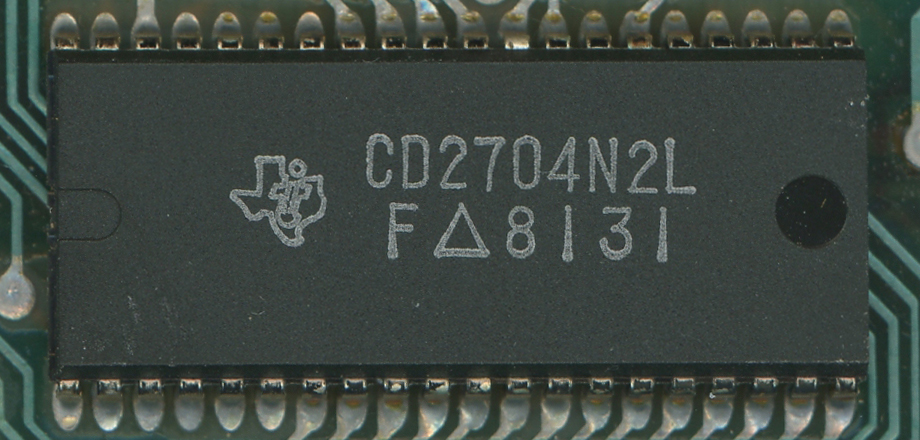

Close-up view of the TMC0274 single-chip calculator circuit used with the Spelling B (2nd Gen).
PMOS Technology, 40-pin DIP 4-bit Microcontroller, 2,048*9 Bits Instruction ROM, 144*4 Bits Data RAM.

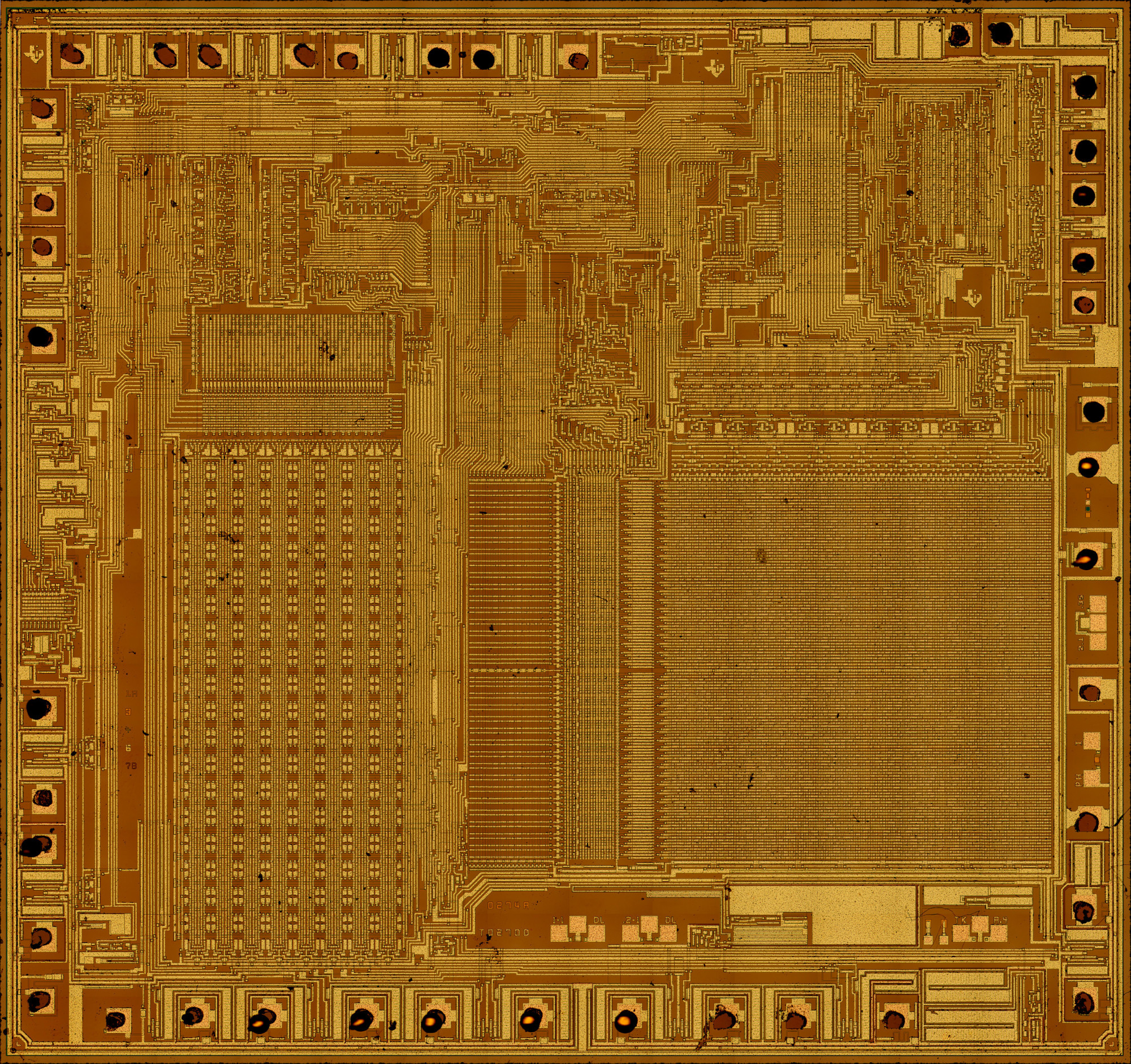

Die Photo of the TMC0274 courtesy of Sean Riddle.

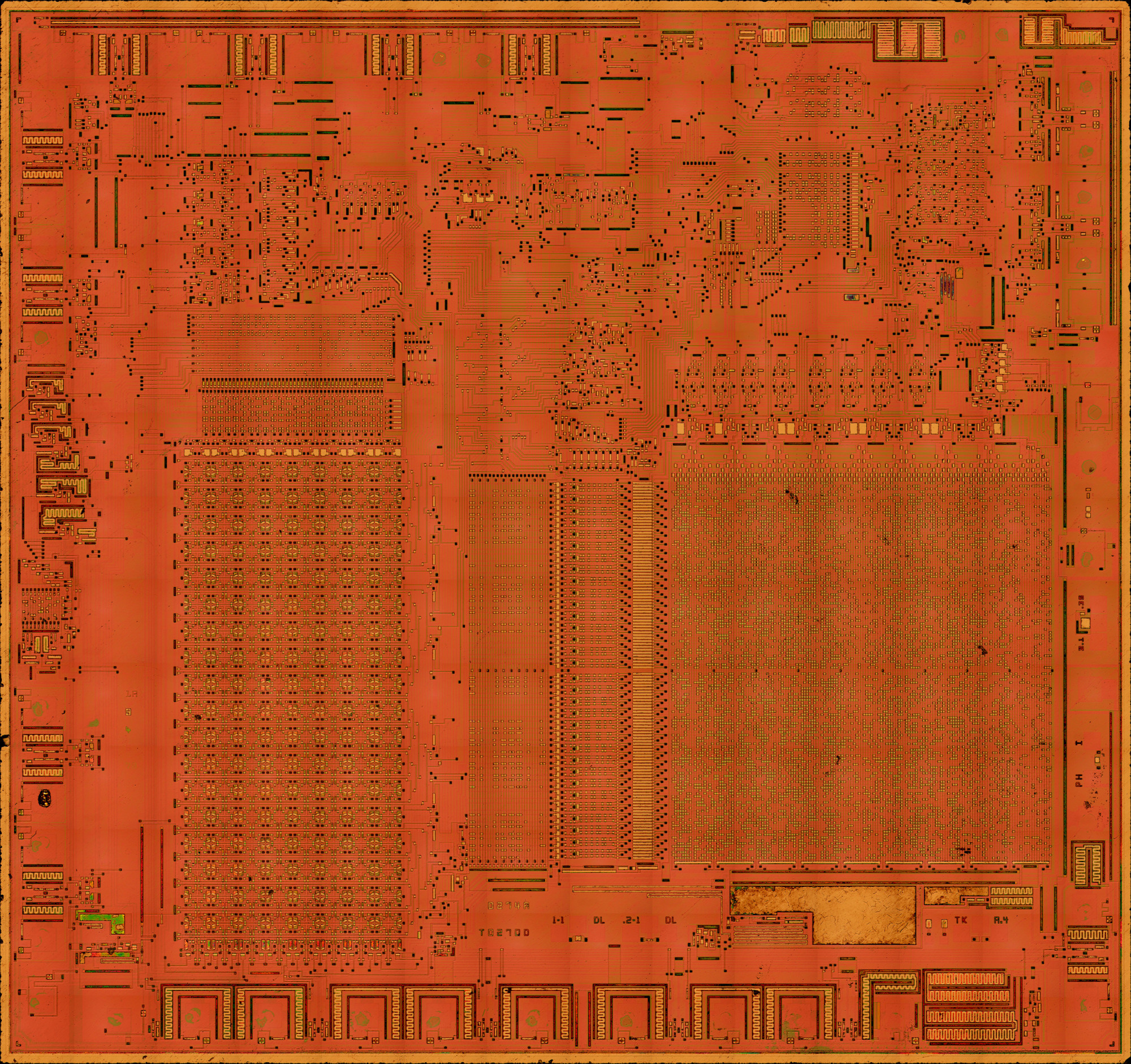

Die Photo (after acid) of the TMC0274 courtesy of Sean Riddle.
