Additional Pictures

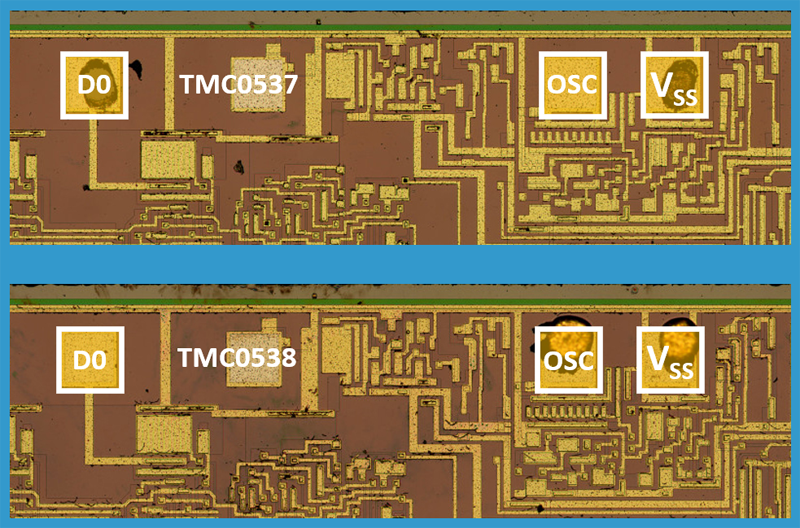

Close-up view of the bond-out options for the clock oscillator of the TMC0530 SCOM (Scanning and Read-Only Memory) Chip.
Die Photos of the TMC0530B/TMC0537 (top) and TMC0530B/0538 (bottom) courtesy of Sean Riddle.
