Close-up view of the TMC0583 DSCOM (Double Scanning and Read-Only Memory) Chip used with the TI-58 and TI-59.
PMOS Technology, 28-pin SPDIP 2.5k*13 Bits Instruction ROM with serial interface to Arithmetic Chip,
16 Constants with 16 digits, each and 16-digit display scanning.

Close-up view of the TMC0580/CD2401 DSCOM (Double Scanning and Read-Only Memory) Chip used with the TI-58C.
PMOS Technology, 28-pin SPDIP 2.5k*13 Bits Instruction ROM with serial interface to Arithmetic Chip,
16 Constants with 16 digits, each and 16-digit display scanning.

Die Photo of the TMC0580/TMC0582 courtesy of Sean Riddle.

Die Photo of the TMC0580/TMC0583 courtesy of Sean Riddle.

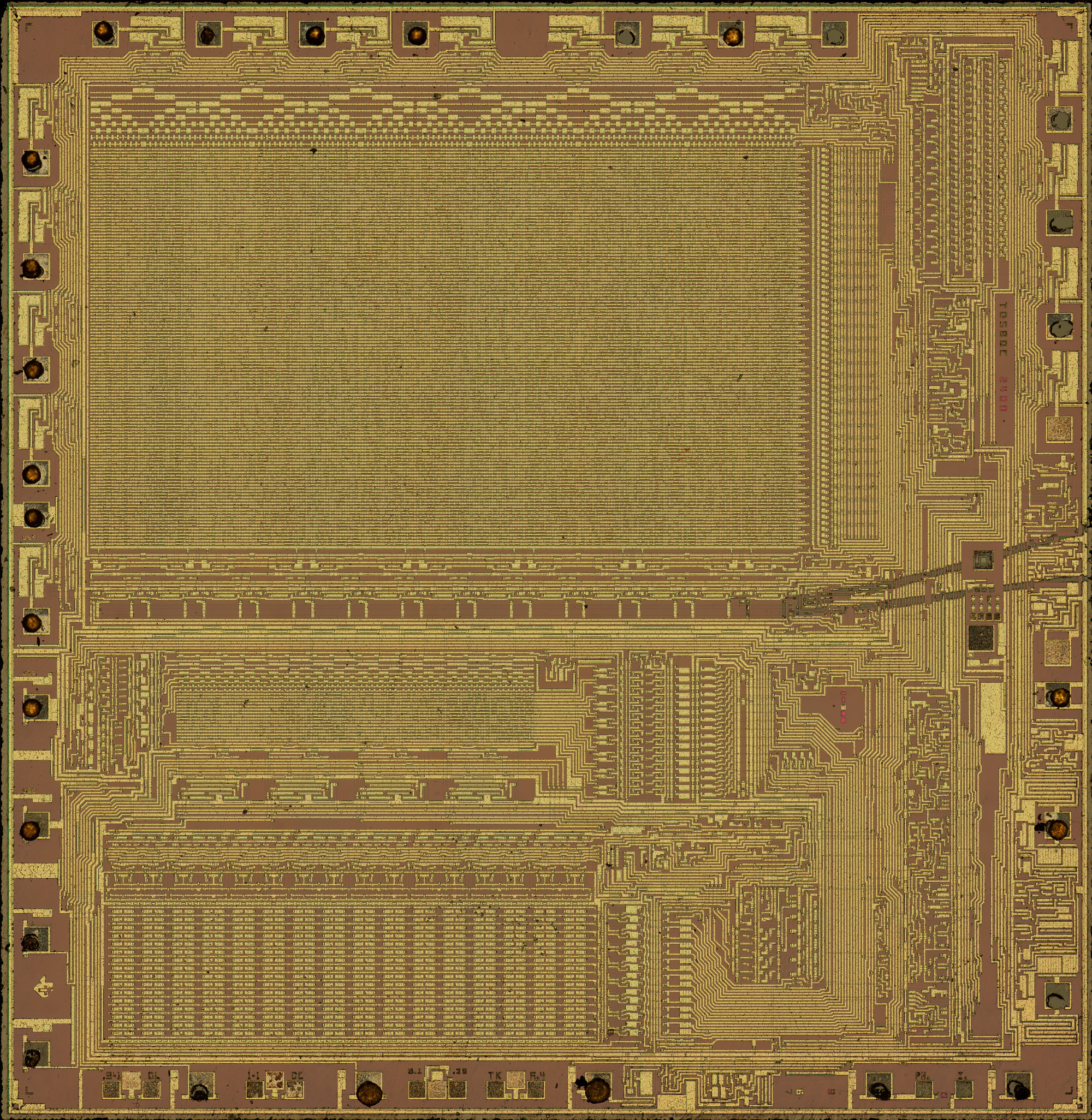

Die Photo of the TMC0580/CD2400 courtesy of Sean Riddle.

Die Photo of the TMC0580/CD2401 courtesy of Sean Riddle.
