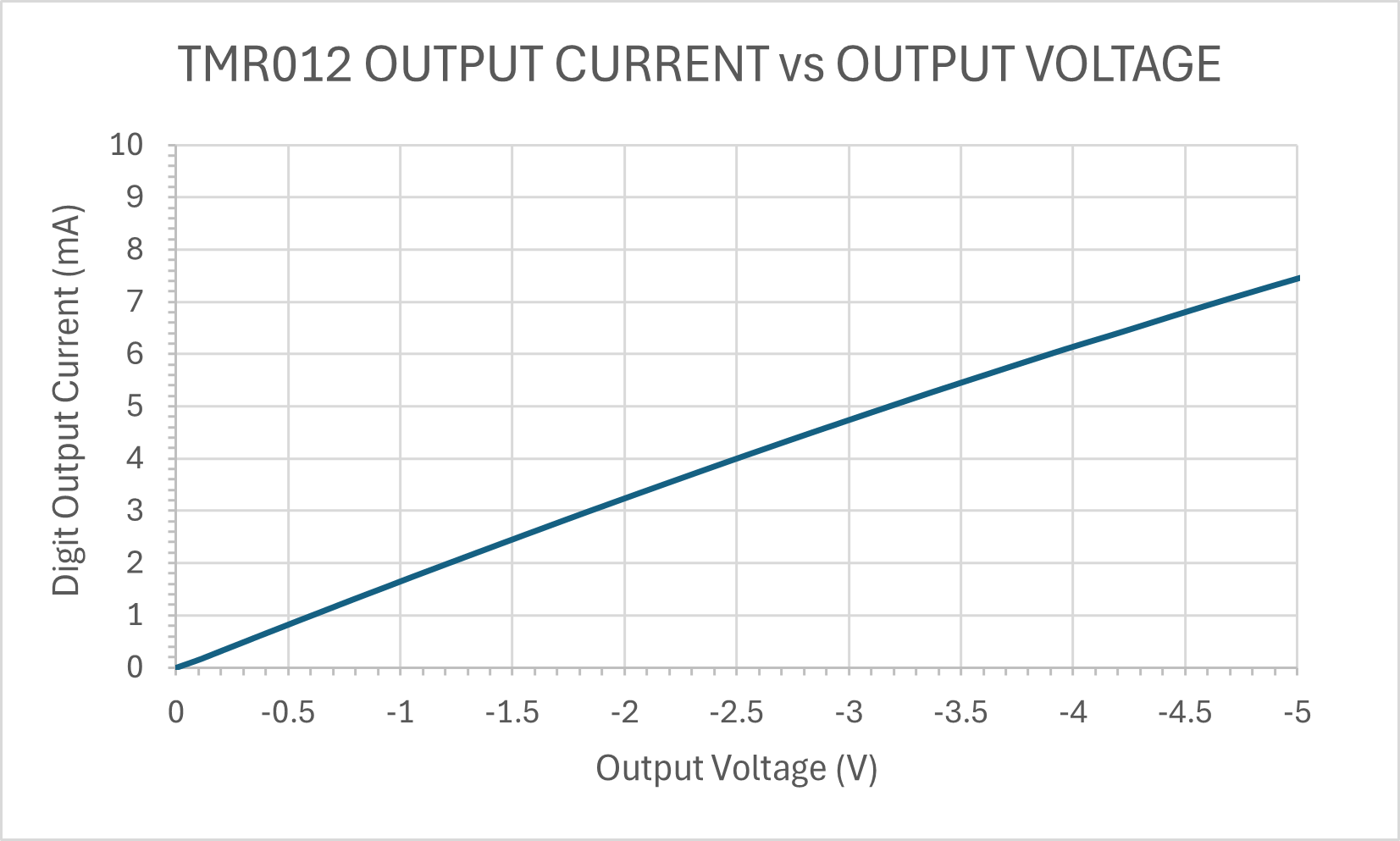

Output Current vs Output Voltage of a TMR 012 Digit Output driver.
DUT: TMR 012 B8472 @ VDD = -15 V.

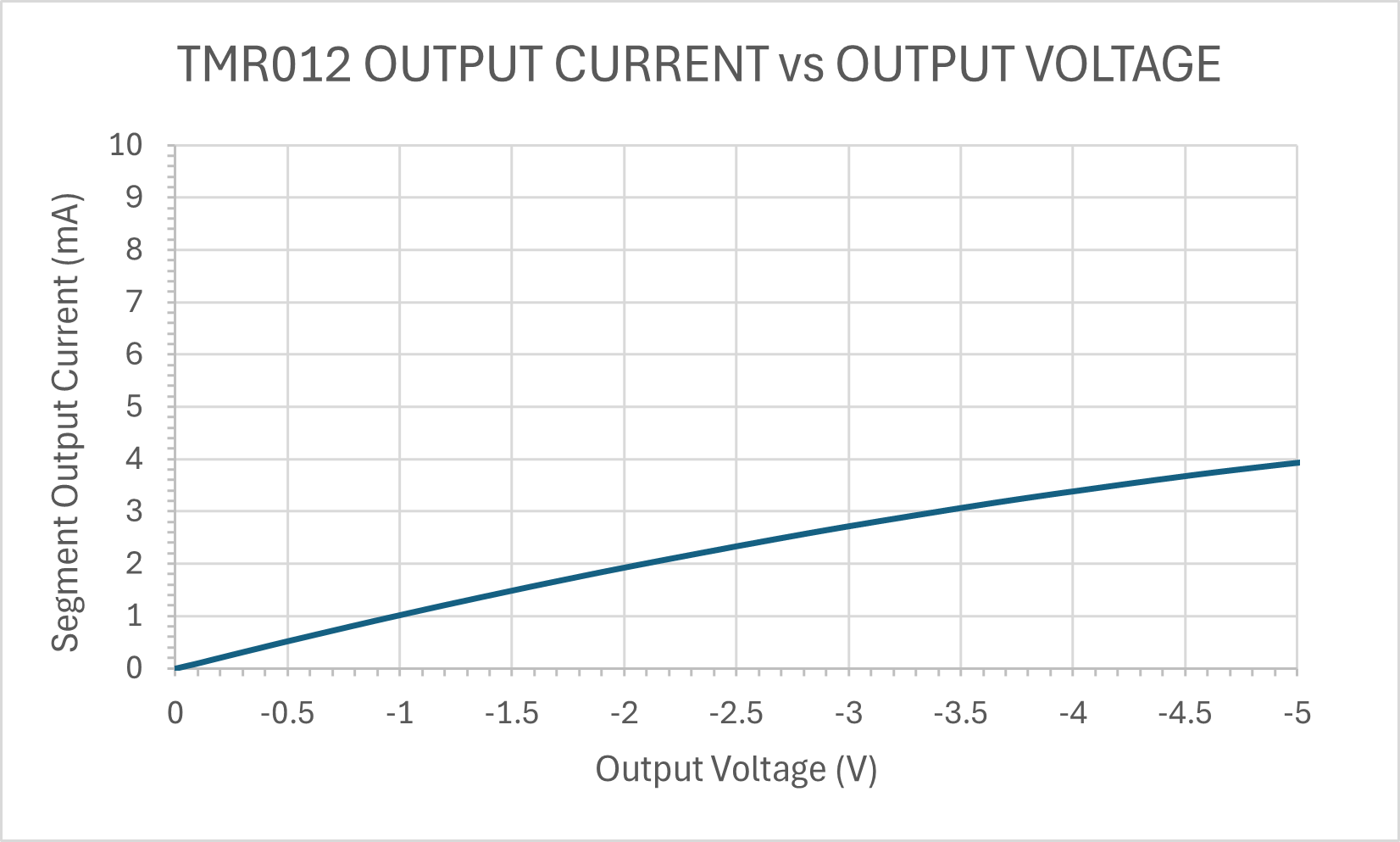

Output Current vs Output Voltage of a TMR 012 Segment Output driver.
DUT: TMR 012 B8472 @ VDD = -15 V.
