Additional Pictures

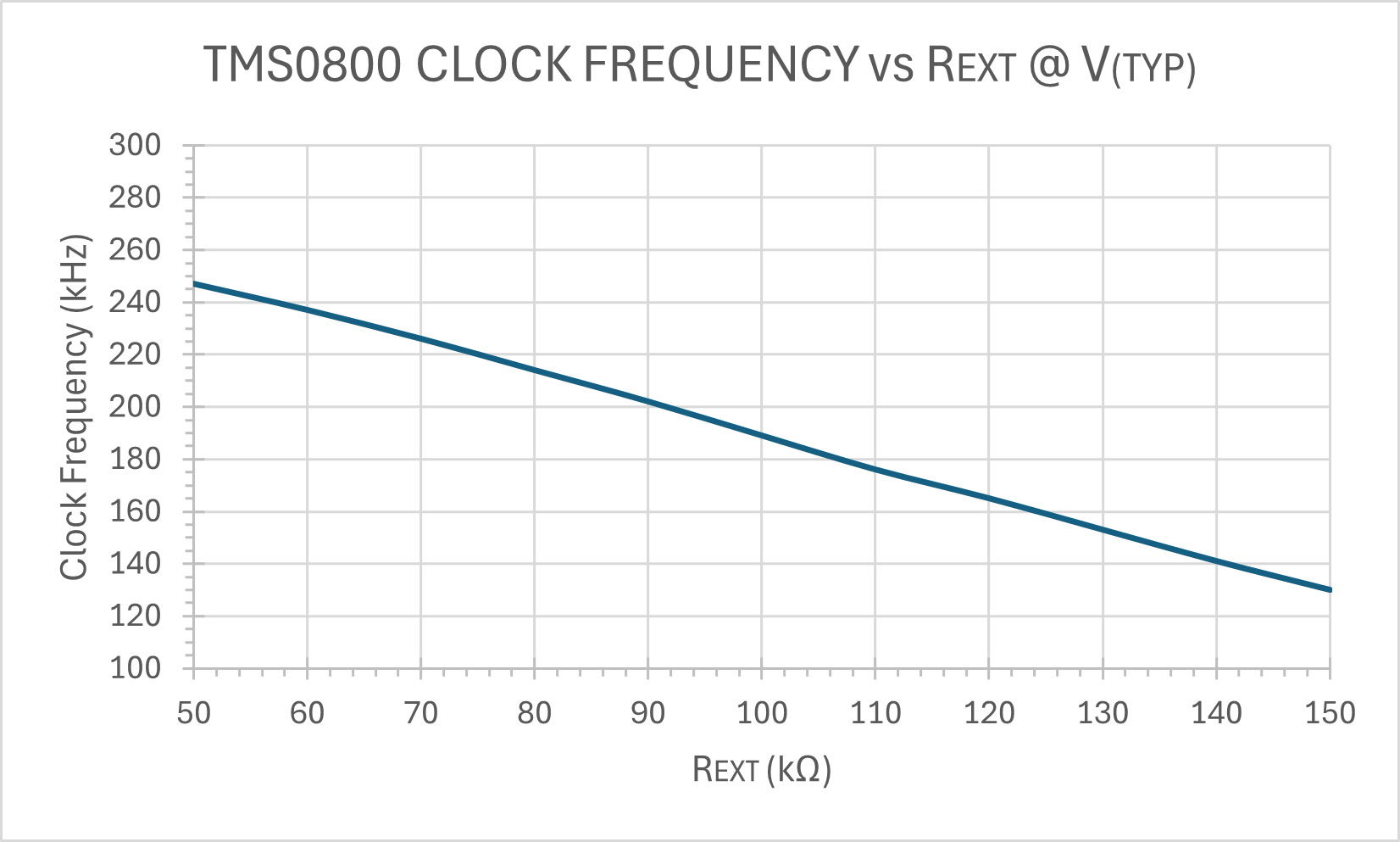

| Clock Frequency vs External Resistor
of a TMS0800 single-chip calculator circuit. DUT: TMS0801NCΔ 7421 - J0801 22 @ VDD = -10.0 V, VGG = -15.8 V.  |

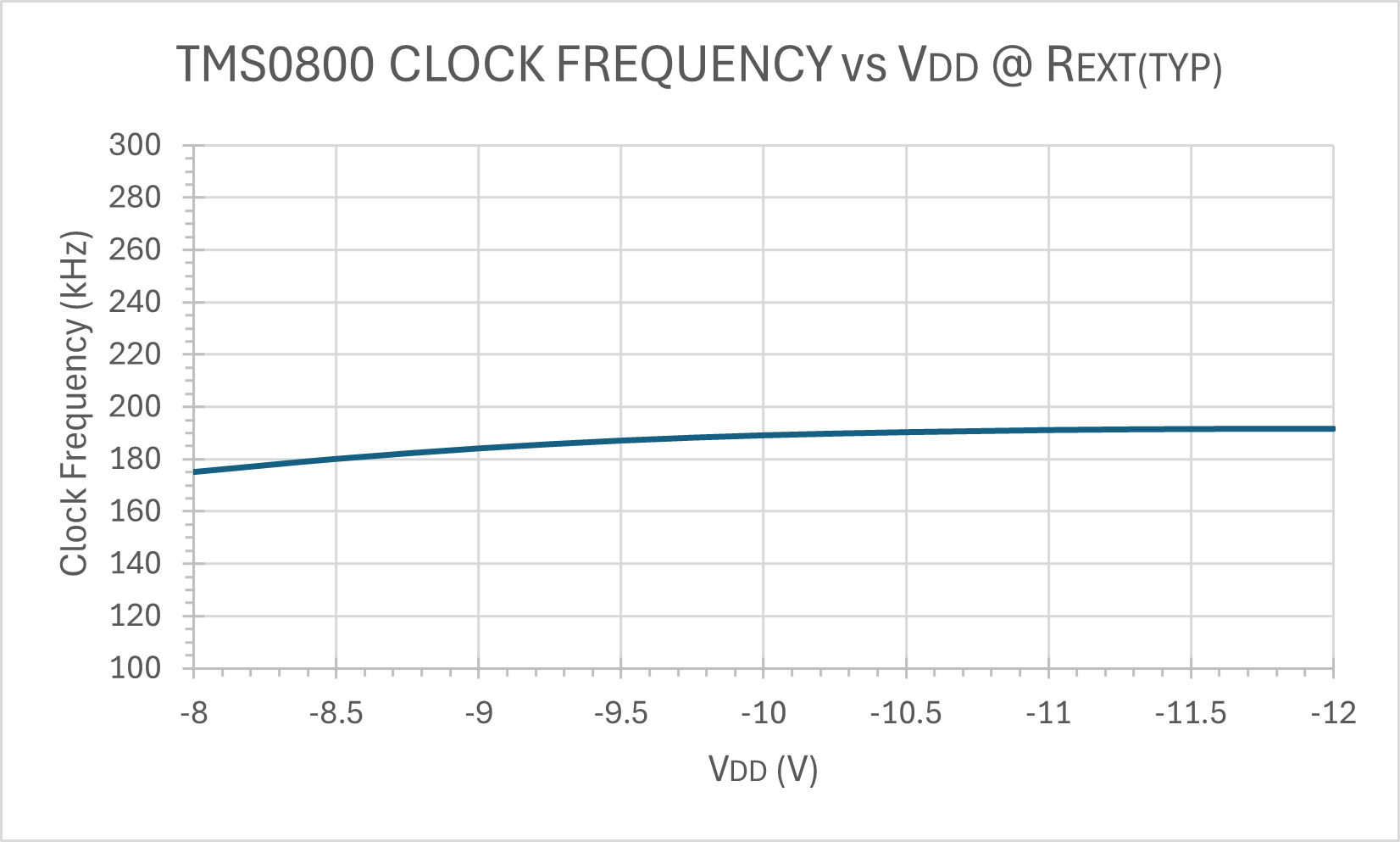

| Clock Frequency vs VDD Supply Voltage
of a TMS0800 single-chip calculator circuit. DUT: TMS0801NCΔ 7421 - J0801 22 @ VGG = -15.8 V, REXT = 100k Ohm.  |

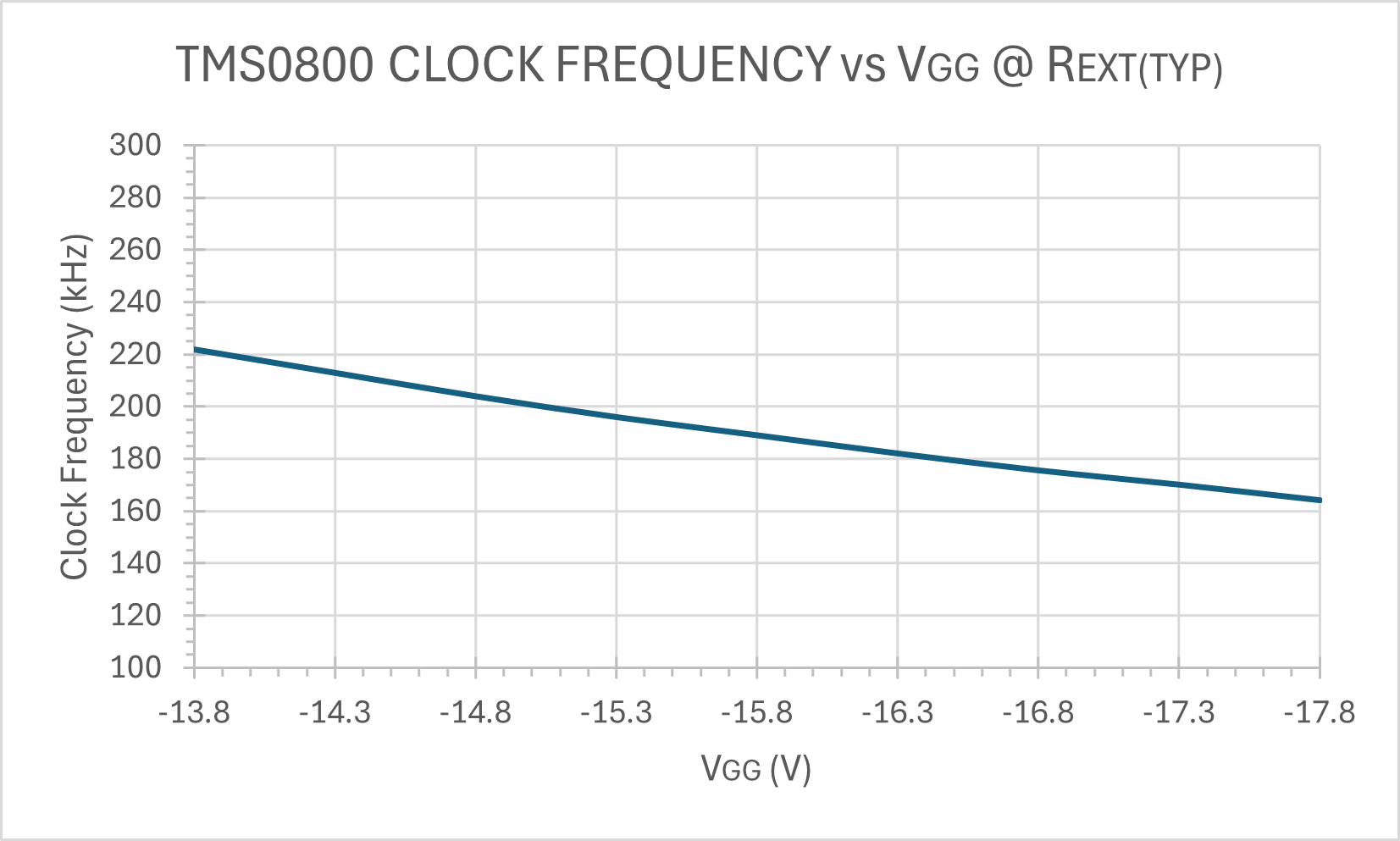

| Clock Frequency vs VGG Supply Voltage
of a TMS0800 single-chip calculator circuit. DUT: TMS0801NCΔ 7421 - J0801 22 @ VDD = -10.0 V, REXT = 100 kOhm.  |

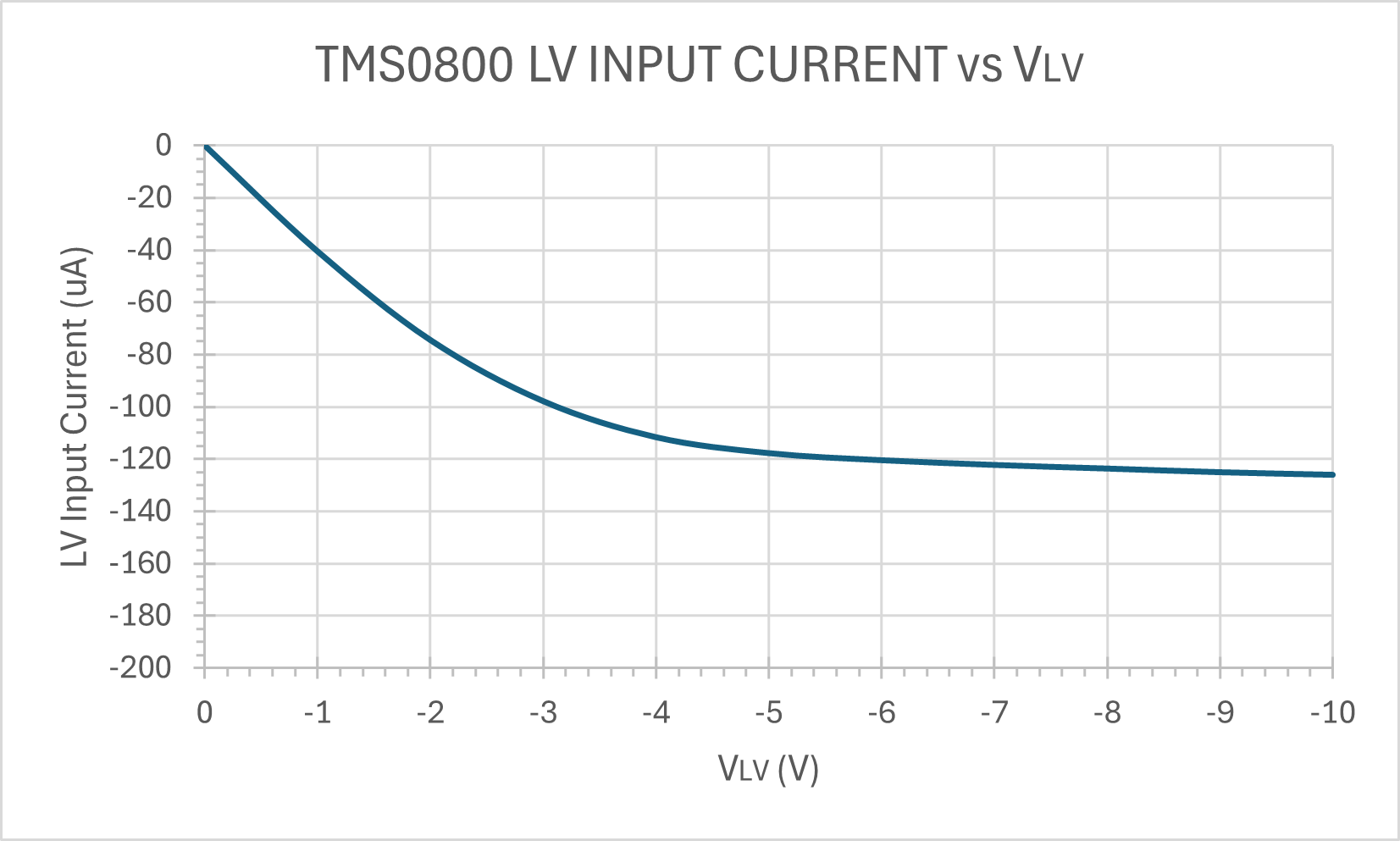

| LV Input Current vs
LV Input Voltage of a TMS0800 single-chip calculator circuit. DUT: TMS0801NCΔ 7421 - J0801 22 @ VDD = -10.0 V, VGG = -15.8 V, REXT = 100 kOhm.  |
