Additional Pictures

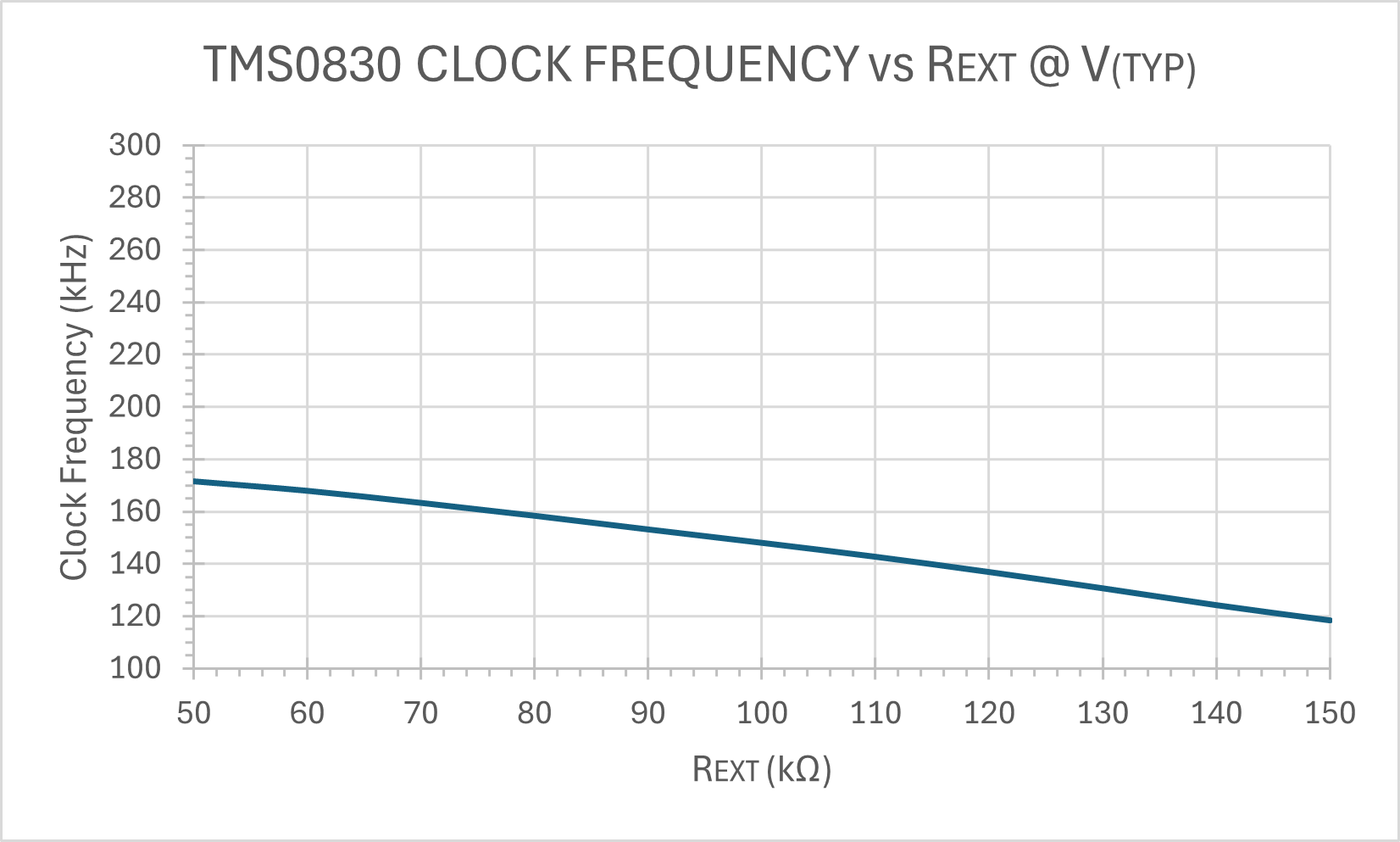

| Clock Frequency vs External Resistor
of a TMS0830 single-chip calculator circuit. DUT: TMS0833NCΔ 7515 - J0833 05 @ VDD = -9.0 V, VGG = -9.0 V.  |

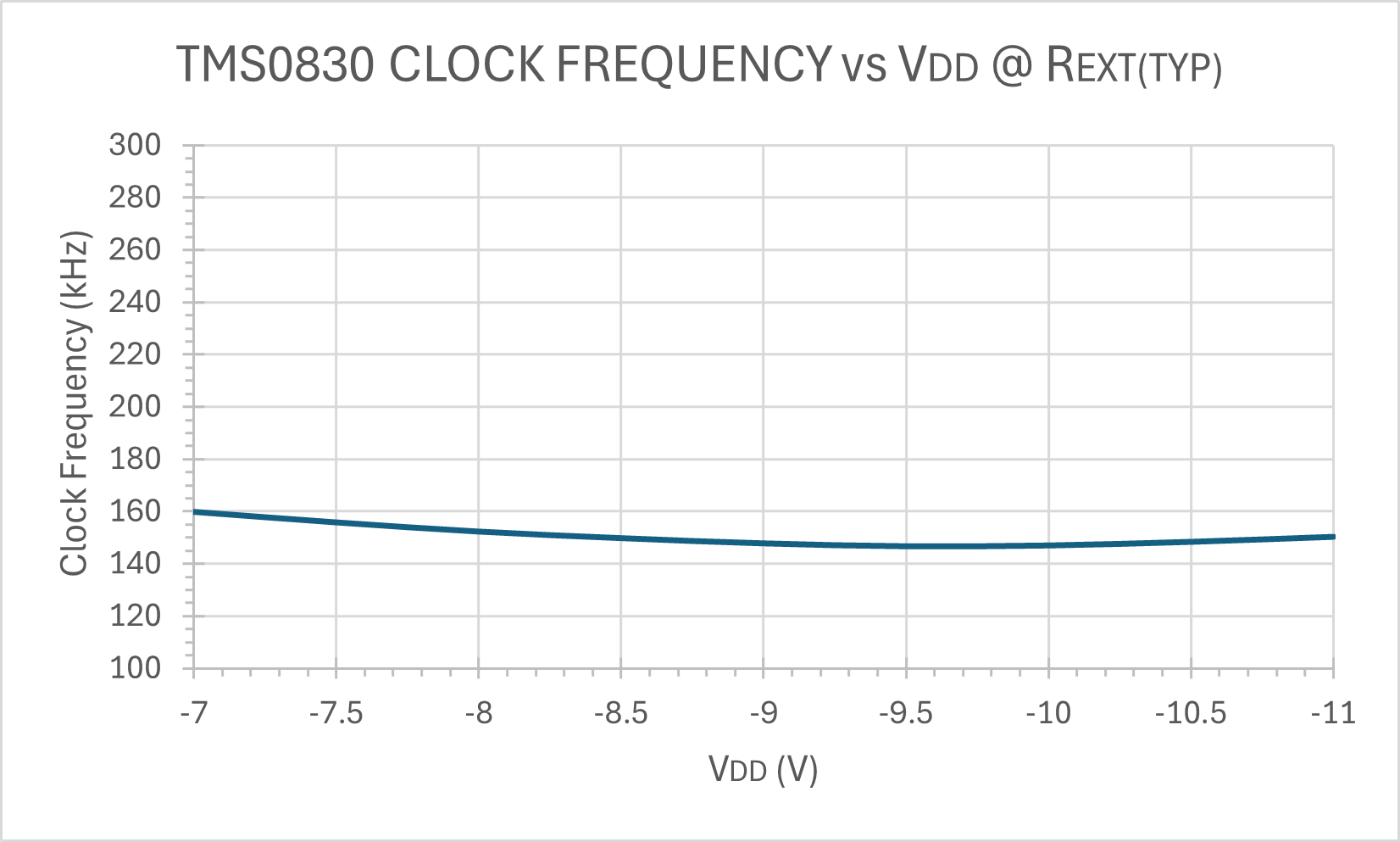

| Clock Frequency vs VDD Supply Voltage
of a TMS0830 single-chip calculator circuit. DUT: TMS0833NCΔ 7515 - J0833 05 @ VGG = VDD, REXT = 100 kOhm.  |

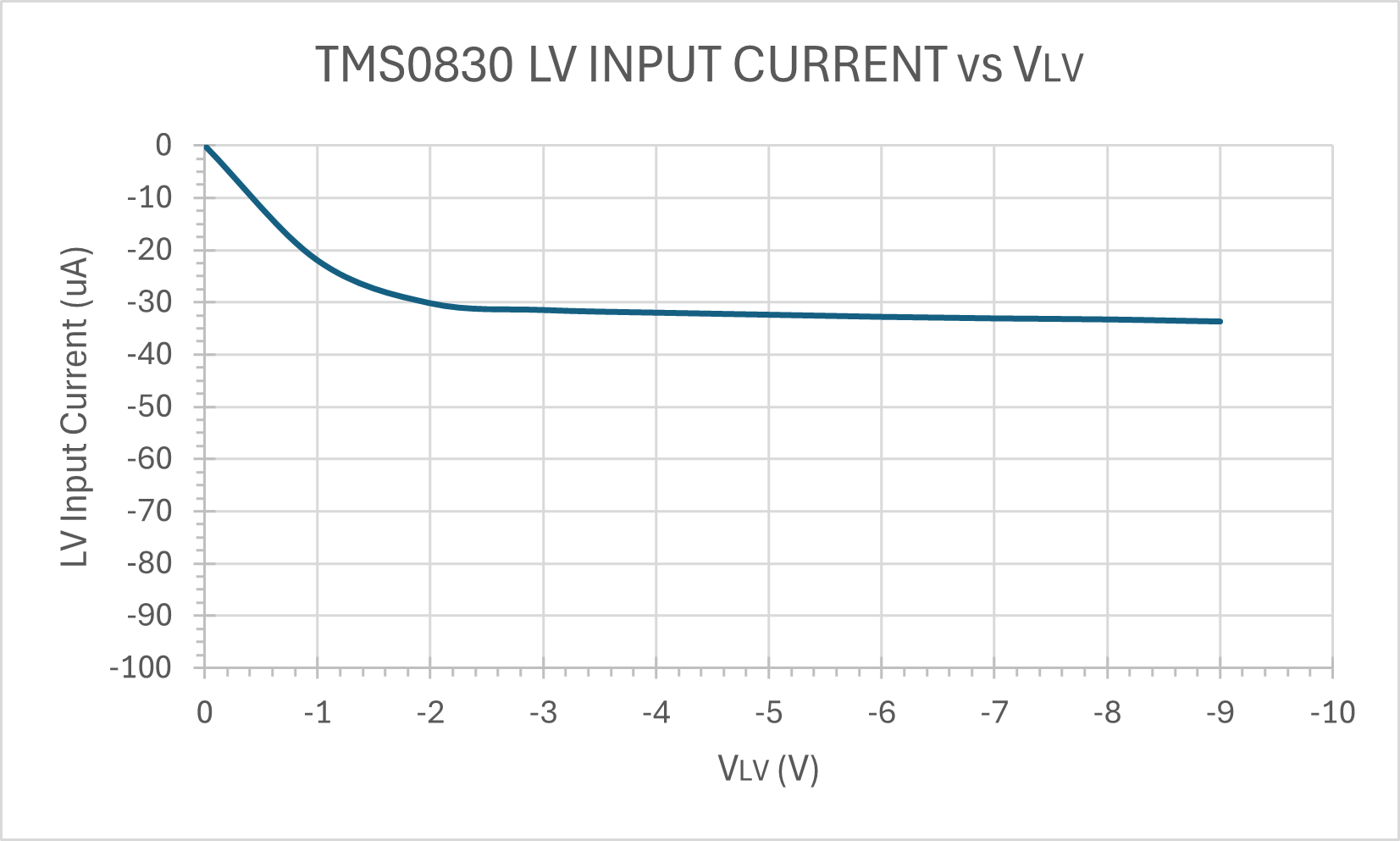

| LV Input Current vs
LV Input Voltage of a TMS0830 single-chip calculator circuit. DUT: TMS0833NCΔ 7515 - J0833 05 @ VDD = -9.0 V, VGG = -9.0 V, REXT = 100 kOhm.  |
