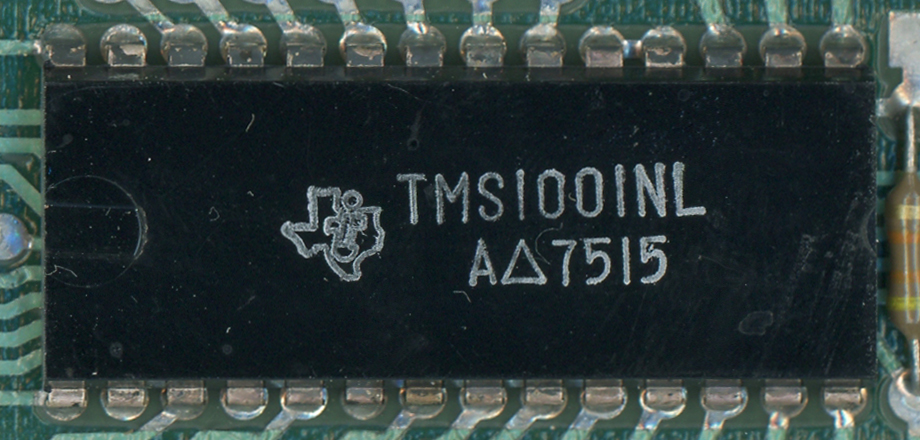

Close-up view of the TMS1001 single-chip calculator circuit used with the SR-16.
PMOS Technology, 28-pin DIP 4-bit Microcontroller, 1,024*8 Bits Instruction ROM, 64*4 Bits Data RAM.

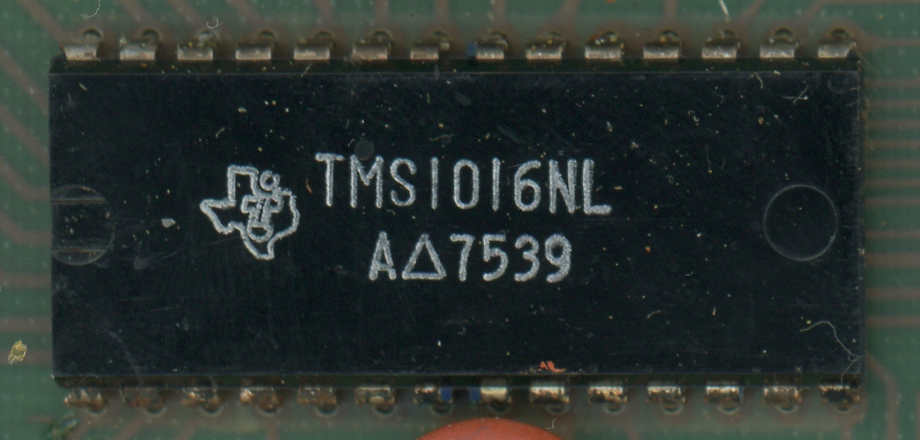

Close-up view of the TMS1016 single-chip calculator circuit used with the SR-16 II.
PMOS Technology, 28-pin DIP 4-bit Microcontroller, 1,024*8 Bits Instruction ROM, 64*4 Bits Data RAM.

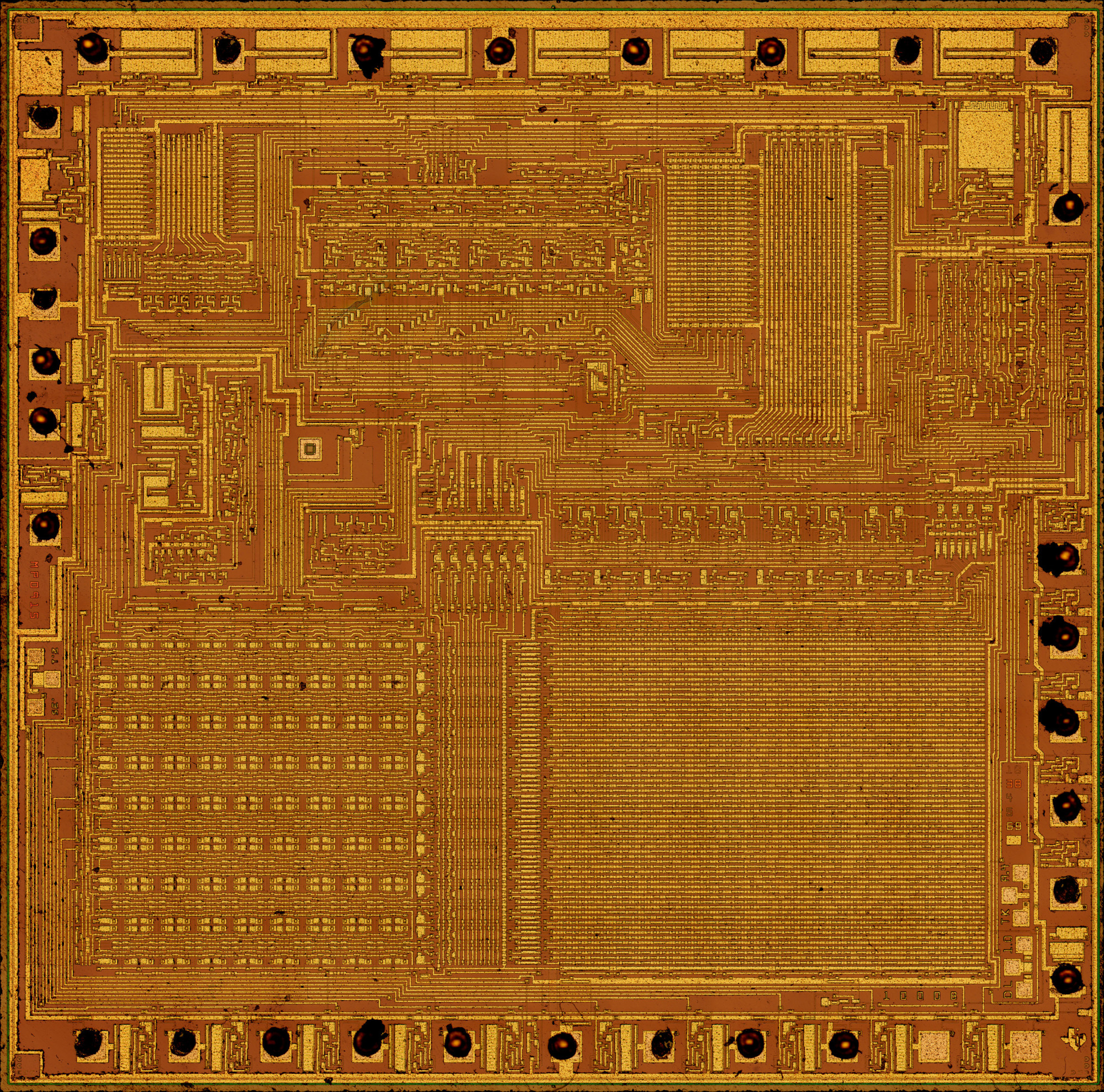

Die Photo of the generic TMS1000 courtesy of Sean Riddle.

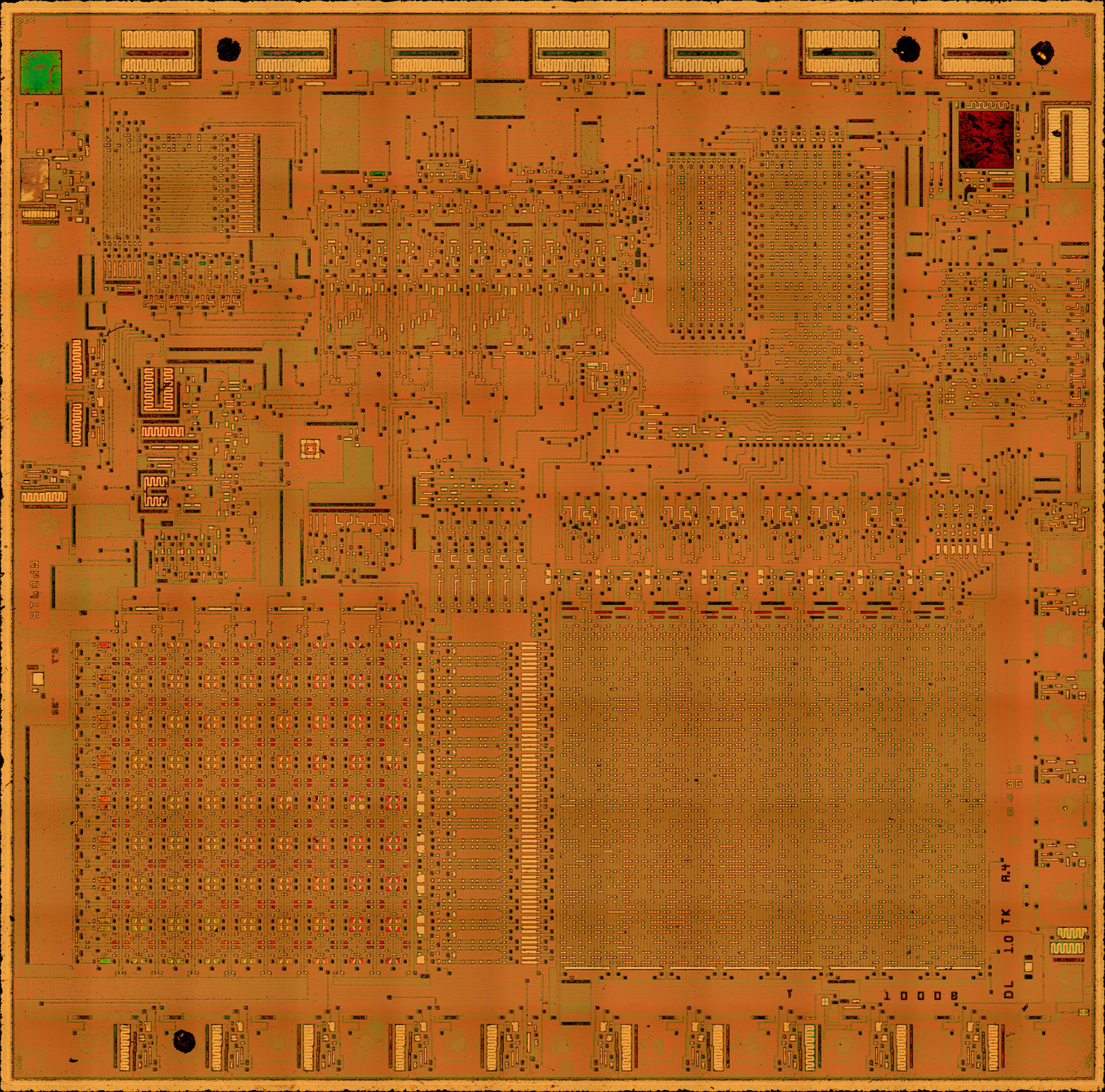

Die Photo (after acid) of the generic TMS1000 courtesy of Sean Riddle.
