Additional Pictures

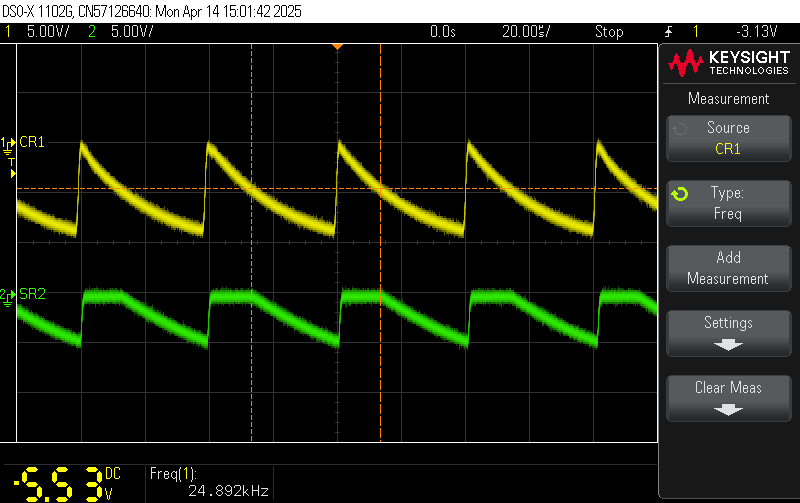

| Observed signals on the
CR1 (top) and SR1 (bottom) pins of the µPD273C
clock oscillator. DUT: µPD273C K3Y106 @ VDD = -6.0 V, VGG = -11.0 V, REXT1 = 150 kOhm, REXT2 = 300 kOhm, CEXT1,2 = 100 pF.  |

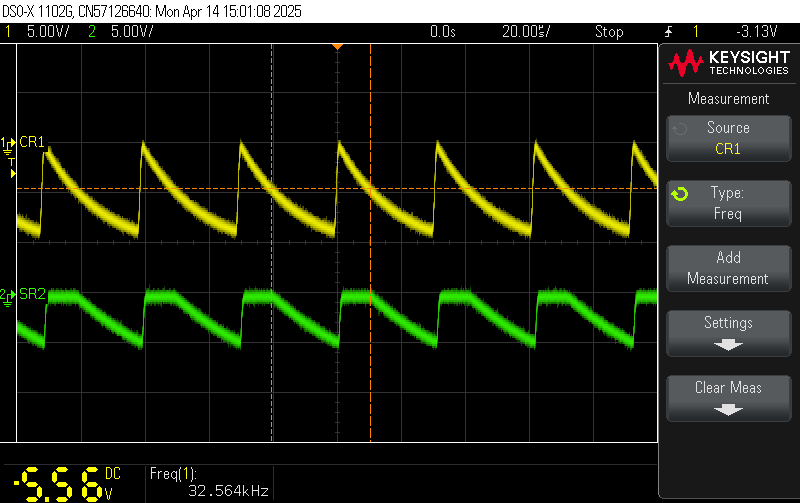

| Observed signals on the
CR1 (top) and
SR1 (bottom) pins of the µPD273C clock oscillator. DUT: µPD273C K3Y106 @ VDD = -6.0 V, VGG = -11.0 V, REXT1 = 200 kOhm, REXT2 = 400 kOhm, CEXT1,2 = 100 pF.  |

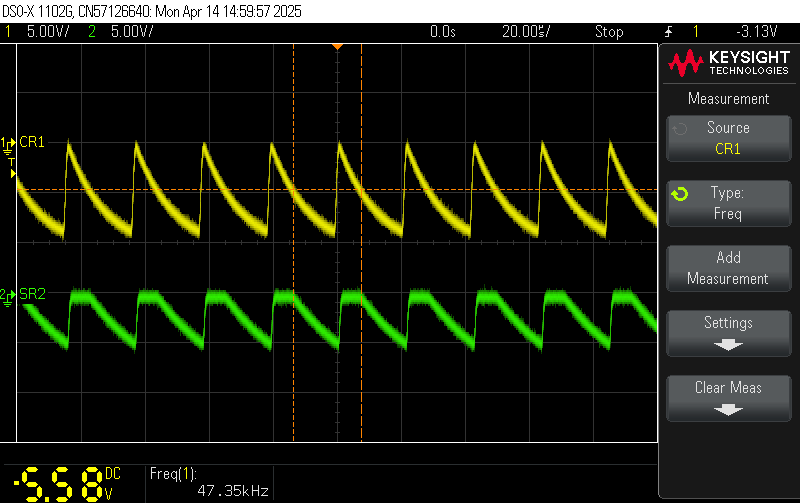

| Observed signals on the
CR1 (top) and
SR1 (bottom) pins of the µPD273C clock oscillator. DUT: µPD273C K3Y106 @ VDD = -6.0 V, VGG = -11.0 V, REXT1 = 100 kOhm, REXT2 = 200 kOhm, CEXT1,2 = 100 pF.  |

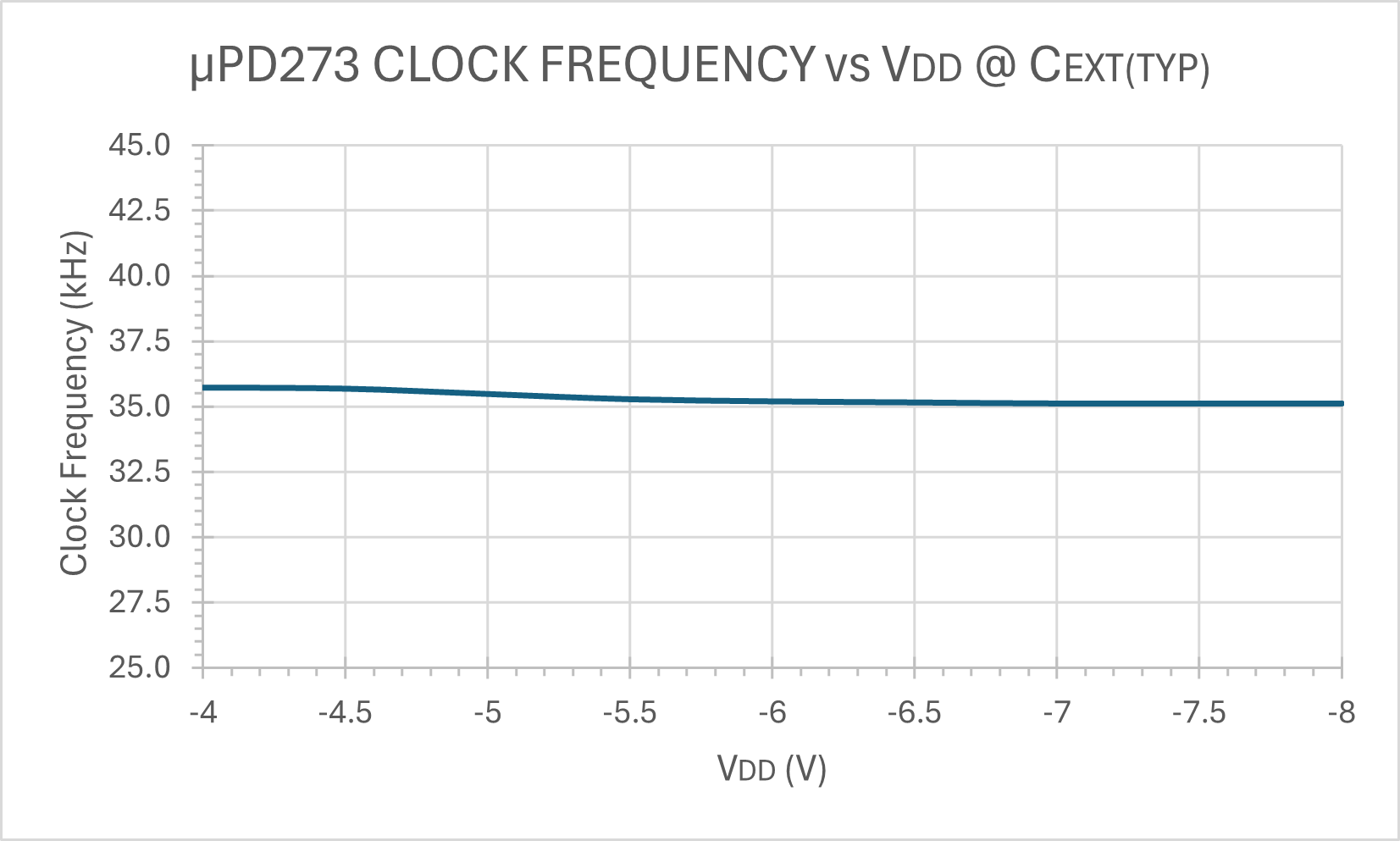

| Clock Frequency vs VDD Supply Voltage
of a µPD273 Series single-chip calculator circuit. DUT: µPD273C K3X336 @ VGG = -11.0 V, REXT1 = 150 kOhm, REXT2 = 300 kOhm, CEXT1,2 = 100 pF.  |

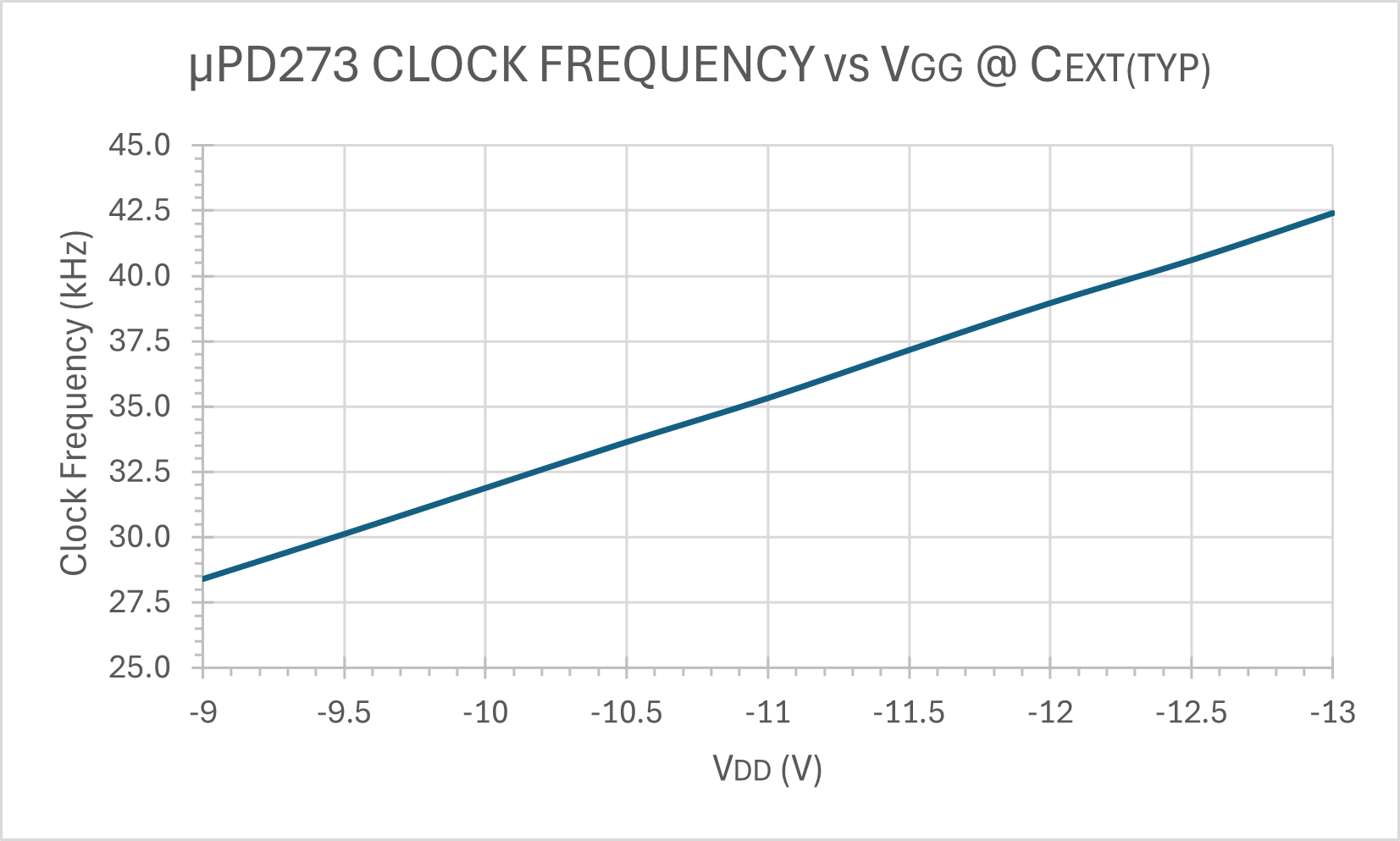

| Clock Frequency vs VGG Supply Voltage
of a µPD273 single-chip calculator circuit. DUT: µPD9273C K3X336 @ VDD = -6.0 V, REXT1 = 150 kOhm, REXT2 = 300 kOhm, CEXT1,2 = 100 pF.  |
