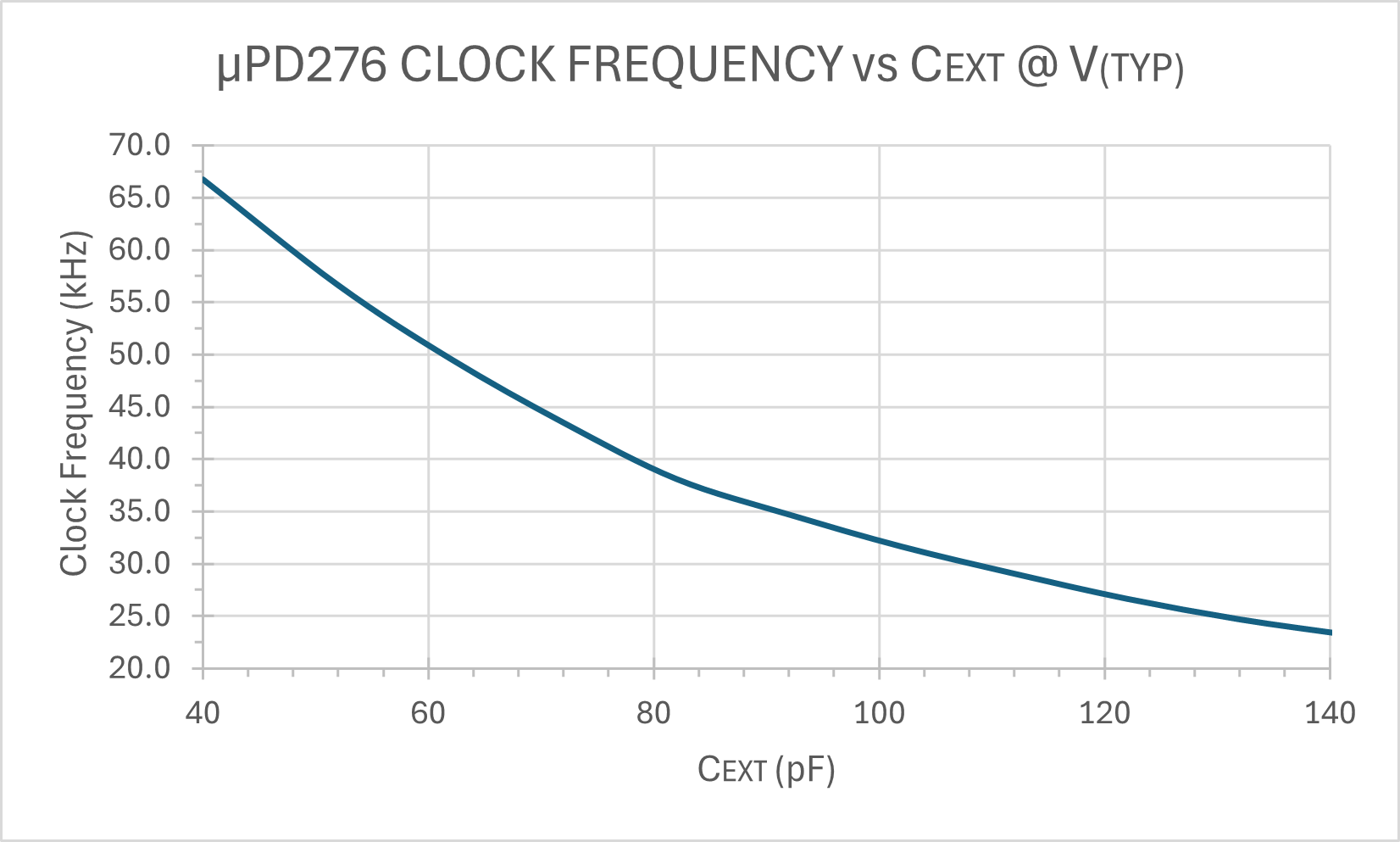

| Clock Frequency vs
External Capacitor of a µPD276 single-chip calculator circuit. DUT: µPD276C H55049 @ VDD = -6.0 V, VGG = -12.0 V.  |

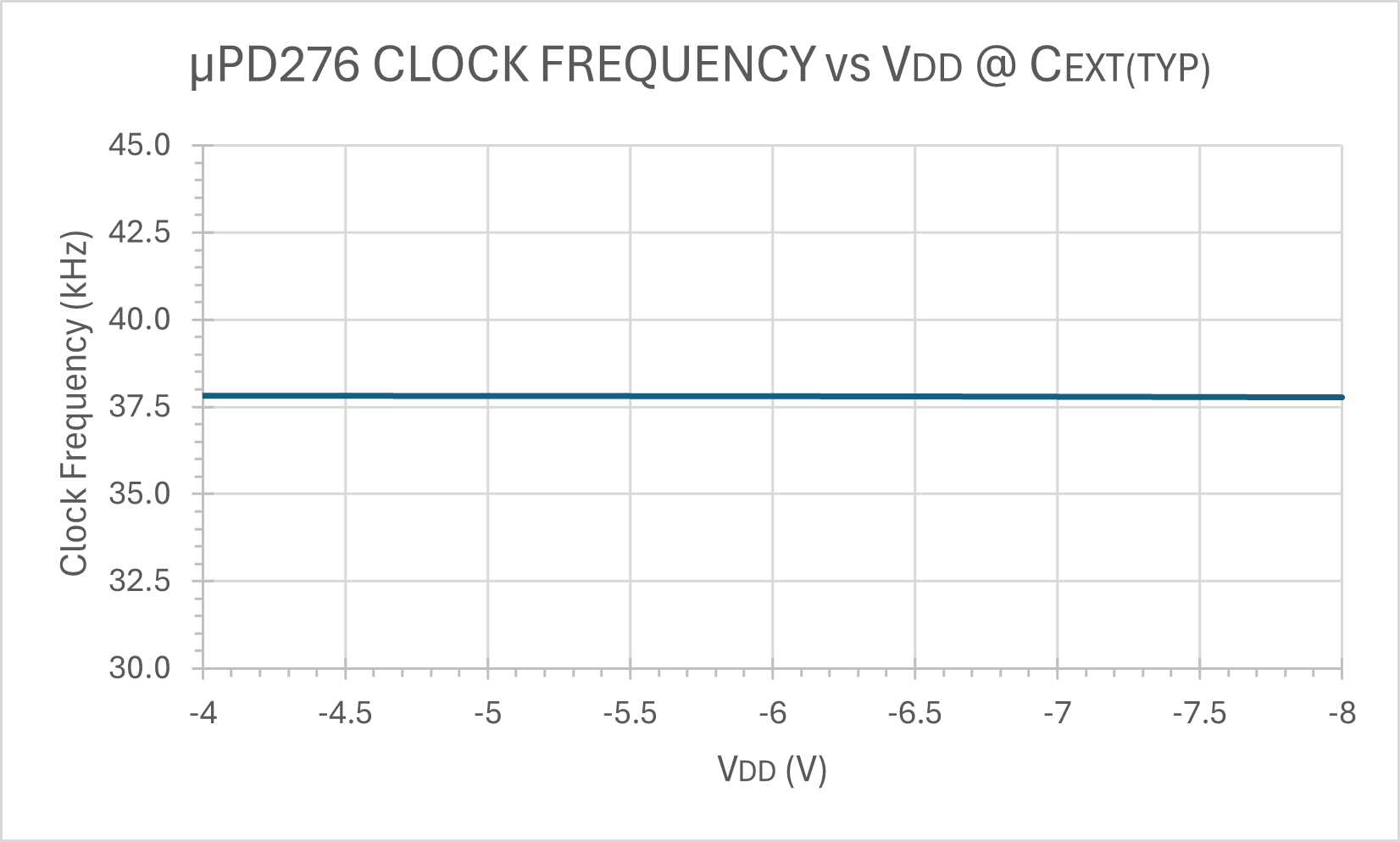

| Clock Frequency vs VDD Supply Voltage
of a µPD276 single-chip calculator circuit. DUT: µPD276C H55049 @ VGG = -12.0 V, CEXT = 82 pF.  |

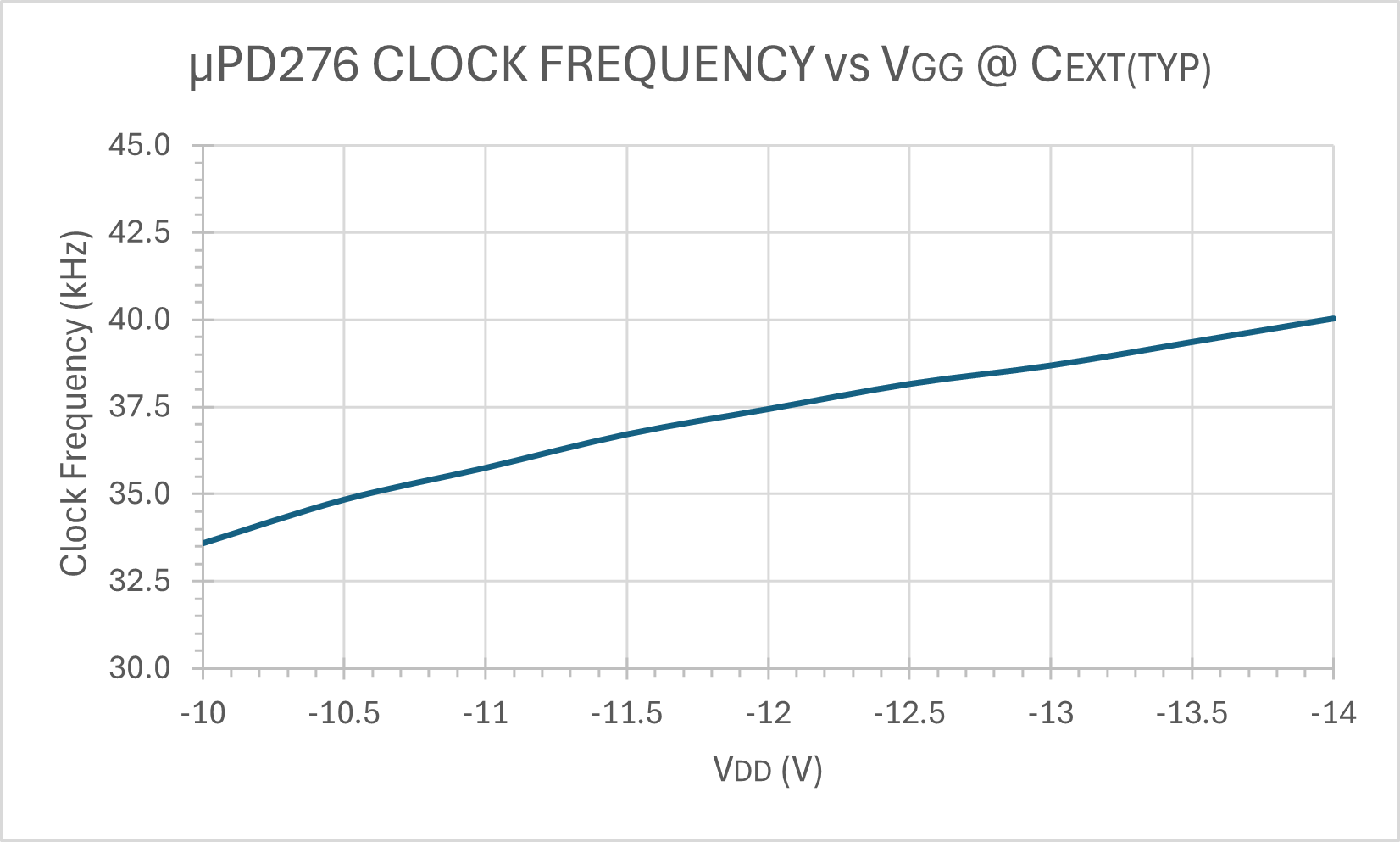

| Clock Frequency vs VGG Supply Voltage
of a µPD276 single-chip calculator circuit. DUT: µPD276C H55049 @ VDD = -6.0 V, CEXT = 82 pF.  |
