Additional Pictures

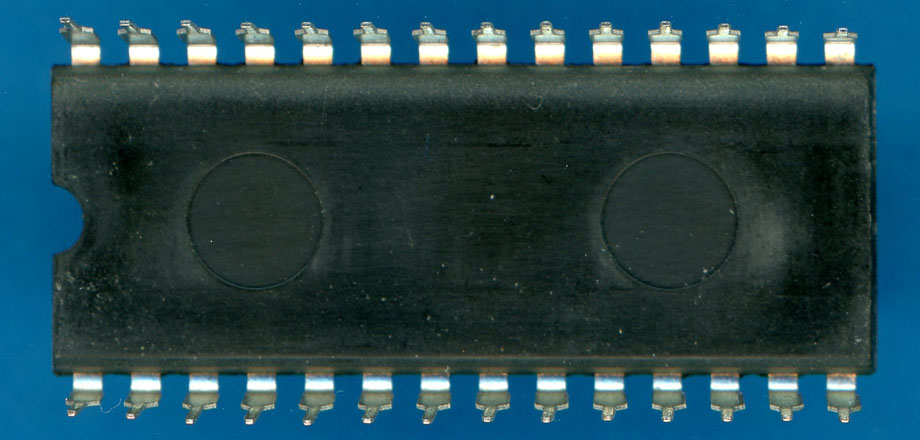

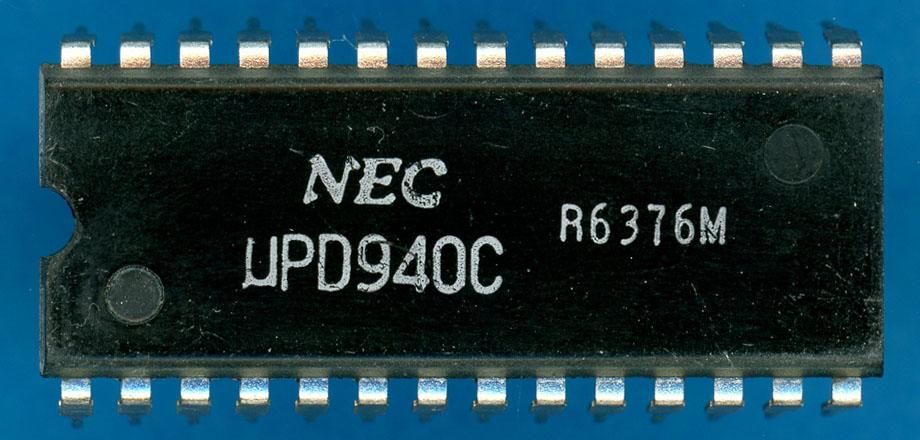

| Close-up view
of the µPD940 single-chip calculator circuit used with the Lloyd's Accumatic 30. PMOS Technology, 28-pin DIP 4-bit serial Register Processor, 256*19 Bits Instruction ROM, 3*48 Bits Data SAM. Manufactured March 1976.   |

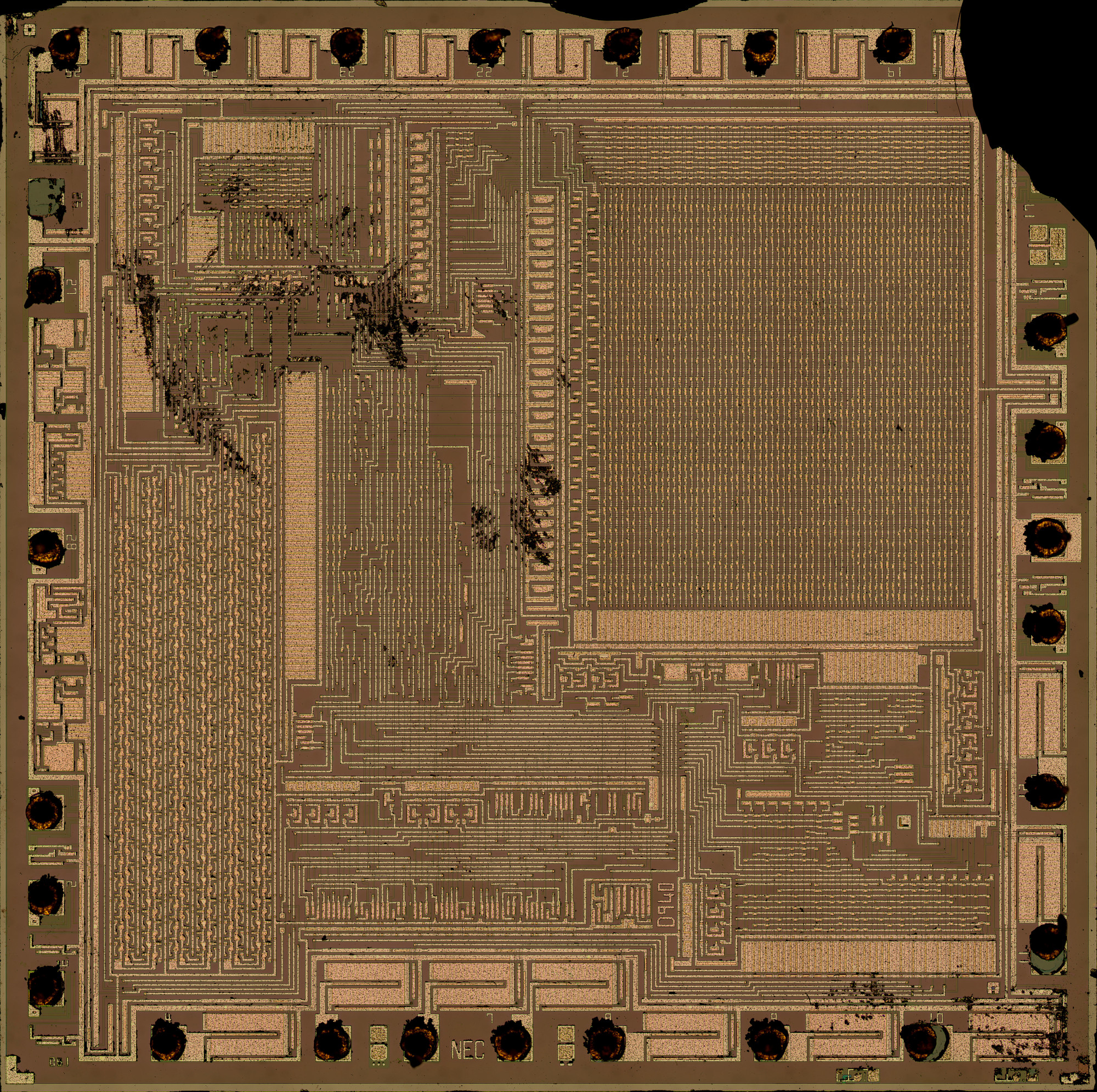

Die Photo of the
µPD940
courtesy of Sean Riddle. |

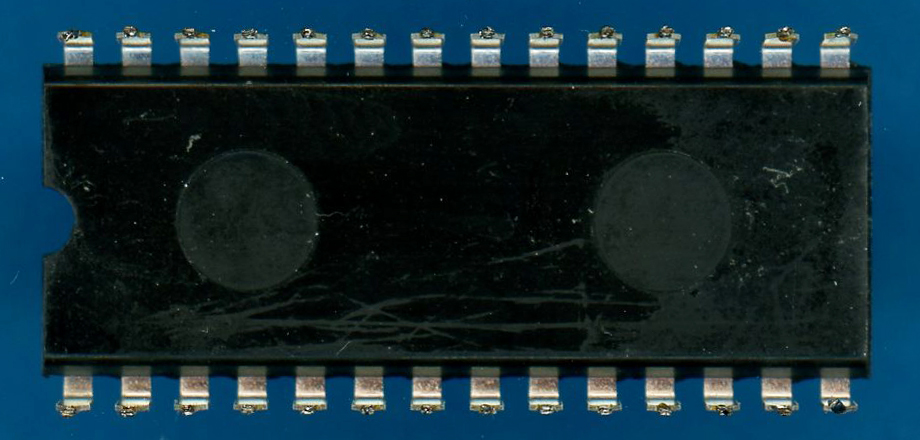

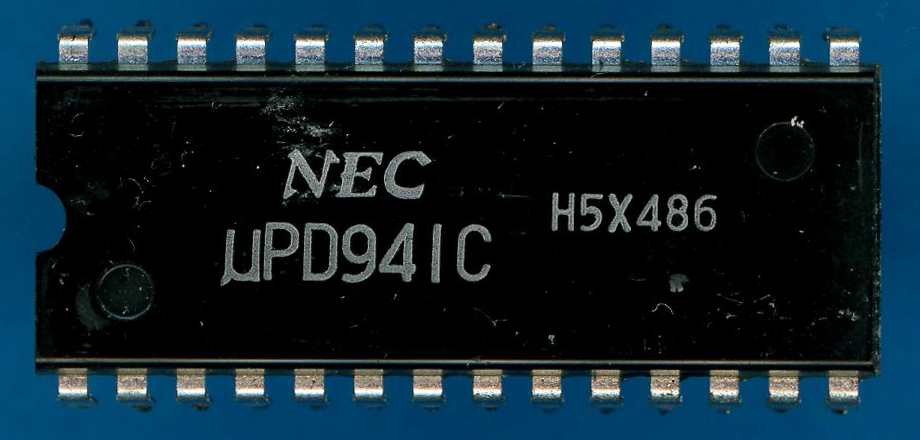

| Close-up view
of the µPD941 single-chip calculator circuit used with the MBO de Luxe I. PMOS Technology, 28-pin DIP 4-bit serial Register Processor, 256*19 Bits Instruction ROM, 3*48 Bits Data SAM. Manufactured March 1976.   |

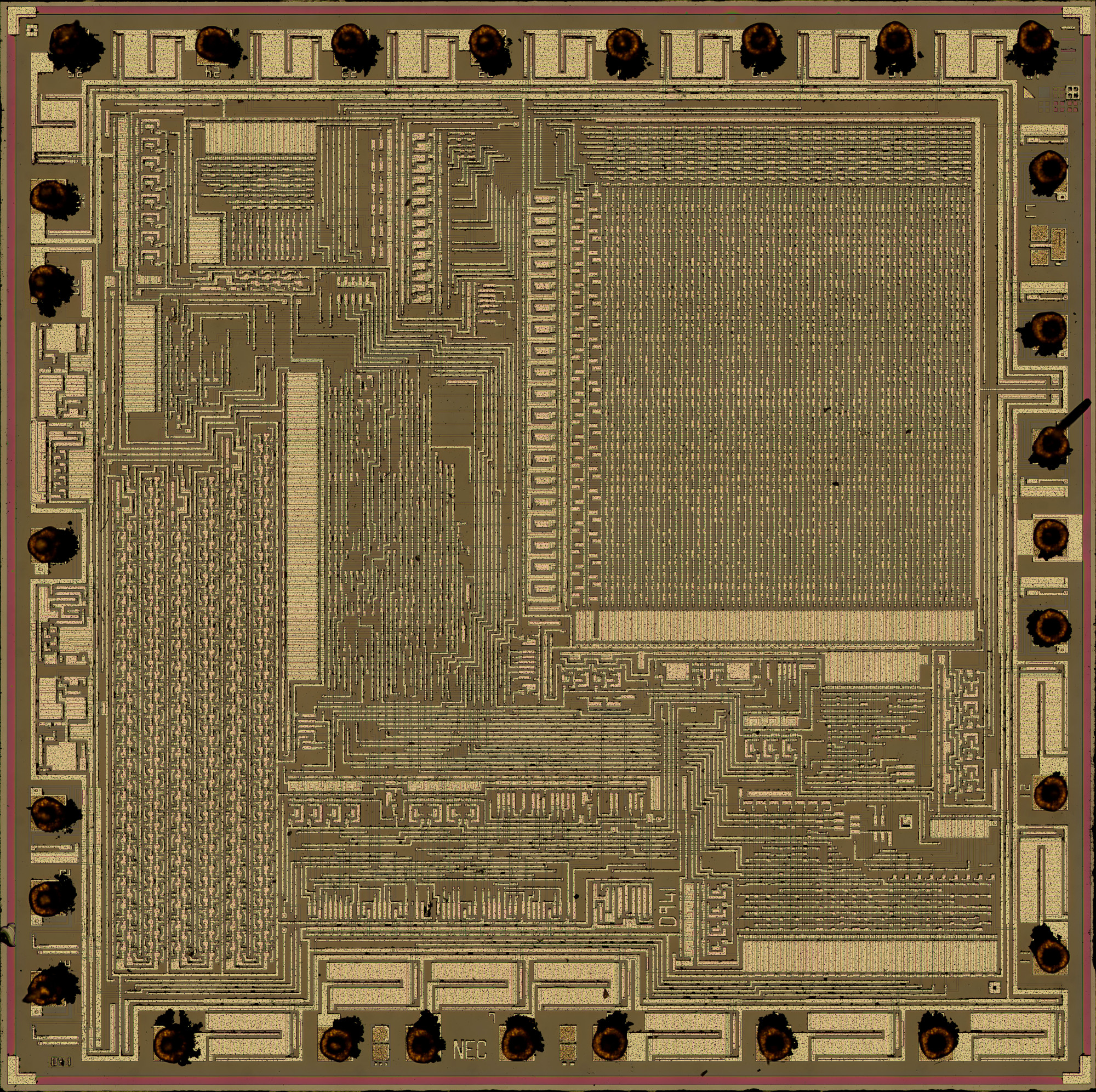

Die Photo of the
µPD940
courtesy of Sean Riddle. |
