Additional Pictures

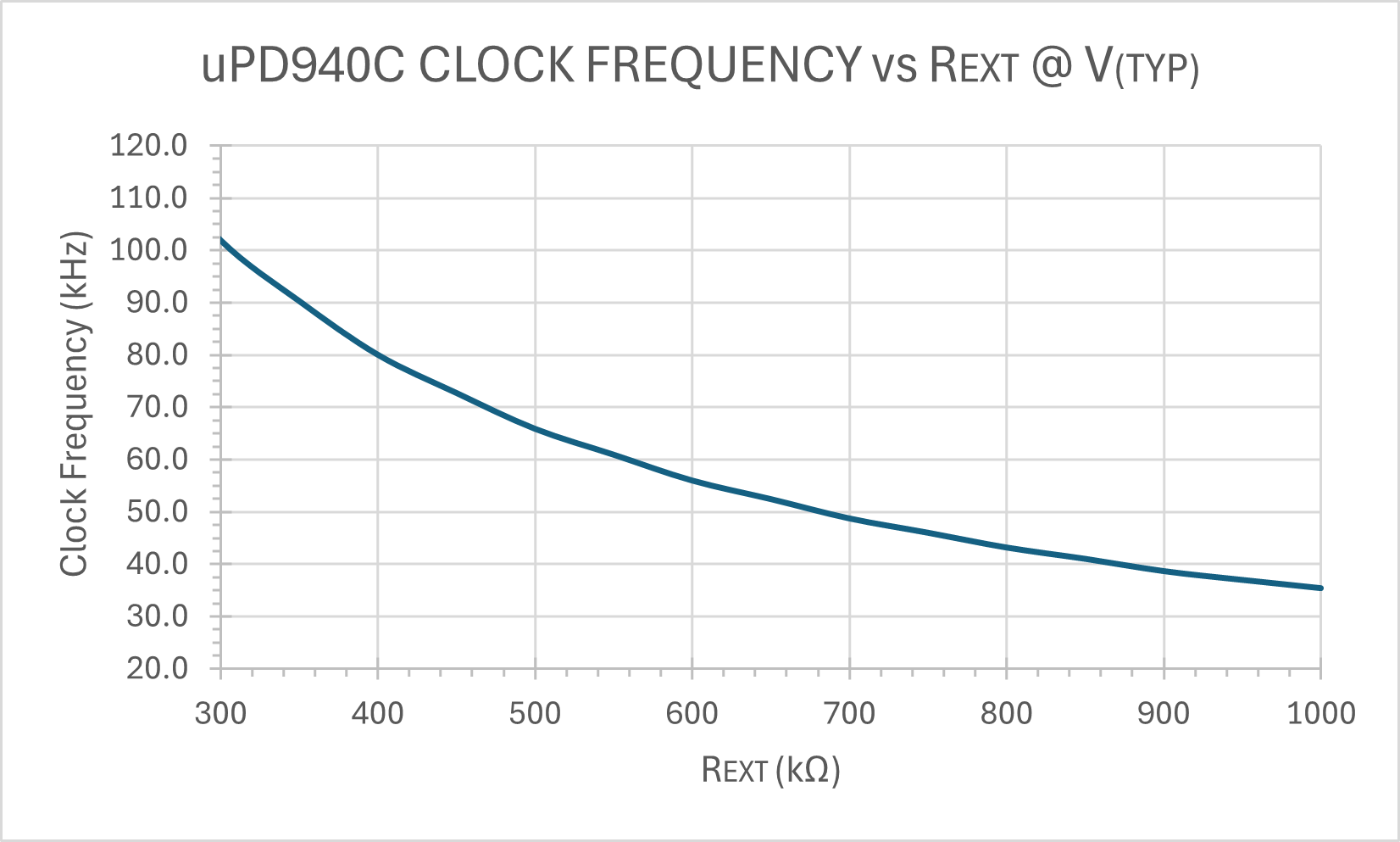

| Clock Frequency vs External Resistor
of a µPD940 Series single-chip calculator circuit. DUT: µPD940C R6376M @ VDD = -6.0 V, VGG = -12.0 V, CEXT = 56 pF.  |

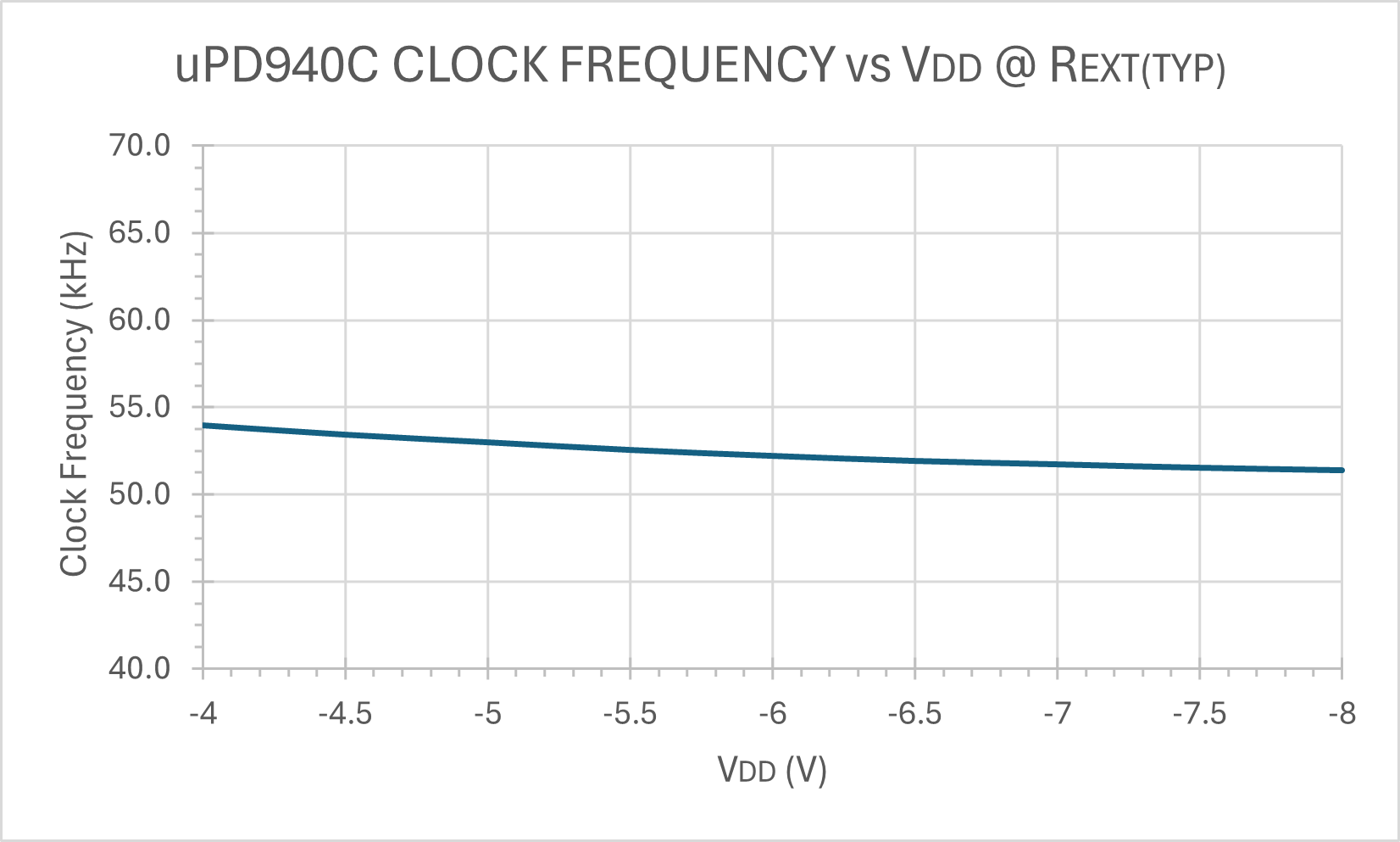

| Clock Frequency vs VDD Supply Voltage
of a µPD940 Series single-chip calculator circuit. DUT: µPD940C R6376M @ VGG = -12.0 V, REXT = 680 kOhm, CEXT = 56 pF.  |

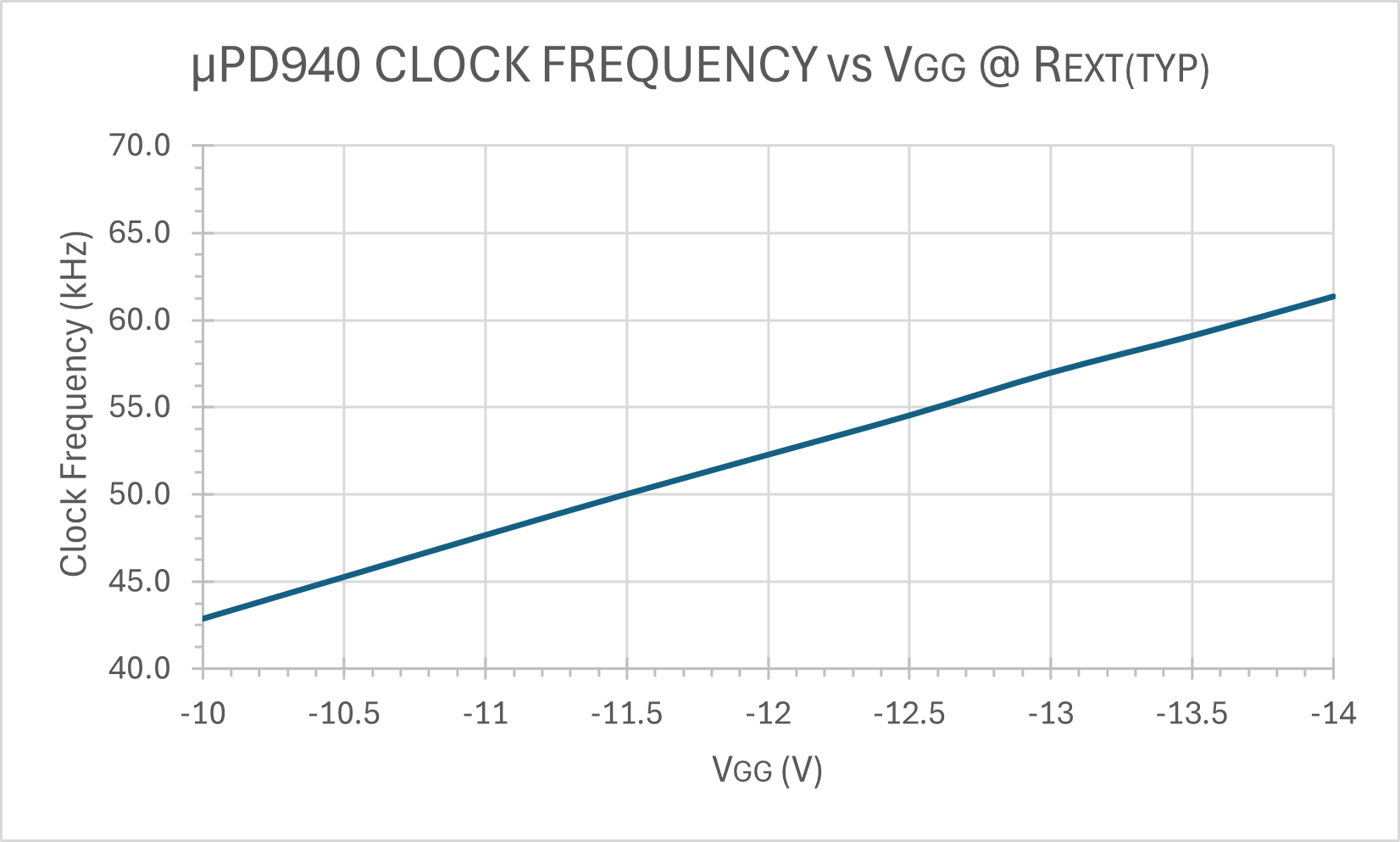

| Clock Frequency vs VGG Supply Voltage
of a µPD940 Series single-chip calculator circuit. DUT: µPD940C R6376M @ VDD = -6.0 V, REXT = 680 kOhm, CEXT = 56 pF.  |
