Additional Pictures

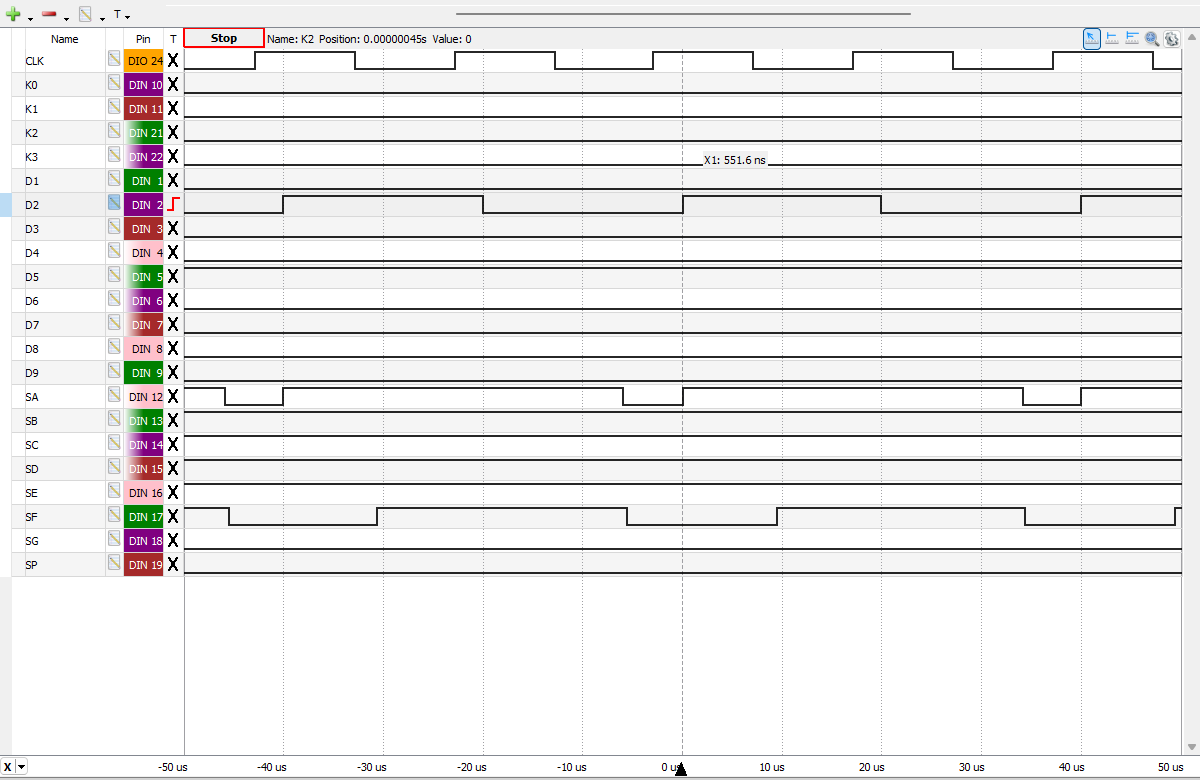

| Clock Input, Keyboard Input,
Digit Output and Segment Output Pins of the µPD941 in Test Mode
1 captured with the Digilent Digital Discovery connected to the DCM-50A Platform. µPD941 Clock Frequency at 50 kHz.  |

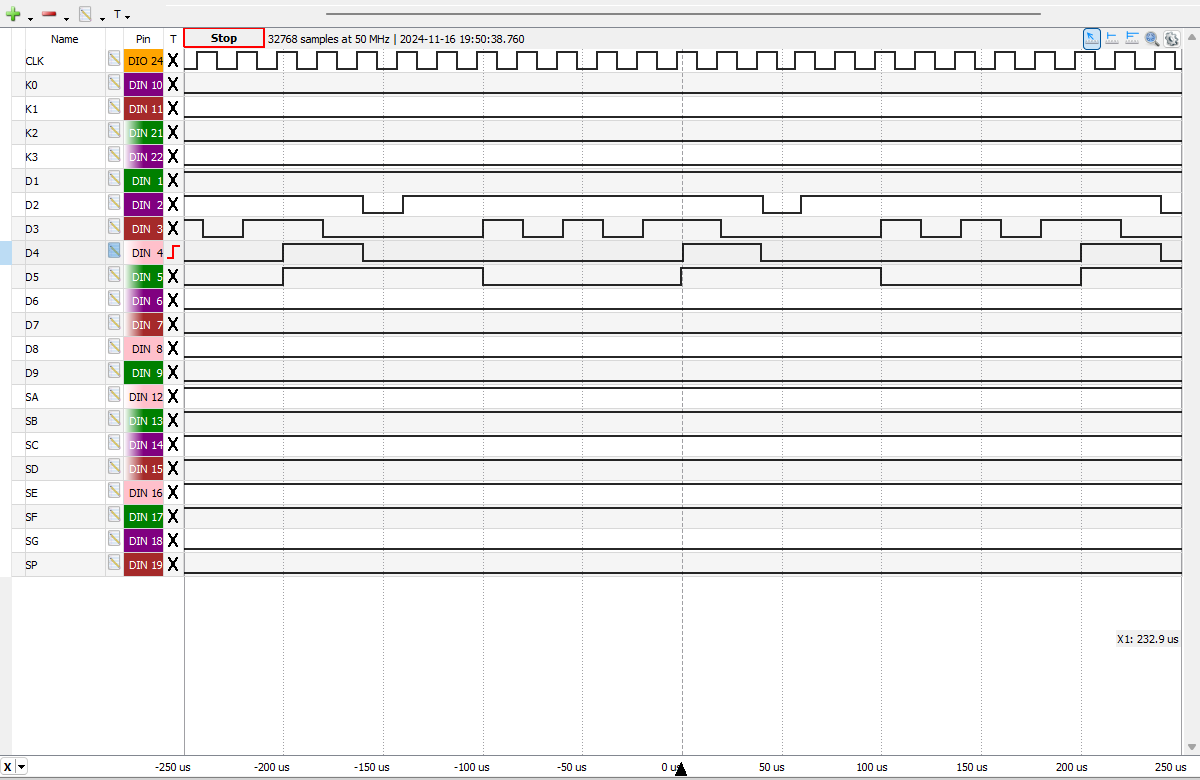

| Clock Input, Keyboard Input,
Digit Output and Segment Output Pins of the µPD941 in Test Mode
2 captured with the Digilent Digital Discovery connected to the DCM-50A Platform. µPD941 Clock Frequency at 50 kHz.  |

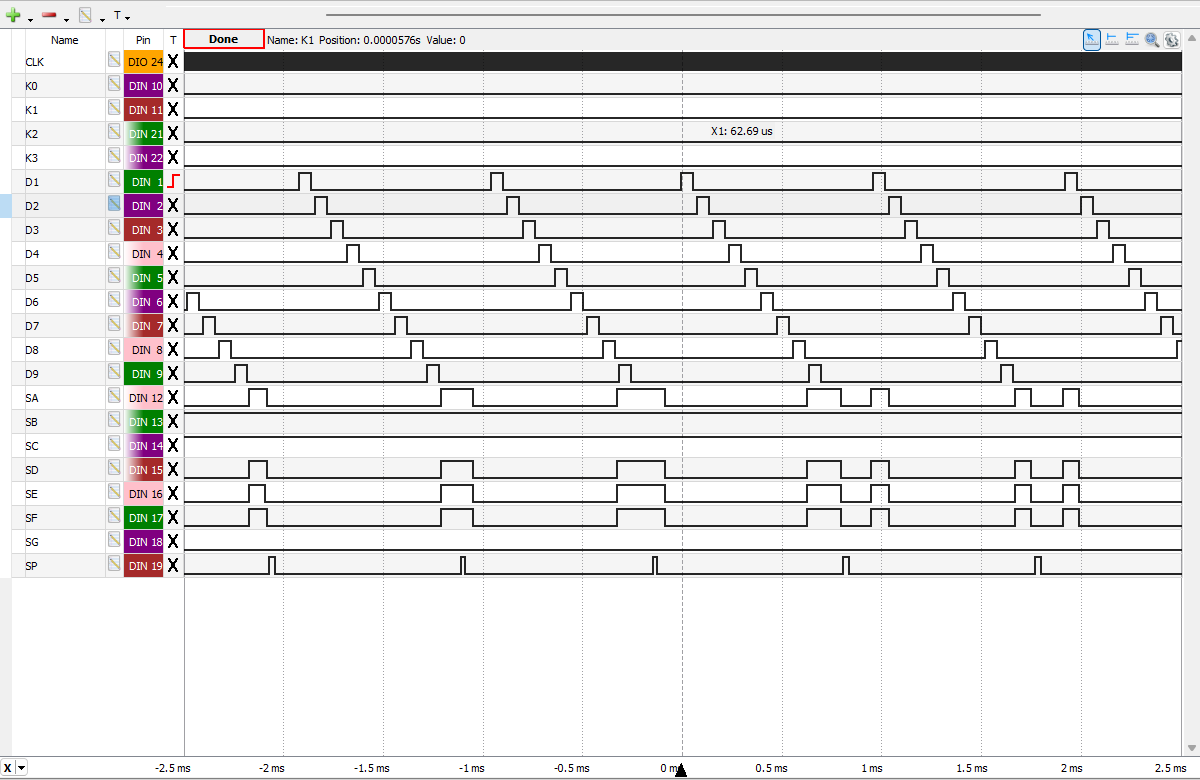

| Clock Input, Keyboard Input,
Digit Output and Segment Output Pins of the µPD941 in Test Mode
3 captured with the Digilent Digital Discovery connected to the DCM-50A Platform. µPD941 Clock Frequency at 50 kHz.  |
