Additional Pictures
| Clock Input, Keyboard Input,
Digit Output and Segment Output Pins of the µPD943 in Test Mode
1 captured with the Digilent Digital Discovery connected to the DCM-50A Platform. µPD943 Clock Frequency at 50 kHz.  |

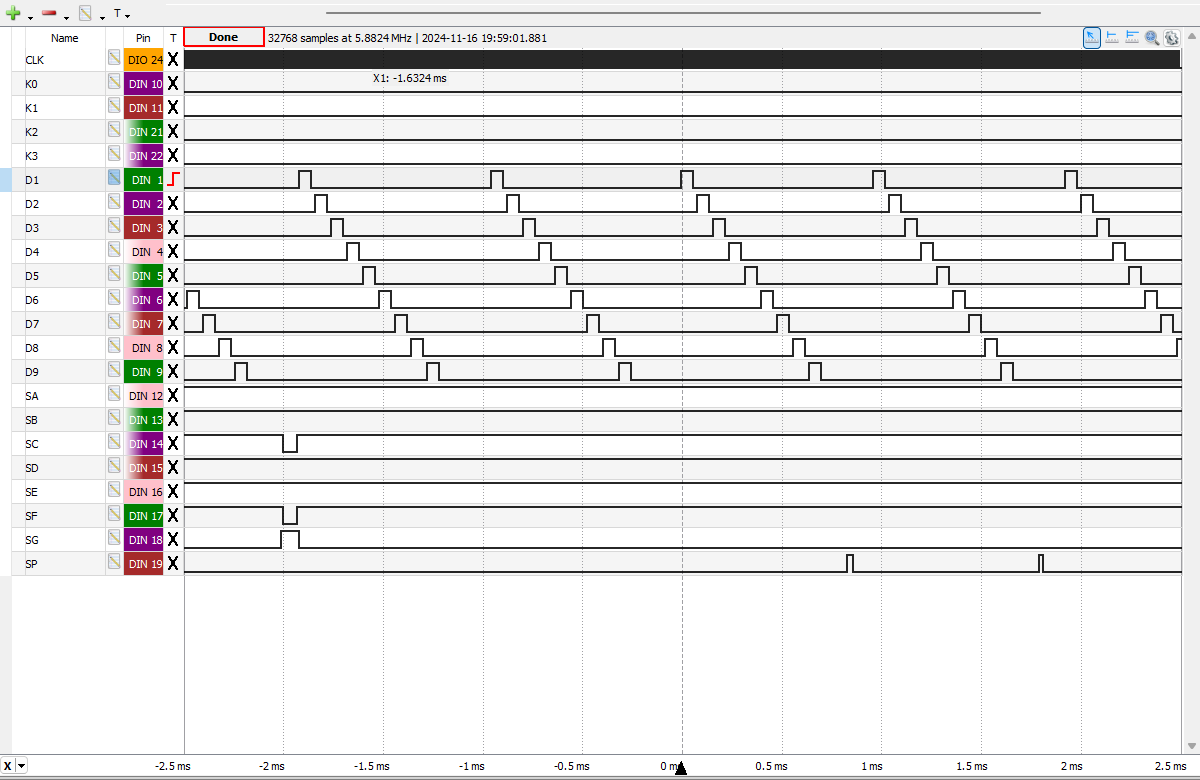

| Clock Input, Keyboard Input,
Digit Output and Segment Output Pins of the µPD943 in Test Mode
2 captured with the Digilent Digital Discovery connected to the DCM-50A Platform. µPD943 Clock Frequency at 50 kHz.  |

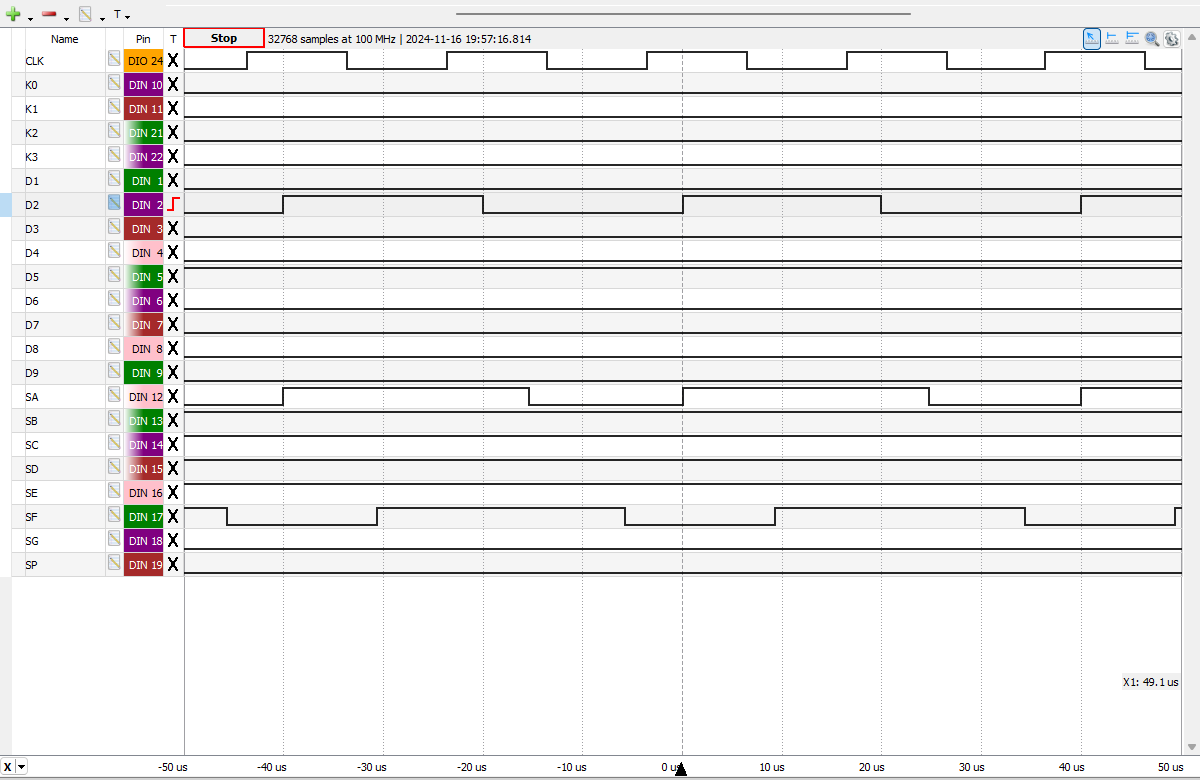

| Clock Input, Keyboard Input,
Digit Output and Segment Output Pins of the µPD943 in Test Mode
3 captured with the Digilent Digital Discovery connected to the DCM-50A Platform. µPD943 Clock Frequency at 50 kHz.  |
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, January 25, 2025. No reprints without written permission.
