Additional Pictures

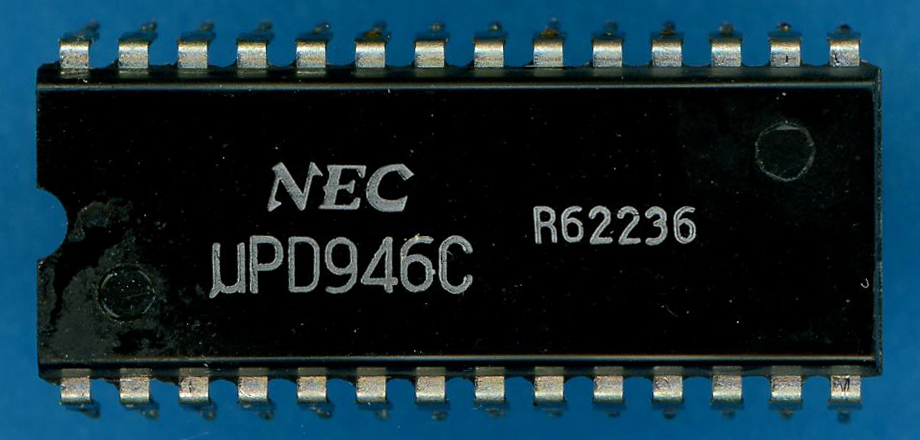

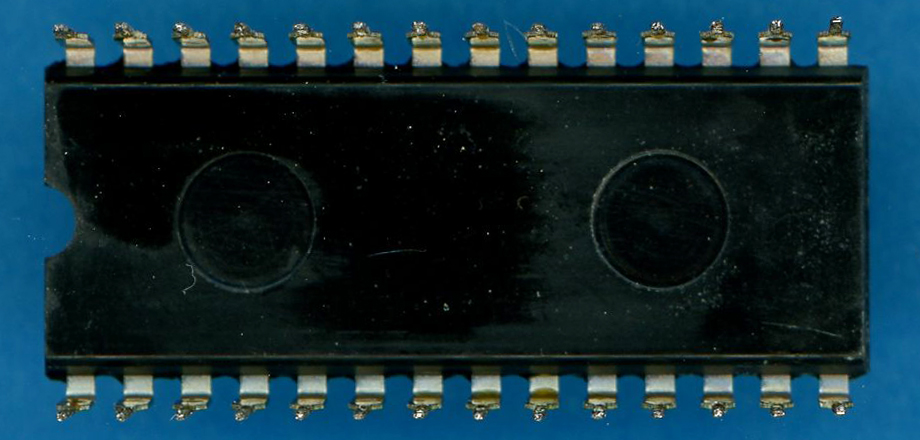

| Close-up view
of the µPD946 single-chip calculator circuit used with the Royal RSC-40. PMOS Technology, 28-pin DIP 4-bit serial Register Processor, 512*17 Bits Instruction ROM, 5*52 Bits Data SAM. Manufactured March 1976.   |

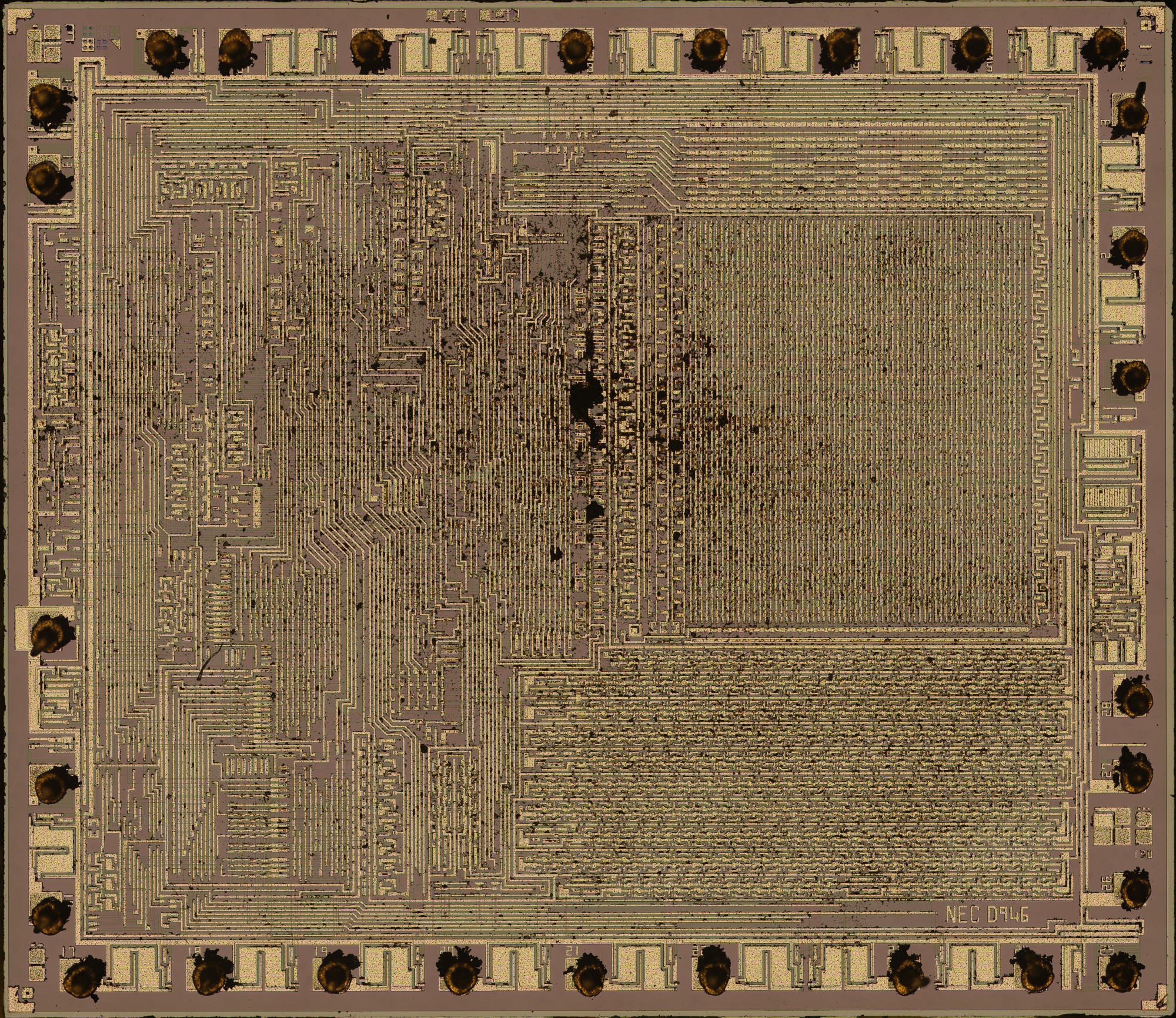

Die Photo of the
µPD946
courtesy of Sean Riddle. |
