Additional Pictures

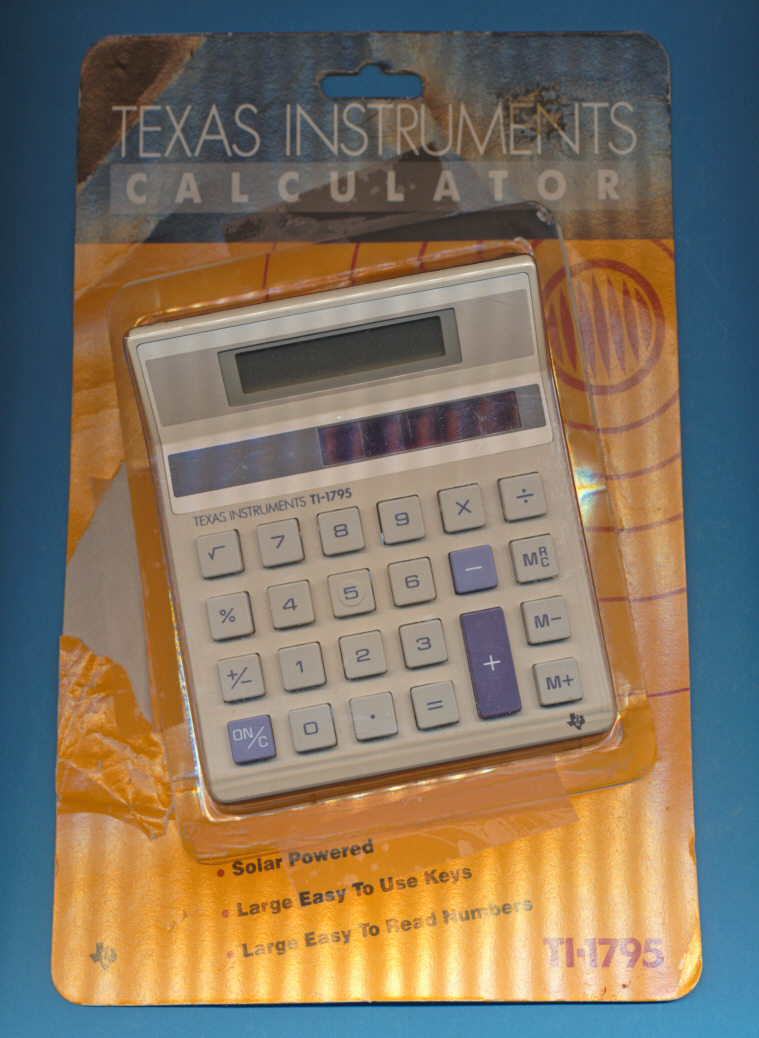

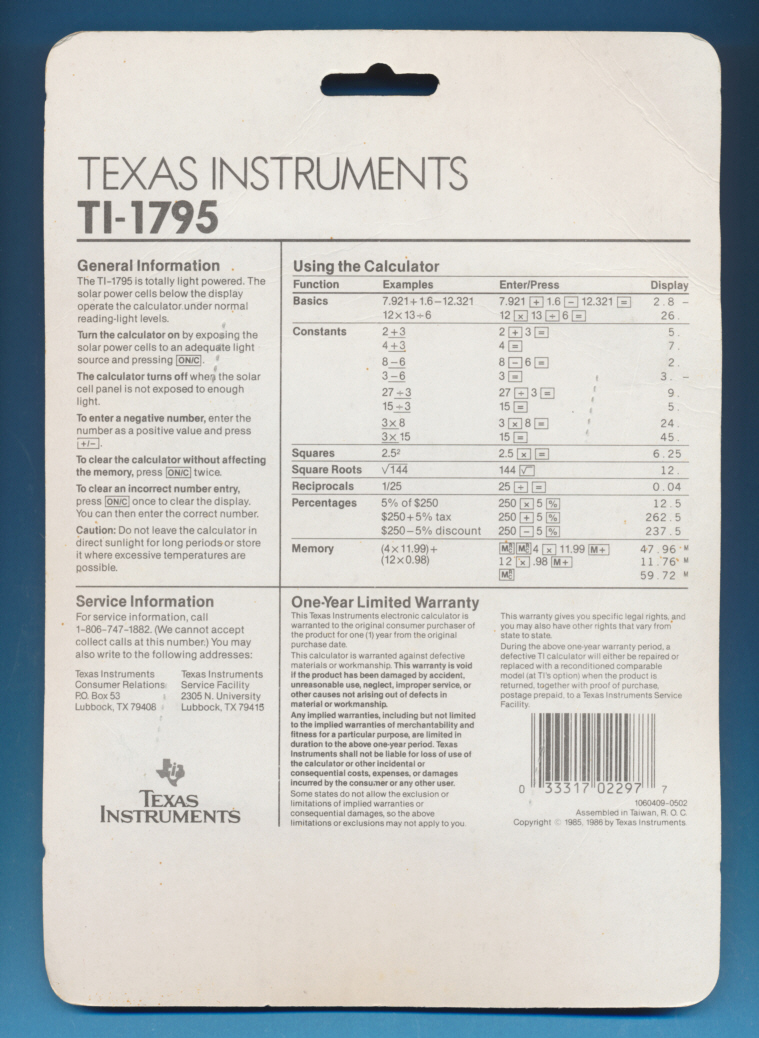

The
sales box of the
TI-1795 sold
around 1987 in the US.
  |
|
| This TI-1795 was
manufactured in October 1987 by Compal Electronics in Taiwan (Date code C-1087 » mth 10 yr 1987).
|
|

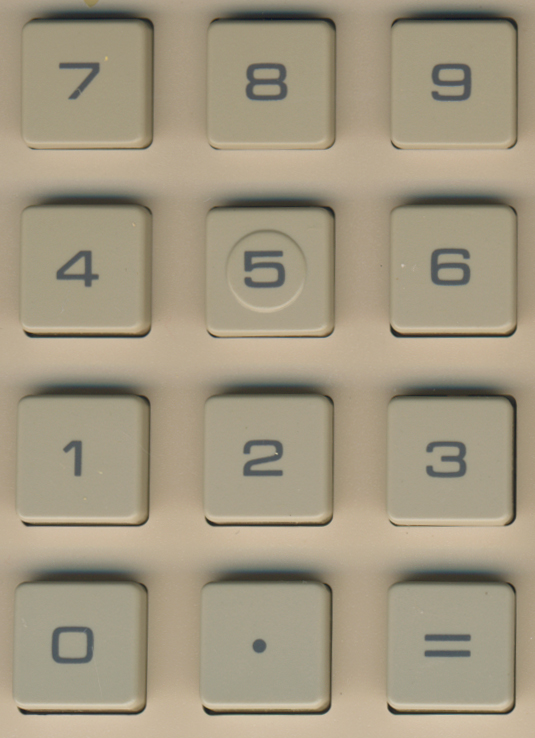

The raised
bump on keyboard key #5. |
|

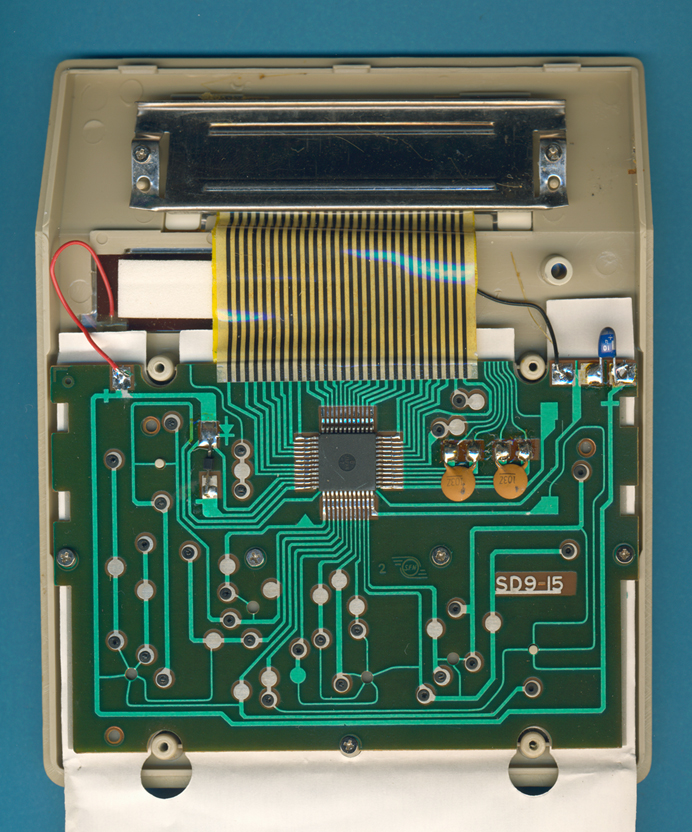

| The printed circuit board
(PCB) of the TI-1795 is centered around a Sharp LI3135MS single-chip calculator circuit.
|
|

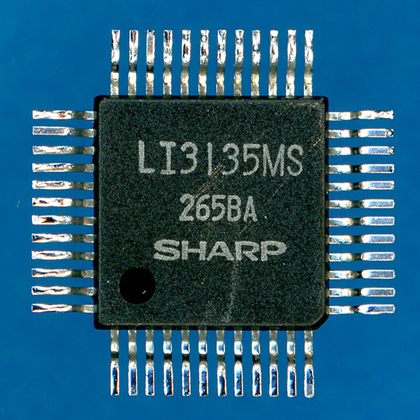

| Close-up
view of the Sharp LI3135MS single-chip calculator circuit before and after de-soldering it.   |

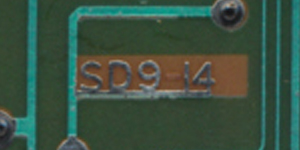

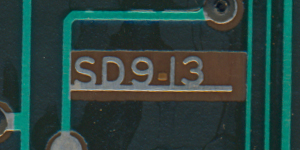

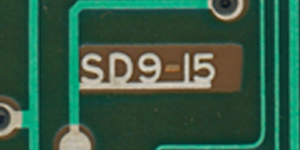

Close-up view of the PCB-Marks
of three TI-1795 manufactured in October 1987, January 1987, and July 1985 (top to bottom).    |
