Additional Pictures


The Panaplex II style display in clock mode.

The Panaplex II style display in calculator mode.
Please notice the almost destroyed segments.

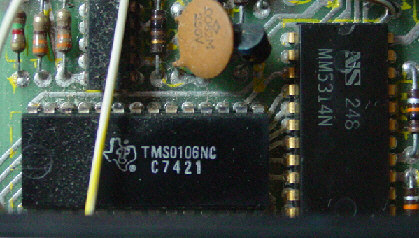

The TMS0106 calculator chip side by side with the
MM5314 clock chip manufactured by competitor
National Semiconductor.

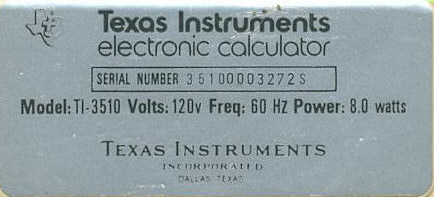

The label of the TI-3510.
