Additional Pictures

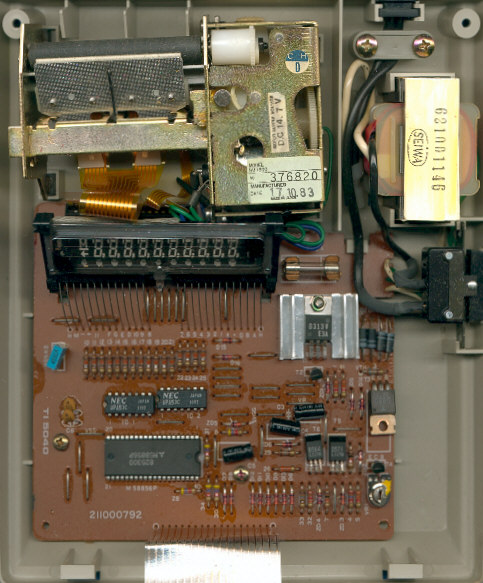

The internal construction of the TI-5040 II makes use of a Mitsubishi M58856
single-chip calculator circuit, the display, a printer assembly and power supply.

The printed circuit board (PCB) of a TI-5040 II manufactured in December 1982 looks
identical to the above unit manufactured in October 1983.
