Additional Pictures

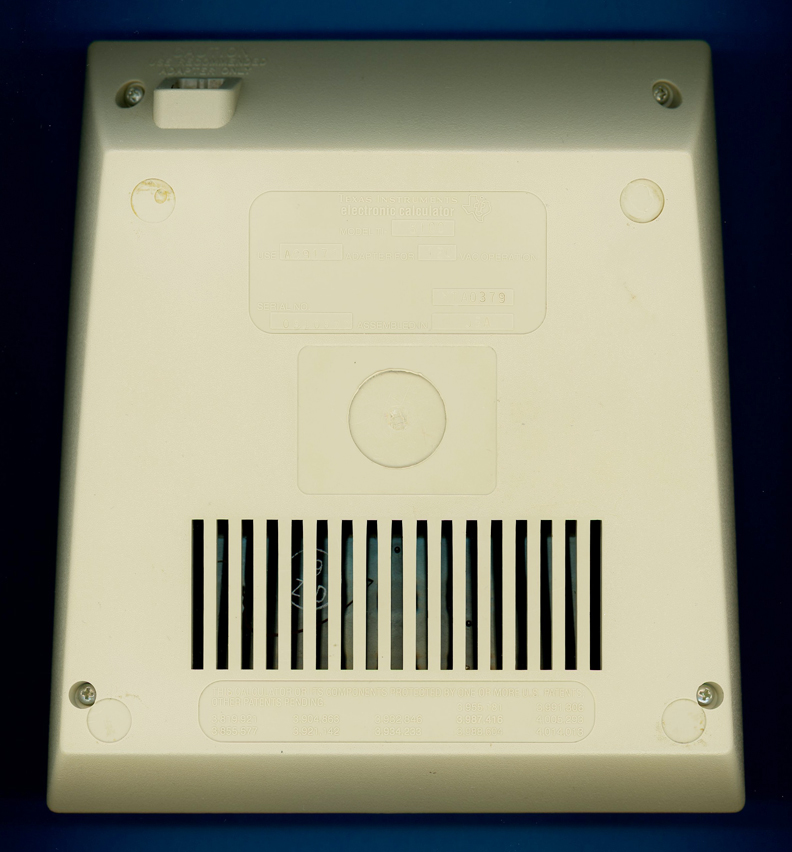

This TI-5100 was manufactured in January 1979 by
Texas Instruments in Midland, TX (Date code MTA 0379 wk 03 yr 1979).

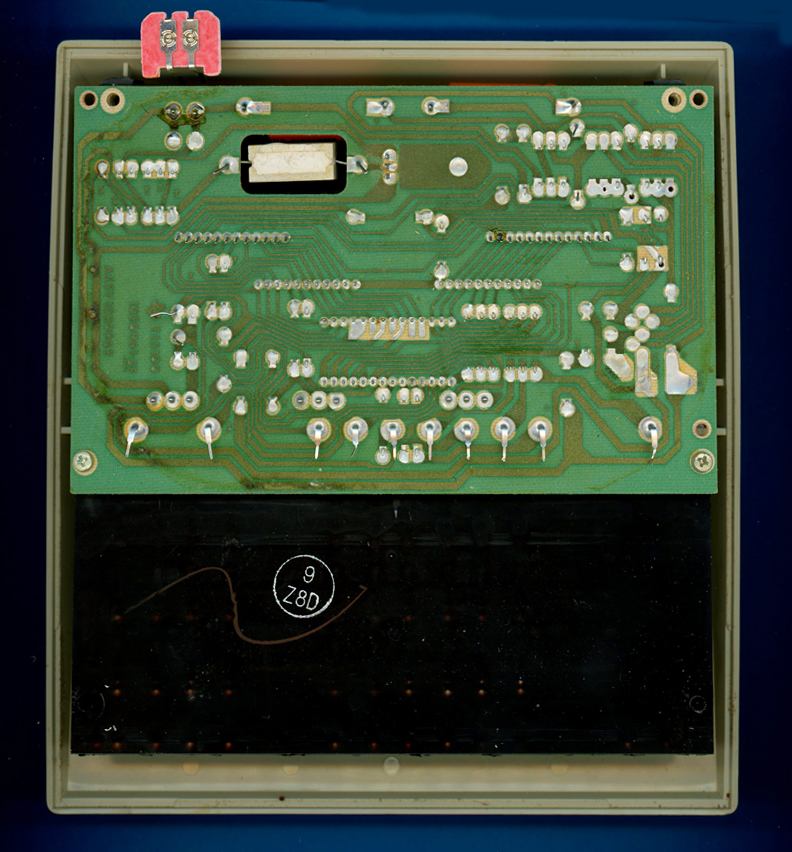

The TI-5100 with the backside of its housing removed.

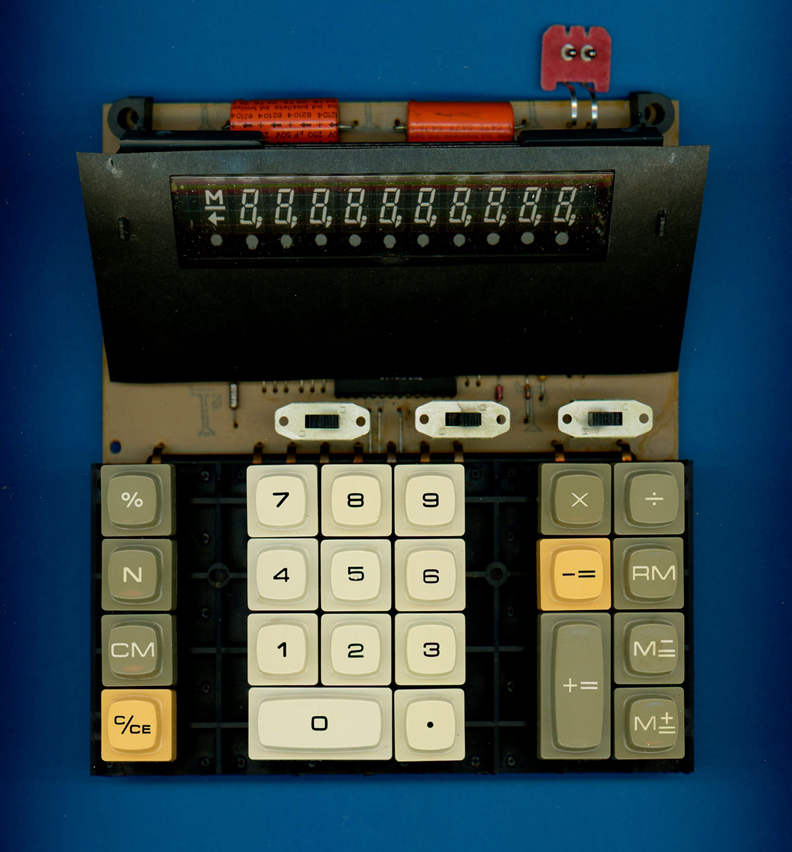

The TI-5100 with its the housing completely removed.

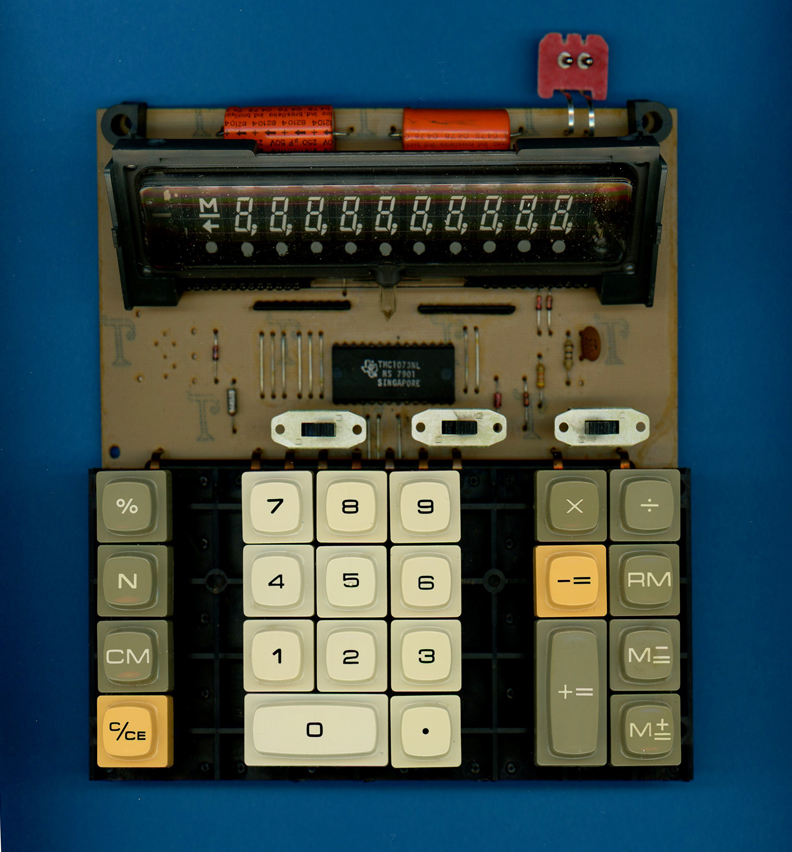

The printed circuit board (PCB) of the TI-5100 is centered around a TMC1073
single-chip calculator circuit of the TMS1070 Family.

horizontal rule

If you have additions to the above article please email:

Joerg Woerner, December 9, 2022. No reprints without written permission.
