Additional Pictures

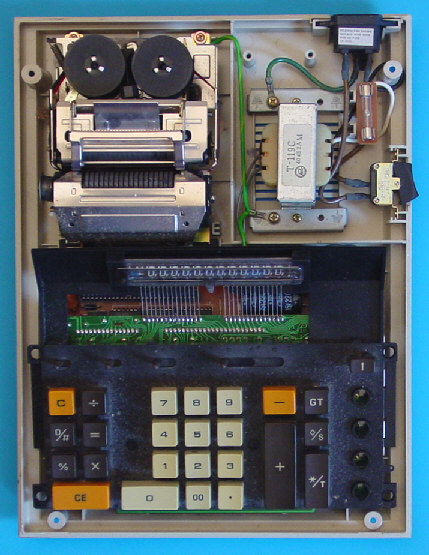

The internal construction of the TI-5217 with a clear layout.
The printer mechanism and power supply are separated
from the remaining electronics and keyboard.

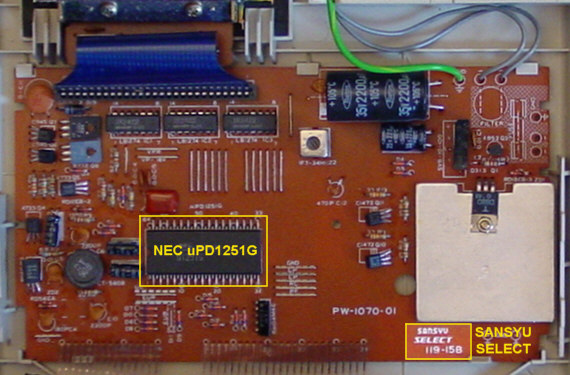

The printed circuit board (PCB) of a TI-5217 was manufactured by Sansyu.
