Additional Pictures
| Close-up view

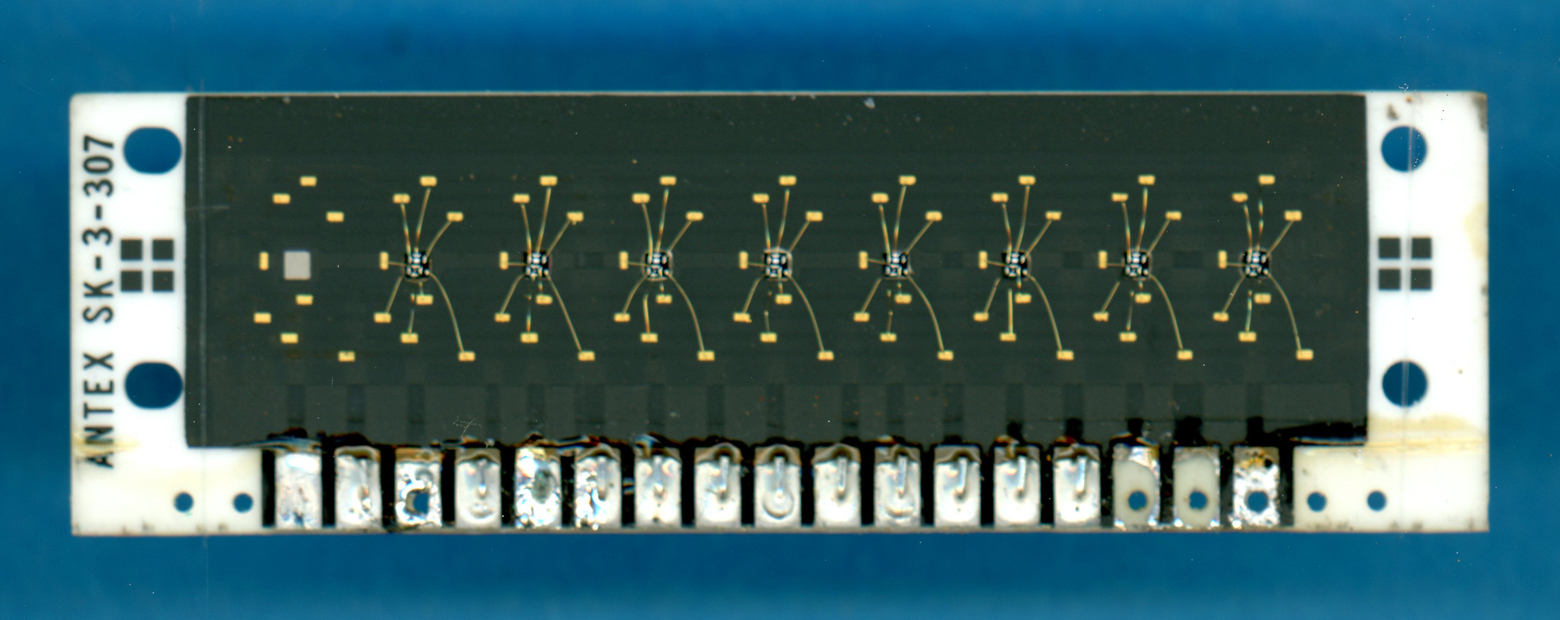

of the SK-3-307 Nine-Digit Calculator Numeric Seven-Segment LED Display. Semi-Hybrid COB Technology, Ceramics Substrate, 17-pin Package. 8 Digits, Common Cathode, 0.08" Magnified Character Height.   |
|
Close-up
view of the SK-3-307 Nine-Digit Calculator Numeric Seven-Segment LED Display
Assembly with the lens removed. |
|

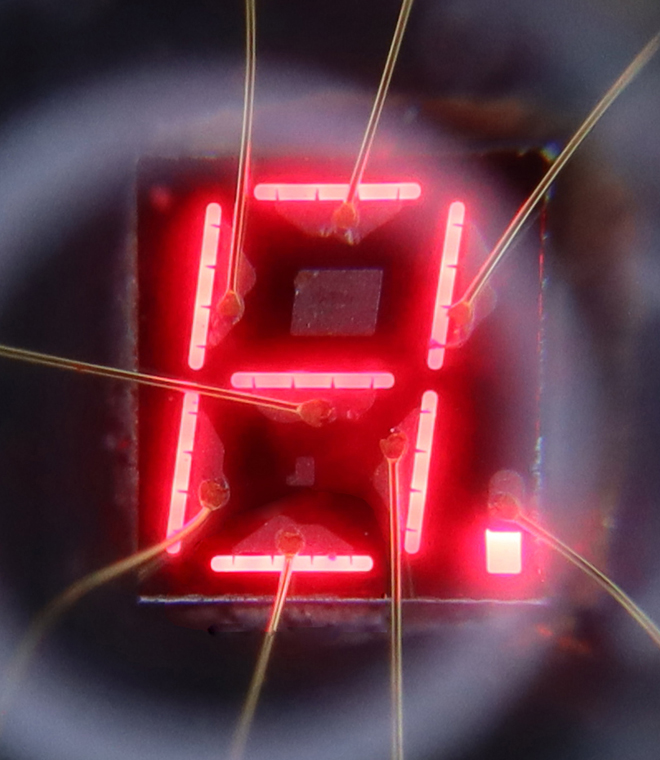

| Close-up
view of one character of the SK-3-307 Seven-Segment LED Display. One GaAsP chip for Seven Segments and Decimal Point per Digit. Common Cathode, 0.08" Magnified Character Height.  |
|

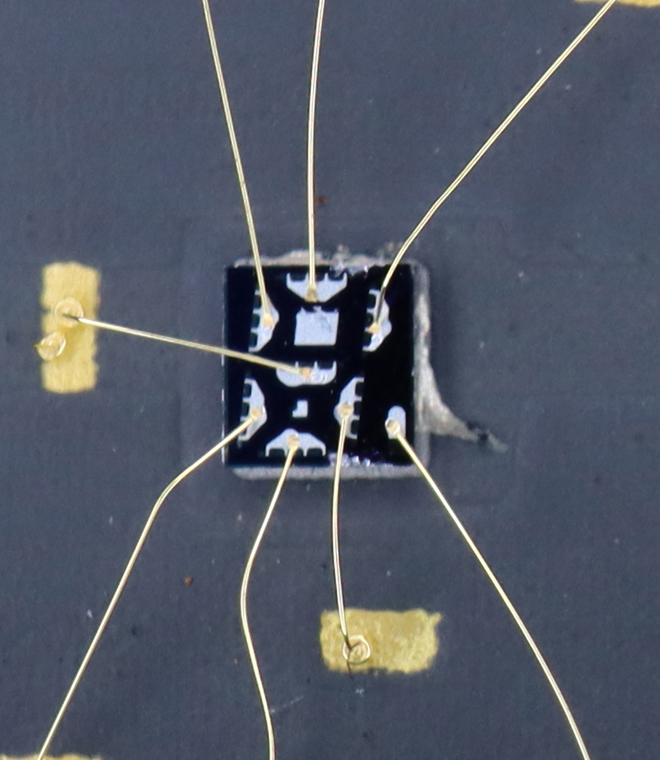

Die photo of the SK-3-307. 4,800
DPI. |
Die photo of the SK-3-307, 10 mA
per Segment. |

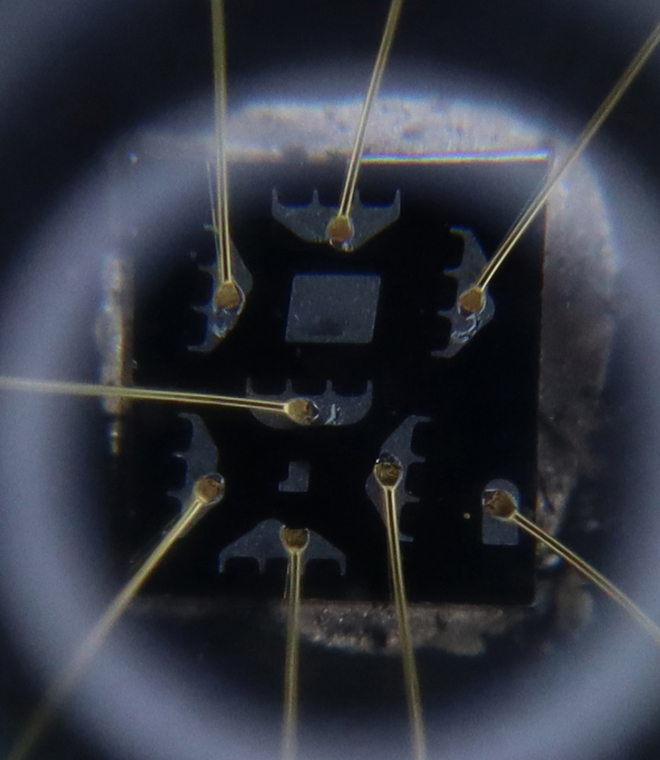

Die photo of the SK-3-307 with
Lens. |
Die photo of the SK-3-307 with
Lens, 10 mA per Segment. |
